BAE Audio 1073D Module for 500 series (B-Ware)
2.839,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.

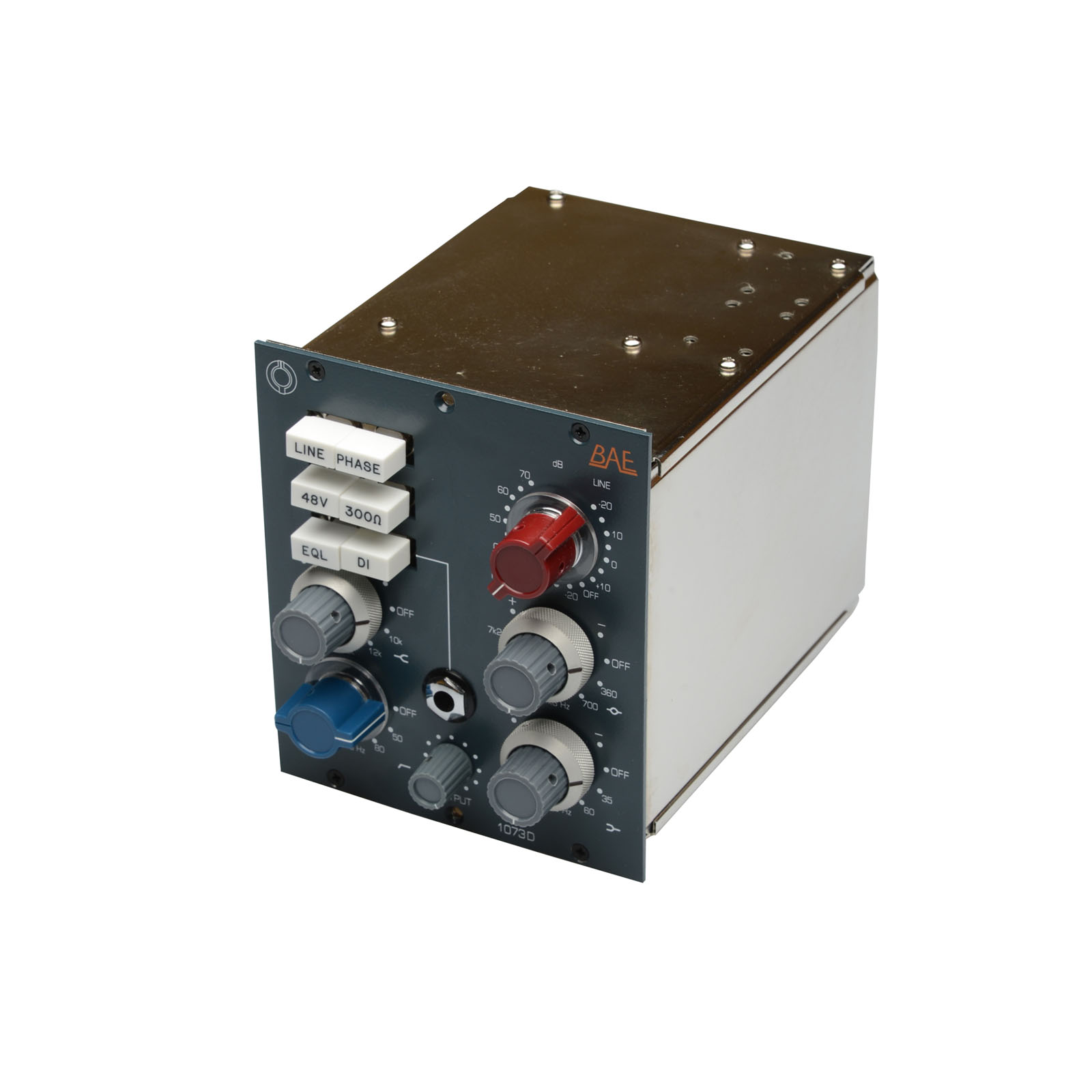

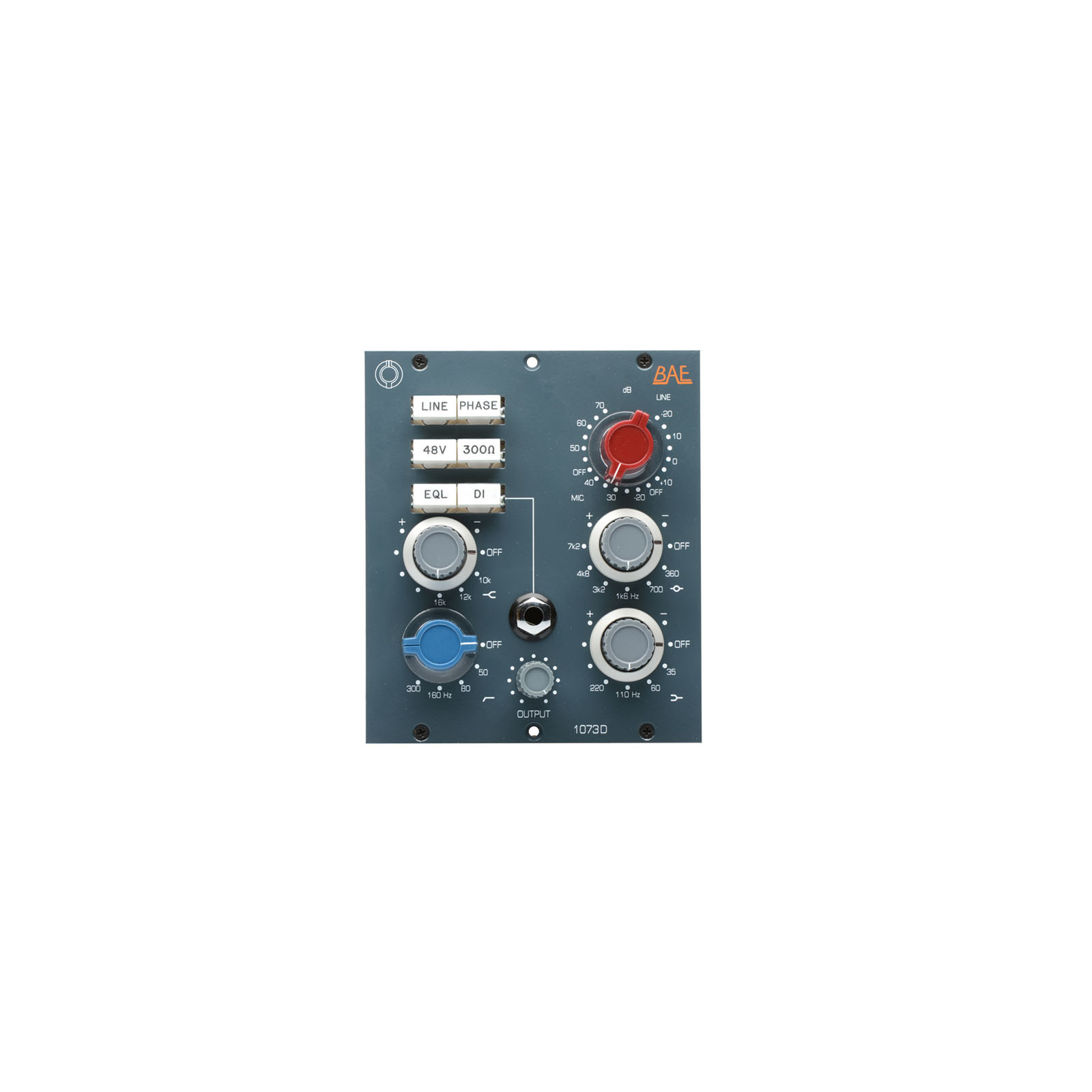

Produktinformationen "BAE Audio 1073D Module for 500 series (B-Ware)"
1073D 500 Series Module Features
The 1073D (Deluxe) is essentially a 1073 module with extra high frequencies and a direct input for the 500 series market. Built using the same exact parts as the 10 series module, the 1073D features Carnhill transformers, Elma gold plated switches and Canford wire making this the best sounding Class A mic‐pre EQ module on the block.
Because BAE did not want to compromise, the parts are such that they made this a 3 space wide module for optimal quality in contrast to building a smaller rack space version lacking the same premium components.
- High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
- Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
- Mid Range: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
- High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
- Phase Button: 180°
| Sicherheits- und Warnhinweise: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
BAE
BAE Audio
7421 Laurel Canyon Blvd, North Hollywood, CA 91605
https://www.baeaudio.com/
