Der AC 3200-II ist ein aktiver 8-Kanal-Antennencombiner für die stationären Sender der 2000er Serie. Er bündelt in großen drahtlosen Monitorsystemen die Antennensignale, so dass acht Eingangssignale komfortabel über eine gemeinsame Antenne abgestrahlt werden können. Der AC 3200-II eignet sich besonders für große Bühnenproduktionen, bei denen es auf eine sichere Versorgung auch in größerer Reichweite ankommt. In Vielkanalanlagen ist er ein unentbehrliches Werkzeug, um störende Intermodulationen zwischen mehreren Sendekanälen effektiv zu unterdrücken. Er verarbeitet dank seiner linearen Endstufen Eingangssignale bis zu 100 mW ohne Verluste. Anzeigen für jeden Eingangskanal geben dem Nutzer eine schnelle Übersicht über den Betriebszustand.

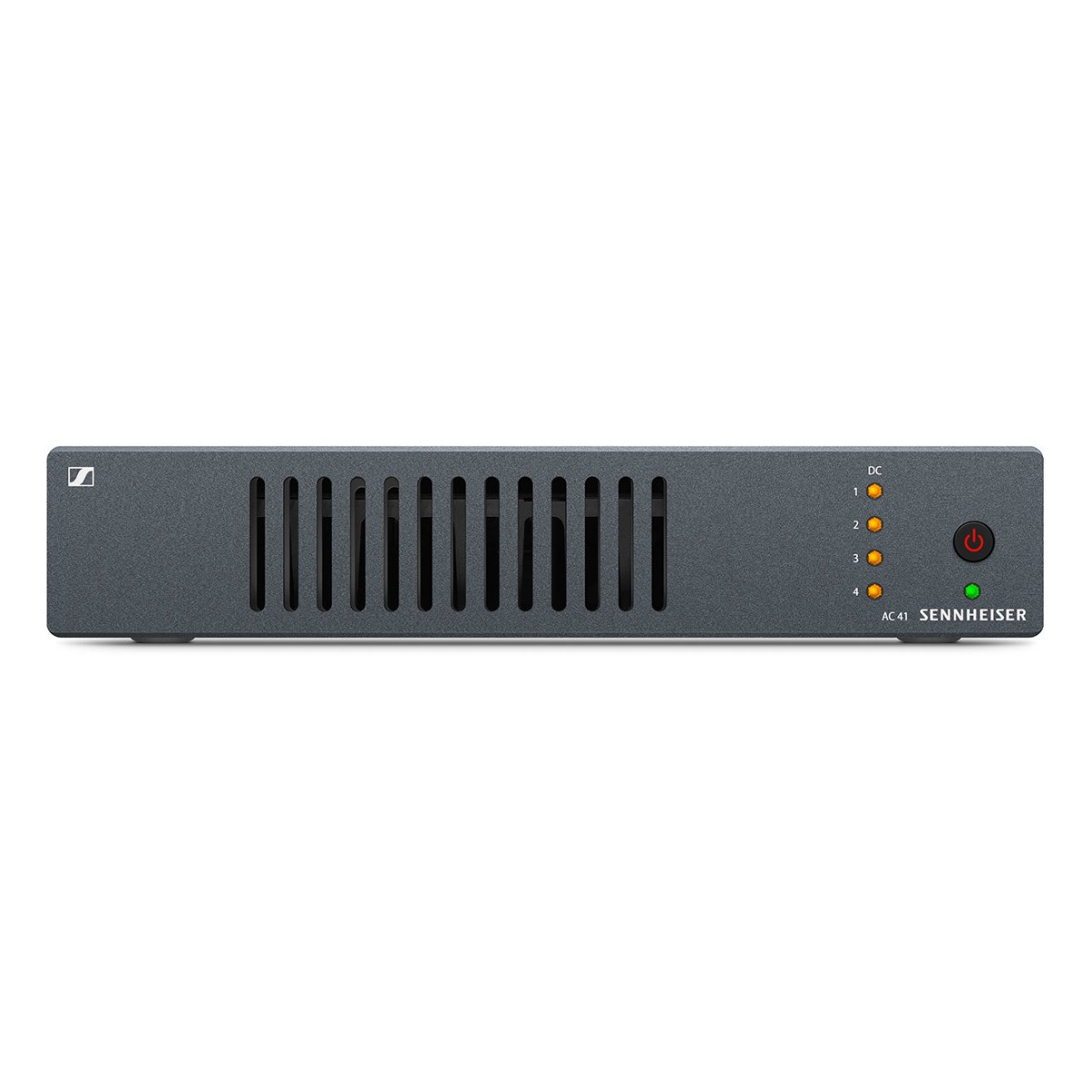

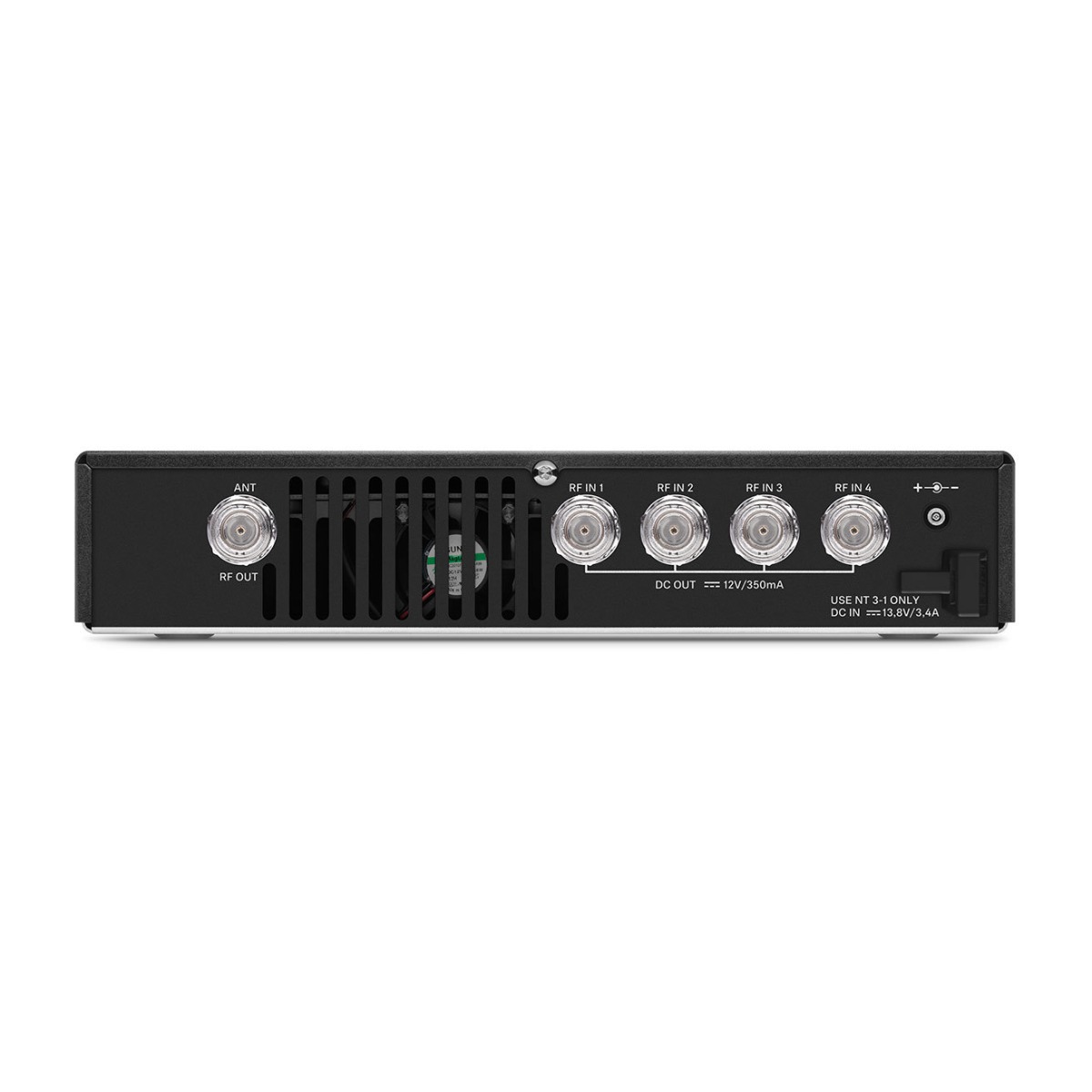

Aktiver Antennen-Kombiner für evolution wireless G4 Systeme. Der AC 41 betreibt bis zu vier Stereosender der ew-Serie mit einer gemeinsamen Antenne. Die Spannungsversorgung der SR IEM G4 Sender erfolgt vom Netzteil NT 3-1 (im Lieferumfang des SR IEM G4) über die BNC-Kabel und macht somit den Einsatz zusätzlicher Netzteile obsolet.

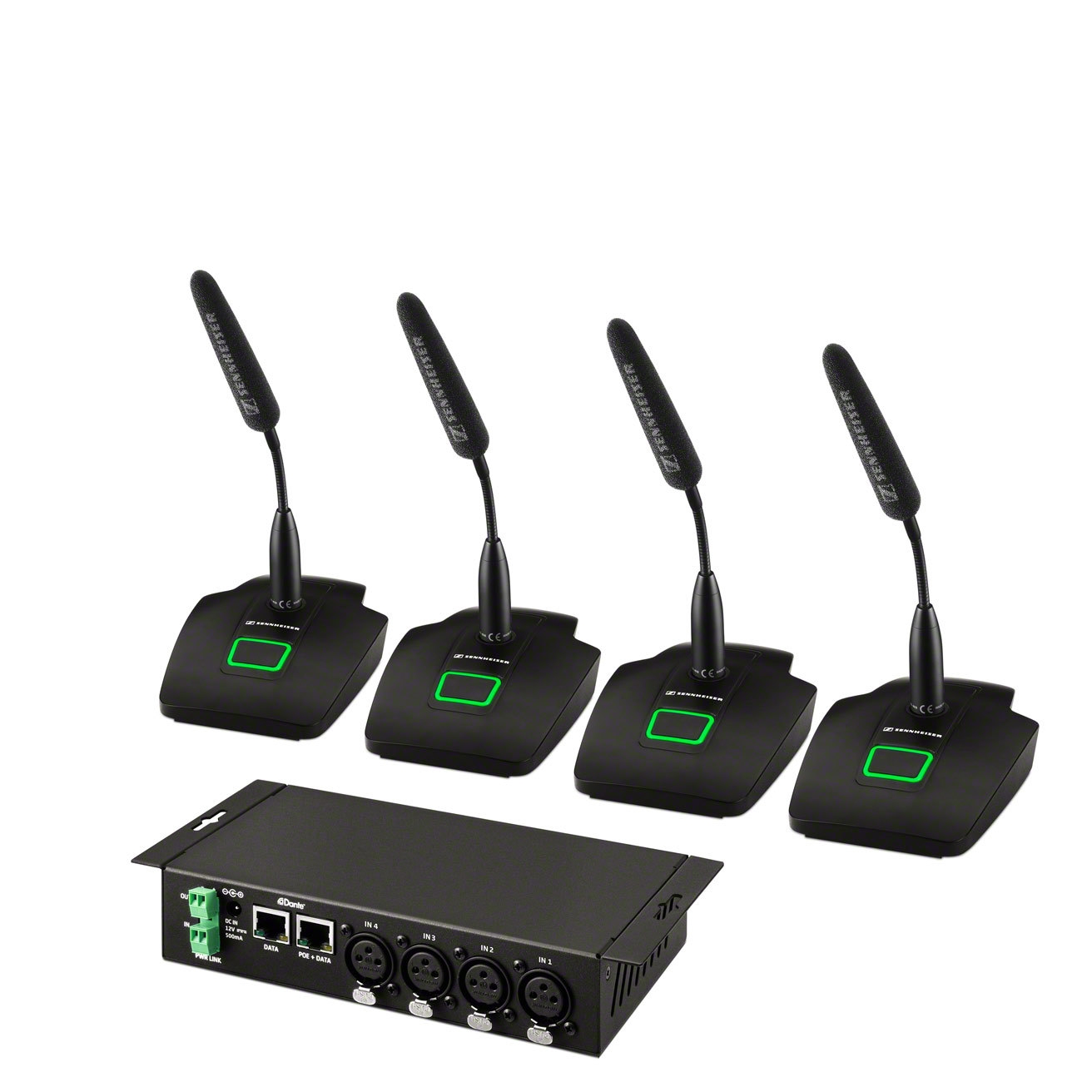

Overview The MAT 133-S is a rugged and unobtrusively designed table stand. It provides a stable ground for the metal gooseneck MZH 3015 with a length of 150 mm for use with the ME 34, ME 35 and ME 36 microphone heads. The rugged gooseneck is fitted with a balanced, floating XLR-3 output, enabling the microphone to be powered by the SL DI 4 XLR.The ME 36 is a condenser microphone capsule. This mini shotgun microphone features for an outstanding background noise rejection.The SL DI 4 XLR four input Dante-preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR. Features Highest speech-intelliibility Phantom power via PoE Remote controllable gain level Daisy-chaining possible What's in the box? 1 SLDI 4 XLR 4 MAT 133-S 4 MZH 3015 4 ME 36

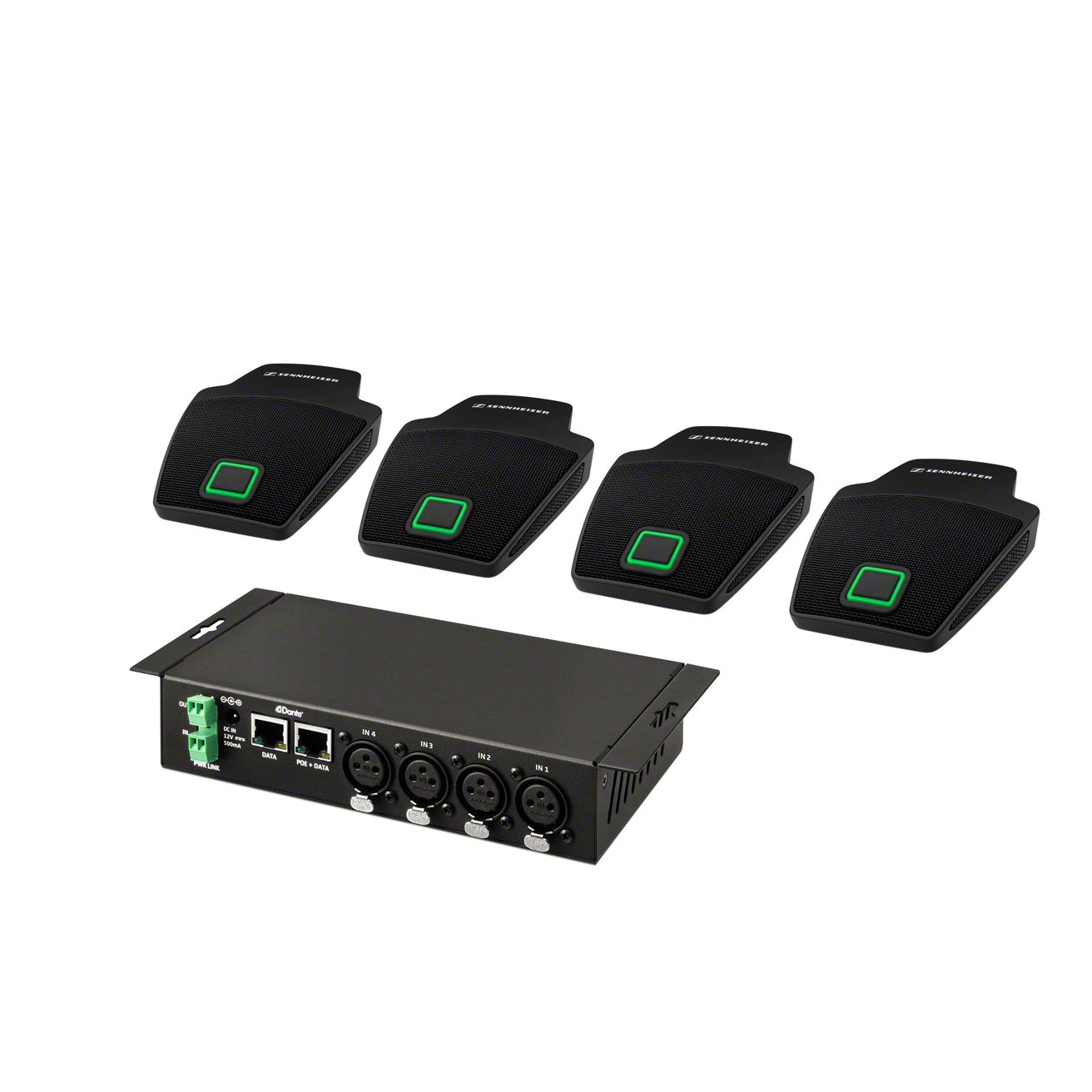

Overview The MEB 114-S is a sturdy on-table boundary layer microphone that constitutes an improvement for any conferencing system. It features a programmable microphone button and a bi-color LED ring for status indication. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114-S ensures the best speech intelligibility.The SL DI 4 XLR four input Dante™ preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante™ system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR. Features Great speech-intelliibility Phantom power via PoE Remote controllable gain level Daisy-chaining possible What's in the box? 1 SLDI 4 XLR 4 MEB 114-S

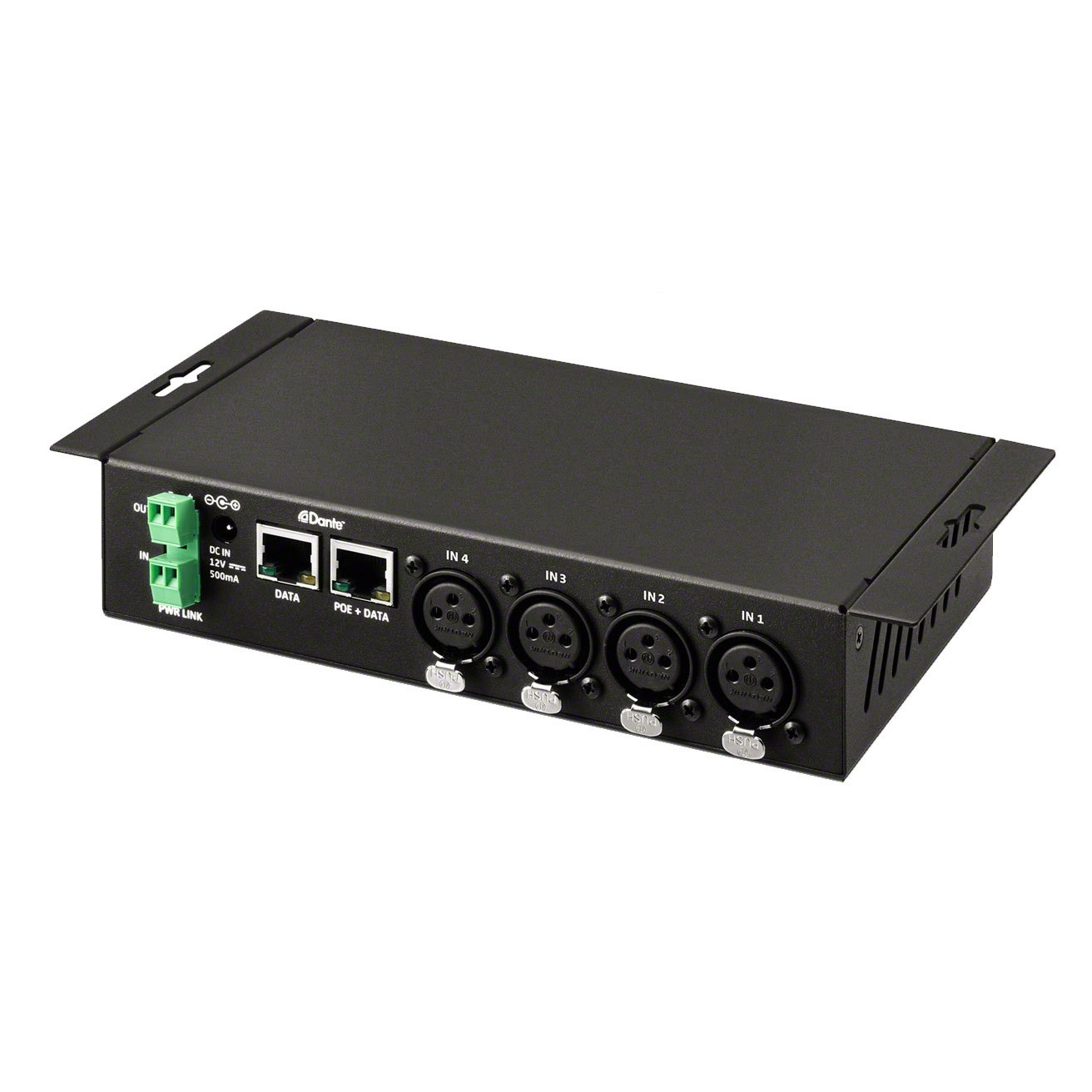

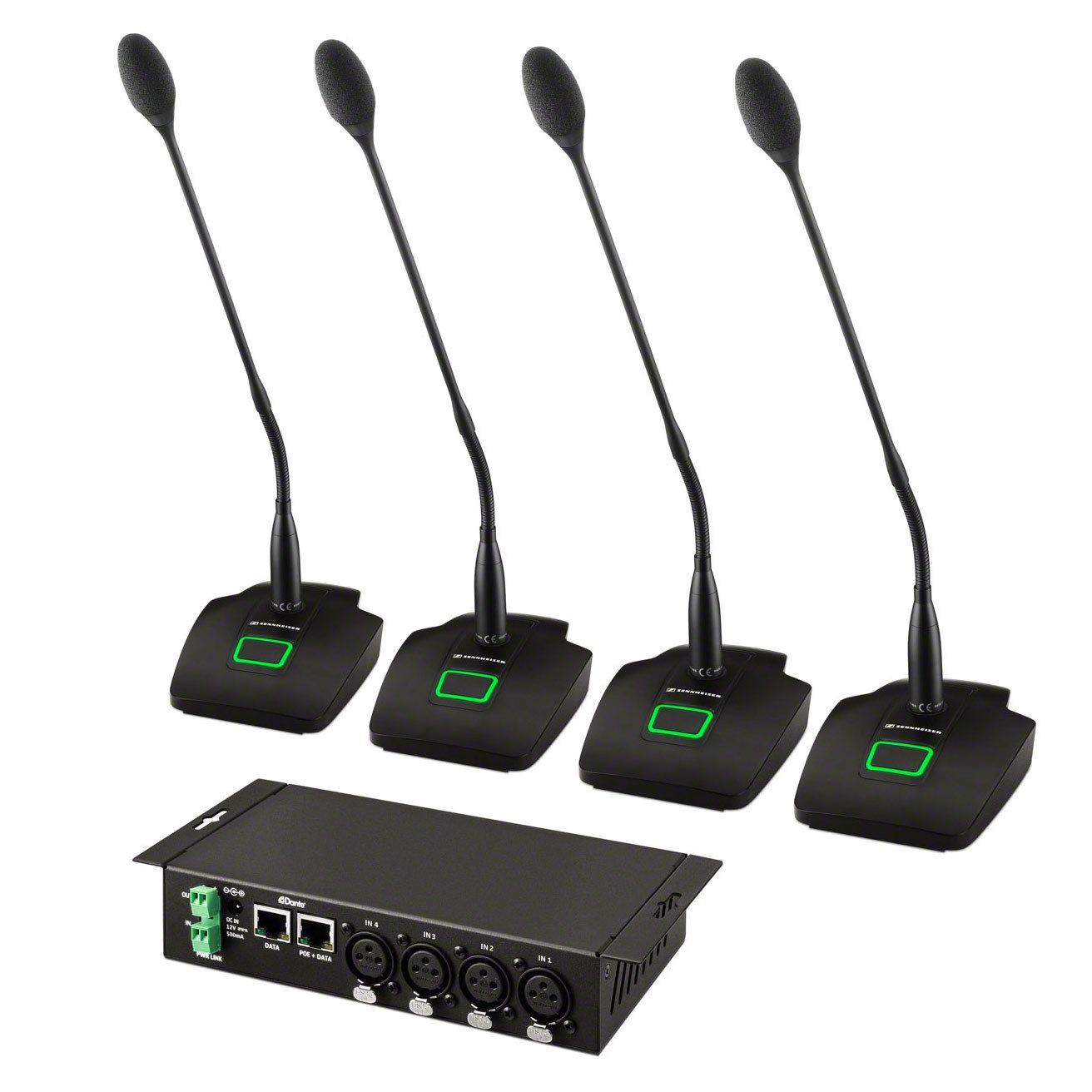

Overview: The MAT 133-S with the MEG 14-40 is as versatile as it is easy to operate. Experience clearly structured meetings and discussions as the intuitive handling will lead the focus on the content – not the technology. The proven Sennheiser KE 10 capsule provides best speech intelligibility.Powered by the SL DI 4 XLR with just a standard XLR 3 cable, the microphone is integrated in a bigger setup with a finger snap and makes even spontaneous discussion setups possible.The SL DI 4 XLR four input Dante™ preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante™ system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR. Features: Great speech-intellibility Phantom power via PoE Remote controllable gain level Daisy-chaining possible What's in the box? 1 SL DI 4 XLR 4 MAT 133-S 4 MEG 14-40
Overview The MAT 133-S with the MEG 14-40 is as versatile as it is easy to operate. Experience clearly structured meetings and discussions as the intuitive handling will lead the focus on the content – not the technology. The proven Sennheiser KE 10 capsule provides best speech intelligibility.Powered by the SL DI 4 XLR with just a standard XLR 3 cable, the microphone is integrated in a bigger setup with a finger snap and makes even spontaneous discussion setups possible.The SL DI 4 XLR four input Dante™ preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante™ system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR. Features Great speech-intellibility Phantom power via PoE Remote controllable gain level Daisy-chaining possible What's in the box? 1 SL DI 4 XLR 4 MAT 133-S 4 MEG 14-40
General Description The EM 3731/3732-II series is characterized by high transmission reliability, exceptional audio quality and simple operation. A switching bandwidth of up to 184 MHz, more than double that of its predecessors, combined with a range of connection options guarantee optimal flexibility for daily use. The integrated Ethernet connection means that the receivers can be linked into any network. The AES3/EBU digital audio interface facilitates a direct connection to digital mixing consoles. Sennheiser's "Wireless Systems Manager" (WSM) software allows you to monitor and control all receiver operating statuses remotely. In addition, this versatile software now lets you reset the channel allocation at any time and store it as a "Scene". A new innovative WSM feature for multi-channel operation is the immediate identification of the channel allocated to each receiver at the press of a button. A high-contrast display and intuitive user interface complete the scope of features of this high-quality receiver. The EM 3732-II is available in L, N and P frequency variants. Features Up to 184 MHz switching bandwidth Digital AES 3 audio output with external word clock synchronisation Integrated antenna splitter for daisy-chaining up to eight devices Intuitive user interface with OLED display Network integration via ethernet for use of the WSM software on Macs and PCs DSP-based HiDyn plus and HDX expander Transformer balanced audio outputs Scanning function Frequencies adjustable in steps of 5 kHz Squelch setting displayed continously Command audio output ( EM 3732 COM-II only) Delivery Includes EM 3731-II or EM 3732-II or EM 3732 COM-II 3 mains cables (with EU, UK and US plugs) 2 BNC antenna cables (50 Ω) for daisy-chaining 1 BNC word clock cable (75 Ω) for daisy-chaining 4 rubber feet 1 RJ 45 ethernet cable 2 antennas 1 instruction manual 1 CD-ROM with the Sennheiser Wireless Systems Manager Software 1 frequency table Technical Data RF frequency range L: 470 – 638 MHz, N: 614 – 798 MHz, P: 776 – 960 MHz Switching bandwidth Up to 184 MHz Receiving frequency 6 frequency banks with up to 59 factory-preset frequencies each, 1 frequency bank with up to 60 freely selectable frequencies (tunable in steps of 5 kHz) Adjacent channel rejection typ. 75 dB / +-400 kHz, typ. 80 dB /+-800 kHz Squelch threshold 13 steps (0 ... 30 μV) Intermodulation spacing >= 80 dB Antenna connector 2 BNC connectors (50 Ω) Cascadable 2 BNC connectors (50 Ω) Gain 0 dB ±0,5 dB (ref. to antenna input) Compander Sennheiser HiDyn plus emulated by DSP, Latency <= 1.9 ms Frequency response 40...20000 Hz Nominal deviation +-40 kHz Peak deviation +-56 kHz Signal-to-noise ratio ≥ 118 dB(A) (analogue AF OUT), 140 dB (AES3 audio out) THD, total harmonic distortion ≤ 0,3 % Output voltage +18 dBu to –10 dBu, adjustable in steps of 1 dB (transformer balanced) Audio-XLR connector analogue: XLR-3, digital AES3: XLR-3 Sample Rates: 44.1, 48, 88.2, 96 kHz, 24 Bit Booster 12 V DC, 2 x 200 mA, short-circuit-proof Power supply 100 - 240 V AC, 50/60 Hz Power consumption max. 50VA, 20 W (AC) Operating temperature –10 °C ... +55 °C Storage temperature -25 °C ... +70 °C Dimensions 436 x 44 x 250 mm Weight ca. 4080 g
760 - 960 MHz36 MHz Schaltbandbreite16 schaltbare Frequenzen Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.
General Description Great technology throughout the microphone system make this system the ideal singing partner. The feedback-resistant, super-cardioid microphone capsule reproduces vocals prominently and with a smooth response. The powerful hand-held transmitter shows all important information on its large graphic display. Its optional rechargeable batteries can be recharged just by placing the handheld in the optional charging station. Features Sturdy metal housing (transmitter and receiver 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception Enhanced frequency bank system with up to 32 compatible frequencies Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems High-quality true diversity reception Pilot tone squelch for eliminating RF interference when transmitter is turned off Automatic frequency scan feature searches for available frequencies Enhanced AF frequency range Increased range for audio sensitivity Wireless synchronization of transmitter parameter from receiver User-friendly menu operation with more control options Illuminated graphic display, receiver also shows transmitter settings Auto-Lock function avoids accidental changing of settings HDX compander for crystal-clear sound Transmitter feature battery indicatation in 4 steps, also shown on receiver display Easy-exchangeable microphone modules from evolution series Integrated Equalizer and Soundcheck mode Contacts for recharging BA 2015 accupack directly in the transmitter Wide range of accessories adapts the system to any requirement Delivery Includes 1 EM 500 G3 rack-mount receiver 1 SKM 500-945 G3 handheld transmitter (super-cardioid, dynamic) 1 MZQ 1 microphone clip 1 GA 3 rack mount 1 NT 2 power supply unit 2 antennas 2 AA size batteries Operating instructions Technical Data RF frequency range 516 ..... 865 MHz Transmission/receiving frequencies 1680 Presets 32 Switching bandwidth 42 MHz Peak deviation +/- 48 kHz Compander HDX Frequency response (microphone) 80.....18000 Hz Signal-to-noise ratio > 115 dB(A) THD, total harmonic distortion < 0,9 % In compliance with ETS 300422 , ETS 300445 , CE , FCC Antenna connector 2 BNC, 50 Ohm Audio-XLR connector 6,3 mm Audio output level (balanced) XLR: +18 dBu max Audio output level (unbalanced) Jack: +10 dBu max Dimensions (Receiver) 212 x 202 x 43 mm Weight (Receiver) 980 g RF output power 10/30 mW Operating time (transmitter) >8 h Dimensions (Transmitter) d= 50 mm, l= 265 mm Weight (Transmitter) 450 g Transducer; Microphone type dynamic AF sensitivity 1,6 mV/Pa Sound pressure level (SPL) 154 dB(SPL) max. Pick-up pattern super-cardioid Varients: EW 500-945 G3-A:Frequency range 516...558 MHz EW 500-945 G3-G:Frequency range 566...608 MHz EW 500-945 G3-B:Frequency range 626...668 MHz EW 500-945 G3-C:Frequency range 734...776 MHz EW 500-945 G3-D:Frequency range 780...822 MHz EW 500-945 G3-E:Frequency range 823...865 MHz

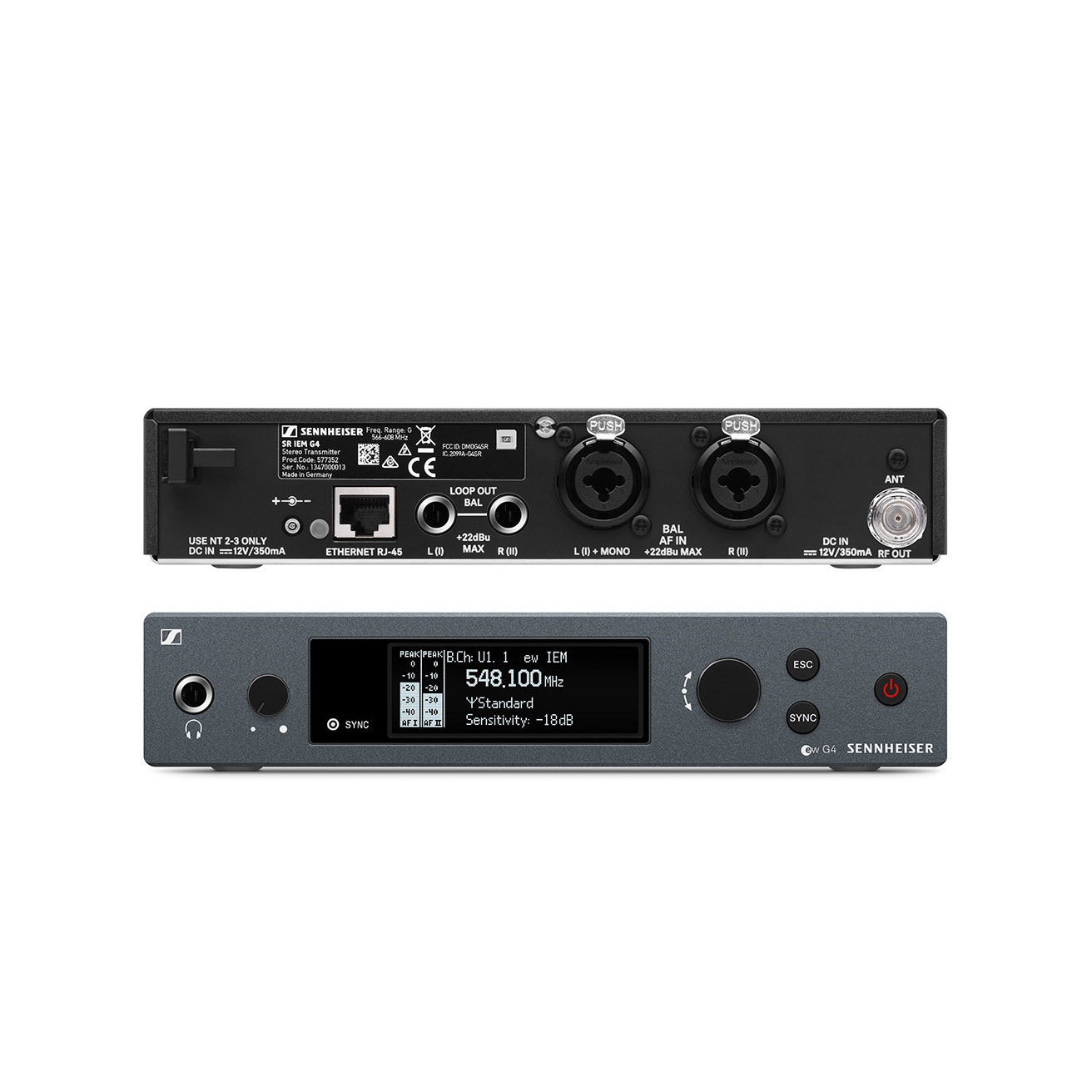

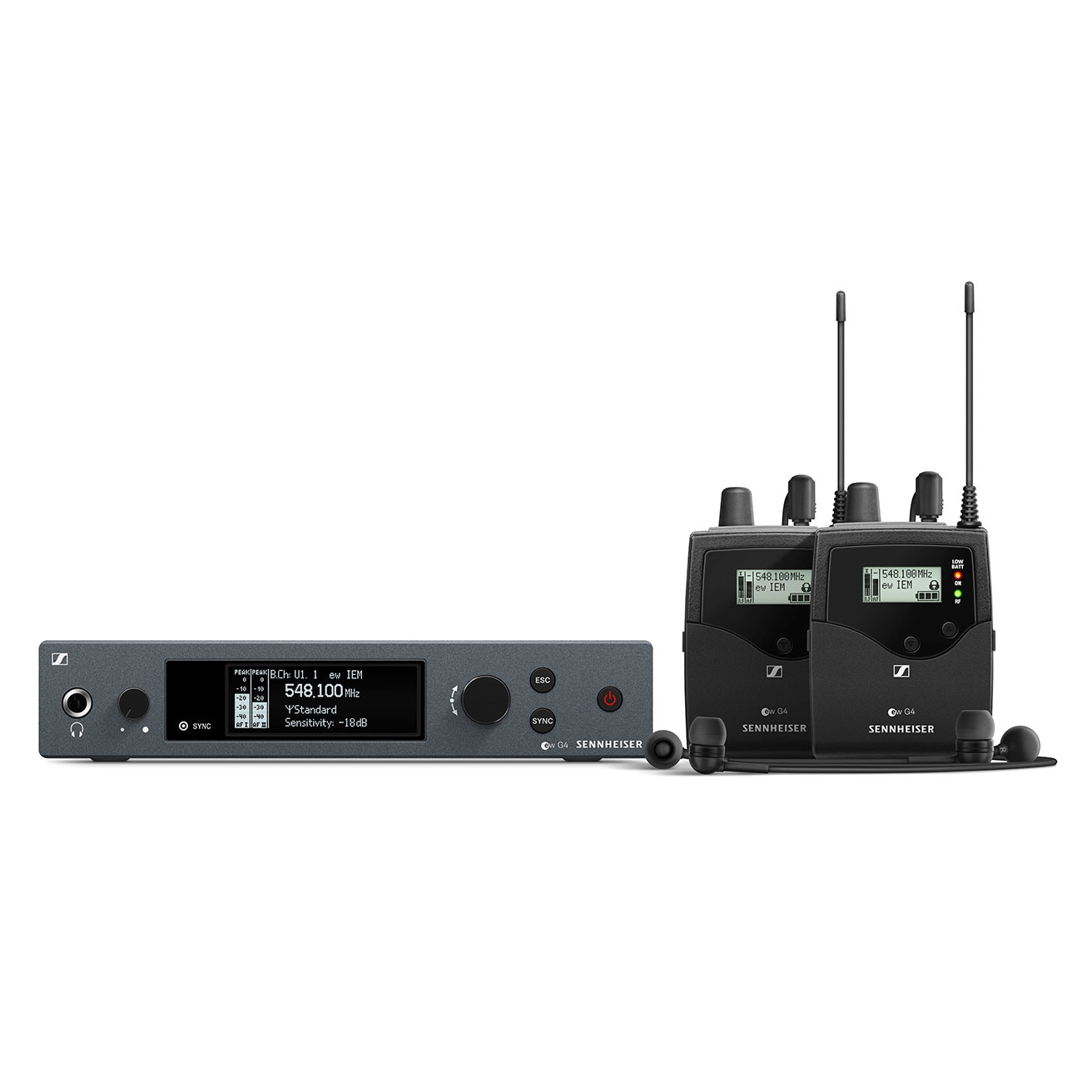

Volle Kontrolle über Ihre Leistung - überall und jeden Tag. Die G4 In-Ear Monitoring Sets machen Ihren Auftritt zu einem außergewöhnlichen Erlebnis - nicht nur für Ihr Publikum, sondern auch für Sie! Features: Entwickelt für professionellen Live-Sound: Robustes drahtloses All-in-One-System für In-Earm Anwendungen Robuster Taschenempfänger und verlässliche In-Ear-Monitoring IE 4 Ohrhörer liefern Klarheit über das gesamte Frequenzspektrum für den täglichen Nutzen auf der Bühne Stereo-Sender in halber Rackbreite in einem Vollmetallgehäuse mit kontrastreichem OLED-Display Leichte und flexible drahtlose Synchronisation zwischen Sender und Empfänger über Infrarot Kompatibel mit der Sennheiser Steuerungssoftware WSM für flexible Frequenzzuweisung und -überwachung Bis zu 16 kompatible Kanäle Bis zu 42 MHz Bandbreite mit 1680 wählbaren Frequenzen, voll abstimmbar im UHF-Bereich Reichweite: bis zu 100 Meter Hohe Sendeleistung (bis zu 50 mW), abhängig von länderspezifischen Vorschriften

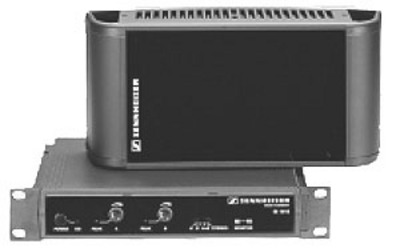

Sennheiser SI 1015The SI 1015 wideband modulator uses the new extremely reliable carrier frequencies 2.3 and 2.8 MHz and can be operated in single-channel, two-channel and stereo modes. The modulator is fitted with two balanced XLR-3 audio inputs and IR monitoring diodes. It can be used with SZI 1015 and SZI 1029 radiators, the signals for the radiators are available at two RF sockets, or, alternatively, at a barrier strip. (N.B.: The barrier strip – which also powers the connected radiators – can only be used with SZI 1015 and SZI 1029-24 radiators.)Features:2-Watt radiator and modulator for the new carrier frequencies 2.3 and 2.8 MHz2-Watt radiator with a maximum coverage area of 400 m²chaining the signal to additional radiatorsModulator for single-channel, two-channel or stereo operation, features monitoring diodes and a separate barrier strip with RF and DC outputs for connecting radiatorsWide range of mounting accessories for the radiator, modulator comes complete with rack-mount earsTechnical Specifications:Modulation FMNominal deviation +/- 40 kHzCarrier frequencies 2,3 MHz / 2,8 MHzImpedance 600 OhmOperating voltage (mains) 24-30 V DCCurrent consumption <140 mADimensions 1/2 19", 1 U (224x44x173 mm)Weight 800 gAudio-XLR connector 2 x XLR-3 symet.RF output 2 x BNCPeak deviation +/- 56 kHzInput voltage range 10 mV.....5 V (Line)
Die Spectera-Basisstation ist ein 1-HE-Hardwaregerät, das bis zu 64 Kanäle (32 Eingänge/32 Ausgänge) bietet und bis zu zwei Breitband-HF-Träger nutzt, um die gesamte drahtlose Übertragung der Einheit zu ermöglichen.Die Spectera Base Station verfügt über redundantes Dante und optional redundantes MADI und ermöglicht so eine nahtlose Integration in Ihr Audionetzwerk. Zusätzliche Antennen können für Redundanz, erweiterte Zonenabdeckung oder zusätzliche Frequenzkapazität hinzugefügt werden. Die Spectera Base Station unterstützt Abtastraten von 48 kHz und 96 kHz und bietet individuelle Abtastratenkonverter für alle Audioschnittstellen und Wordclock-Ein-/Ausgänge. Die Base Station muss mit einer regionalen Lizenz aktiviert werden.Basisstation benötigt optionale kostenfreie Regionslizenzen für mehr Infos bitte kontaktieren Sie uns!

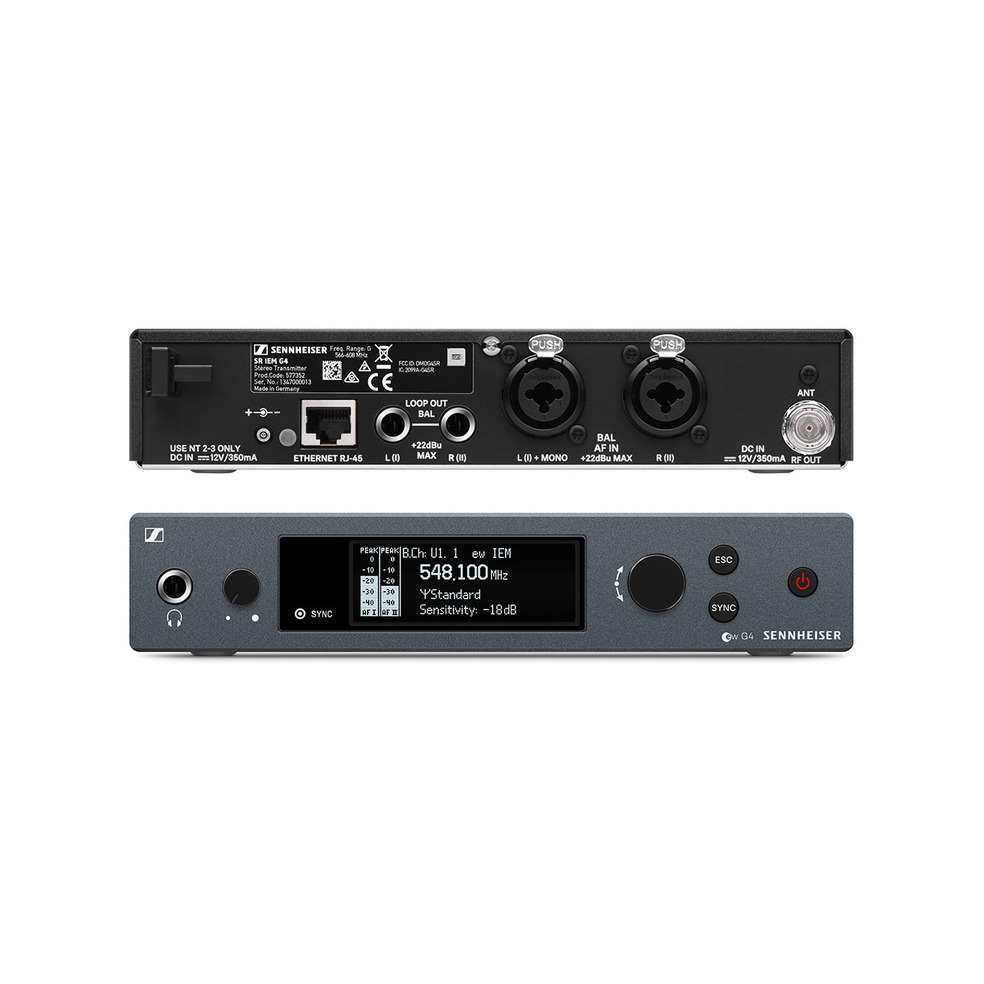

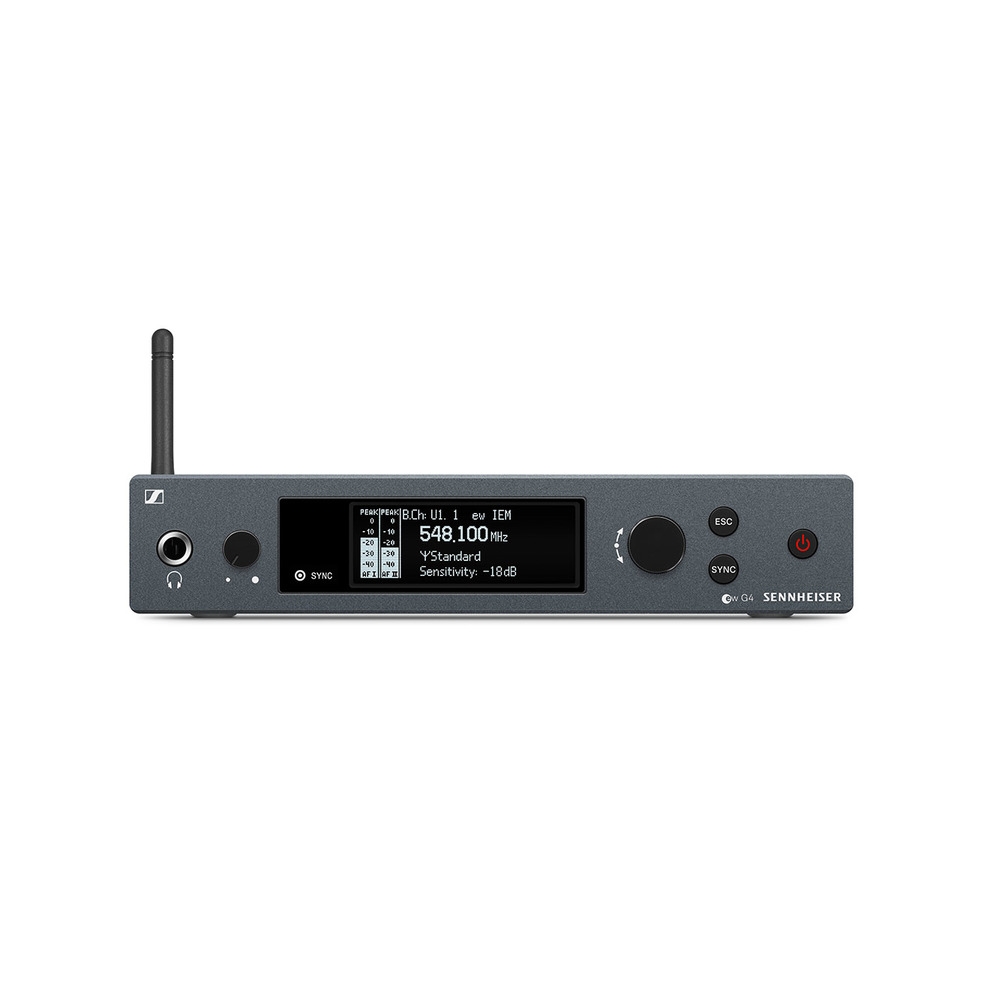

Stereo-Sender in halber Rackbreite in einem Vollmetallgehäuse und intuitiv bedienbarem OLED-Display für volle Kontrolle, liefert Klarheit über das gesamte Frequenzspektrum für den täglichen Nutzen auf der Bühne mit dem evolution wireless G4 In-Ear-Monitoring System. Features: Stereo-Sender in halber Rackbreite in einem Vollmetallgehäuse mit kontrastreichem OLED-Display Leichte und flexible drahtlose Synchronisation zwischen Sender und Empfänger über Infrarot Kompatibel mit der Sennheiser Steuerungssoftware WSM für flexible Frequenzzuweisung und -überwachung Bis zu 16 kompatible Kanäle Bis zu 42 MHz Bandbreite mit 1680 wählbaren Frequenzen, voll abstimmbar im UHF-Bereich Reichweite: bis zu 100 Meter Hohe Sendeleistung (bis zu 50 mW), abhängig von länderspezifischen Vorschriften Kompatibel mit dem drahtlosen, integrierten PA-System LSP 500 PRO
