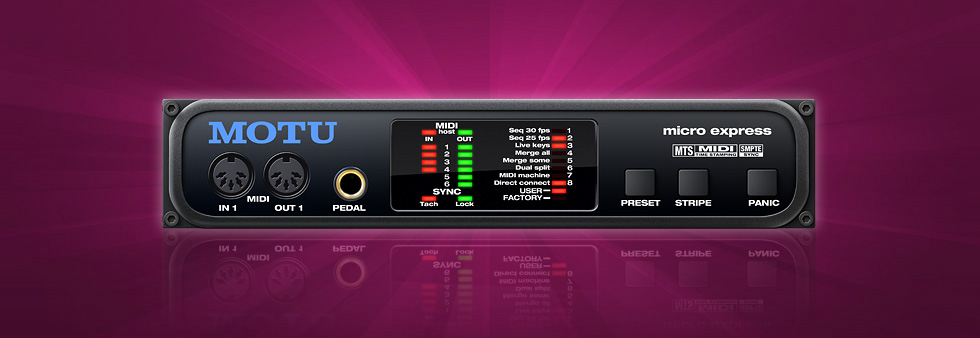

micro express Overviewmicro express is a 4-in/6-out MIDI interface with SMPTE synchronization ($295, compatible with Mac OS X and Windows).Built with MOTU’s award-winning MIDI interface technology, the micro express is a compact, bus-powered MIDI interface and time code synchronizer that provides expandable, plug-and-play connectivity to any USB-equipped Mac or Windows computerProfessional time code syncAs a professional-grade SMPTE time code synchronizer, the micro express converts and stripes time code in all frame formats (23.976, 24, 25, 29.97 drop and non-drop, and 30). SMPTE “jam sync” with adjustable freewheeling provides glitch-free sync.The micro express also supports MIDI Machine Control (MMC), with the ability to serve as either an MMC master or slave. The micro express can distribute MMC transport commands to all other connected MMC devices.Foot switch supportConnect a foot switch to the convenient front-panel pedal input and then program it to generate MIDI data when pressed. Send the data to any connected devices. For example, you could send MIDI patch changes to synths and sound modules during live performance.Expandable, plug-and-play bus-powered USB operationThe micro express takes full advantage of USB, giving you high-speed MIDI throughput, sub-millisecond timing accuracy, support for “hot-swapping” and plug-and-play expansion. Need to connect another sound module or synth? No problem. Just add another MOTU USB MIDI interface via any available USB port. Because it's bus--powered, you can take the micro express anywhere.
THE MICRO EXPRESS NOW INCLUDES:
Support for 23.976 time code
Update ClockWorks software
Feature:
USB MIDI interface for Mac and Windows
Stand-alone MIDI patchbay/merger/processor (when powered via USB)
SMPTE time code sync in all formats (includes new support for 23.976 fps time code)
4x6 MIDI merge matrix: connects any device to any other
16 front panel presets
4 independent MIDI IN
6 independent MIDI OUT
96 MIDI channels
Supports MIDI Machine Control transport messages
Pedal input for momentary foot switch
16 presets with 8 programmable, battery-backed memory
MIDI Time Stamping (MTS) for sub-millisecond timing accuracy
Includes updated drivers and ClockWorks™ software for Mac and Windows
USB bus-powered
Specifications
Custom-designed VLSI technology
Front panel buttons and LED's for choosing presets (8 factory, 8 user)
Front panel SMPTE stripe button
Front panel SMPTE lock and tach LED's
Status lights for MIDI IN/OUT and computers
Front panel MIDI IN and OUT ports
Panic button
10 MIDI connectors
2 SMPTE quarter-inch phone (line level)
1 pedal quarter-inch phone input
Includes software console for Mac and Windows, USB cable
Chassis dimensions, excluding rack ears: 9.5 x 7 x 1.75 inches (24.13 x 17.78 x 4.45 cm). With rack ears attached, fits one half of a standard 19 inch (48.26 cm) rack at 1U high.
Mit der selben Technologie ausgestattet, wie MotU's Flaggschiff MIDI Timepiece, ist das micro lite ein professionelles tragbares MIDI-Interface, das Plug-and-Play-Verbindungen zu jedem mit USB ausgestattetem Macintosh- oder Windows-Rechner herstellt.Das micro lite verfügt über 5 MIDI Eingänge, 5 MIDI Ausgänge, 80 MIDI Kanäle. Es ist kompatibel zu jeglicher Macintosh- und Windowssoftware.Das micro lite nutzt alle Vorteile von USB, bietet Ihnen schnelle MIDI- Verbindungen mit einer Genauigkeit von unter einer Millisekunde.Das micro lite unterstützt „hot-swapping“, d. h. man kann es im laufenden Betrieb an den Computer anschließen. Möchten Sie andere Soundmodule oder Synthesizer anschließen? Kein Problem. Schließen Sie einfach ein anderes MOTU USB-MIDI-Interface über einen freien USB Port an.Die Stromversorgung des micro lite läuft über USB, ein Netzteil oder Netzkabel ist nicht notwendig.Kein anderes MIDI- Interface bietet Ihnen so viele Vorteile, Möglichkeiten und Mobilität, zu einem derart erschwinglichen Preis.

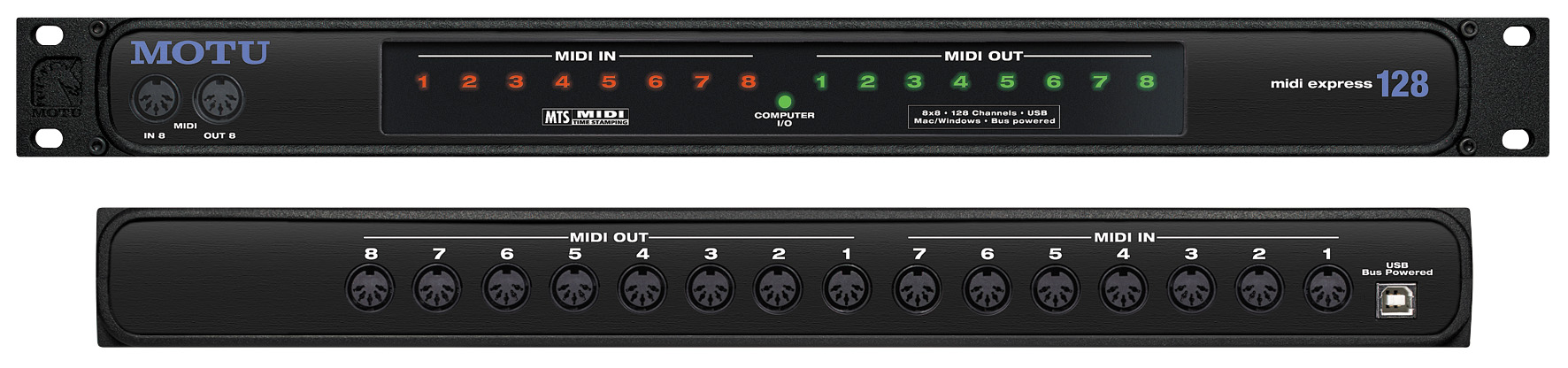

MIDI Express 128 is a 8-in/9-out MIDI interface compatible with Macintosh and Windows.Built from the same technology found in MOTU's flagship MIDI Timepiece, the MIDI Express 128 is a professional MIDI interface that provides plug-and-play connectivity to any USB-equipped Mac or Windows computer. The Express 128 provides 8 MIDI IN, 9 MIDI OUT, 128 MIDI channels and compatibility with all Macintosh and Windows software.The MIDI Express 128 takes full advantage of USB, giving you high-speed MIDI throughput, sub-millisecond timing accuracy, support for "hot-swapping" and plug-and-play expansion. Need to connect another sound module or synth? No problem. Just add another MOTU USB MIDI interface via any available USB port. And the Express 128 is powered by USB – no wall wart or AC plug.No other MIDI interface offers this much value and performance at such an affordable price.Features
MIDI connectivity - Provides eight independent MIDI inputs and outputs for a total of 128 MIDI channels.
Expansion - MOTU MIDI interfaces grow with you. Expansion is simple. Add additional MIDI ports by plugging in another MOTU MIDI interface.
Compatibility - Works with your favorite software. Includes drivers for Mac OS X and Windows. High-speed USB connection.
USB-Powered - Bus-powered from USB connection. No additional power necessary.
Rack mountable - With rack ears attached, fits standard 19 inch (48.26 cm) rack at 1U high. Excluding rack ears, chassis dimensions are 19 × 7 × 1.75 inches (48.26 × 17.78 × 4.45 cm).
MIDI Express XT8-in/8-out MIDI interface, patchbay, and merger with time code syncBuilt with MOTU’s award-winning MIDI interface technology, the MIDI Express XT is a professional MIDI interface and SMPTE synchronizer that provides plug-and-play connectivity to any USB-equipped Mac or Windows computer.The Express XT provides 8 MIDI IN, 9 MIDI OUT, 128 MIDI channels and compatibility with all Mac and Windows software. Sixteen convenient, one-touch presets (8 factory and 8 user programmable) give you instant front-panel access to multiple operational configurations.The included ClockWorks™ console software for Mac OS X and Windows provides comprehensive MIDI routing, merging and muting.As a professional-grade SMPTE time code synchronizer, the Express XT converts and stripes SMPTE in all frame formats (23.976, 24, 25, 29.97 drop and non-drop, and 30). SMPTE “jam sync” with adjustable freewheeling provides glitch-free sync.The Express XT also supports MIDI Machine Control (MMC), with the ability to serve as either an MMC master or slave. The Express XT can distribute MMC transport commands to all other connected MMC devices.Connect a foot switch to the convenient front-panel pedal input and then program it to generate MIDI data when pressed. Send the data to any connected devices. For example, you could send MIDI patch changes to synths and sound modules during live performance.The MIDI Express XT takes full advantage of USB, giving you high-speed MIDI throughput, sub-millisecond timing accuracy, support for “hot-swapping” and plug-and-play expansion. Need to connect another sound module or synth? No problem. Just add another MOTU USB MIDI interface via any available USB port. And the Express XT’s internal international power supply delivers reliable performance and professional operation.THE EXPRESS XT NOW INCLUDES:
Support for 23.976 time code
Update ClockWorks software
Feature
USB MIDI interface for Mac and Windows
Stand-alone MIDI patchbay/merger/processor
SMPTE time code sync in all formats (includes new support for 23.976 fps time code)
8x8 MIDI merge matrix: connects any device to any other
16 front panel presets
8 independent MIDI IN
8 independent MIDI OUT (9 output connectors)
128 MIDI channels
Supports MIDI Machine Control
Pedal input for momentary foot switch
16 presets with 8 programmable, battery-backed memory
MIDI Time Stamping (MTS) for sub-millisecond timing accuracy
Includes updated drivers and ClockWorks™ software for Mac and Windows
Internal Power Supply
Specifications
Custom-designed VLSI technology
Front panel buttons and LED's for choosing presets (8 factory, 8 user)
Front panel SMPTE stripe button
Front panel SMPTE lock and tach LED's
Status lights for MIDI IN/OUT and computers
Front panel MIDI IN and OUT ports
Panic button
17 MIDI connectors
2 SMPTE quarter-inch phone (line level)
1 pedal quarter-inch phone input
1 IEC power connector (switchable 115V - 220V)
Includes: Software console for Macintosh and Windows, power cord, USB cable
Chassis dimensions, excluding rack ears: 19 × 7 × 1.75 inches (48.26 × 17.78 × 4.45 cm). With rack ears attached, fits standard 19 inch (48.26 cm) rack at 1U high.

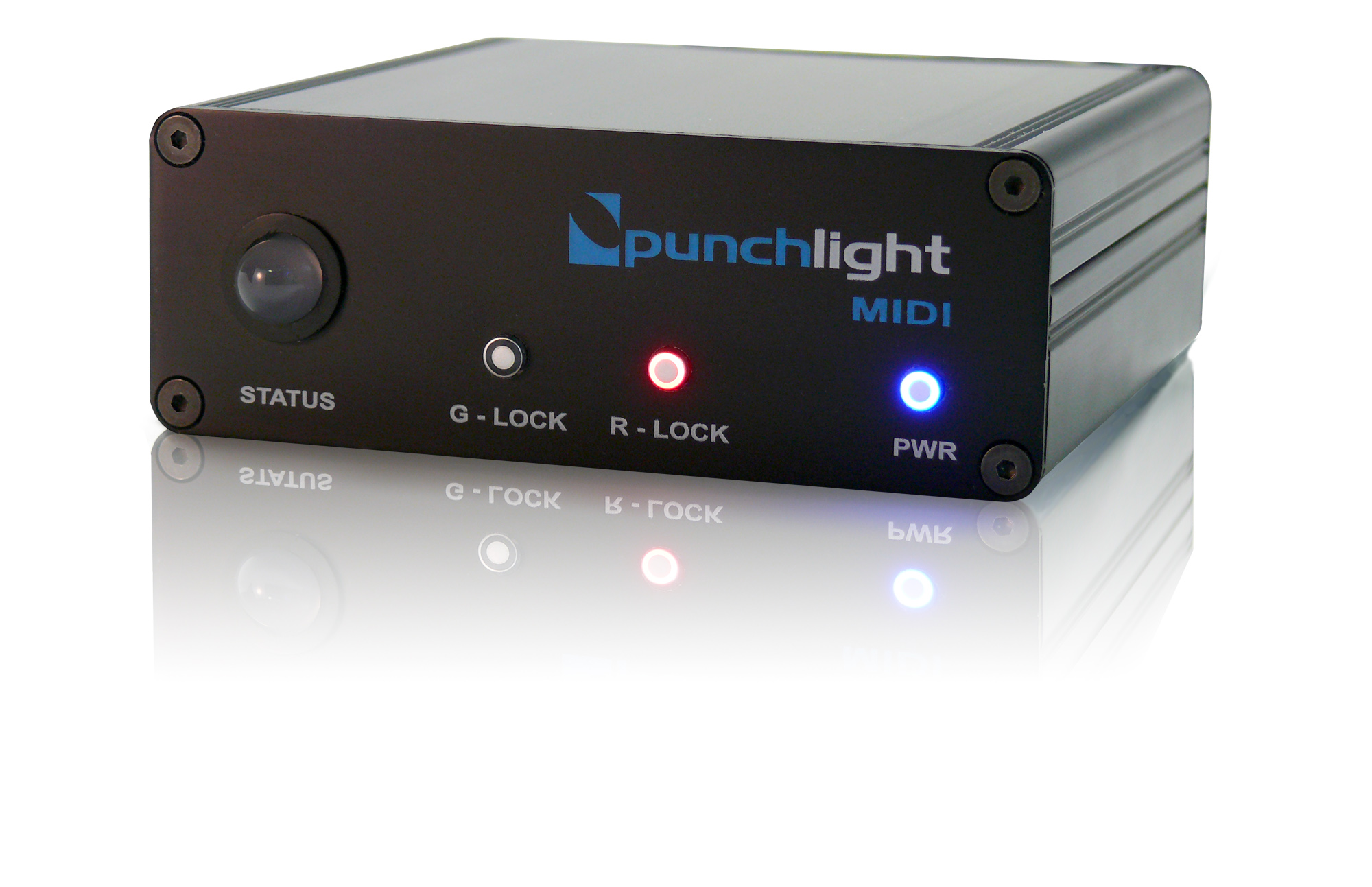

The PunchLight recording indicator is designed for anybody working in project, dubbing, or post production studios who needs visual confirmation of when a recording begins or ends. This simple, precise and easy to use device is perfect for musicians and sound engineers as well as film, TV and video editors.
PunchLight Midi uses MIDI data transmitted by Pro Tools or another DAW. It also has a ‘record-ready‘ mode which is useful for actors in a dubbing studio and for larger groups of musicians. The device has its own visual signaling system as well as an ability to control any signaling systems already installed in the studio. PunchLight Midi is easy to install and use in any studio environment.

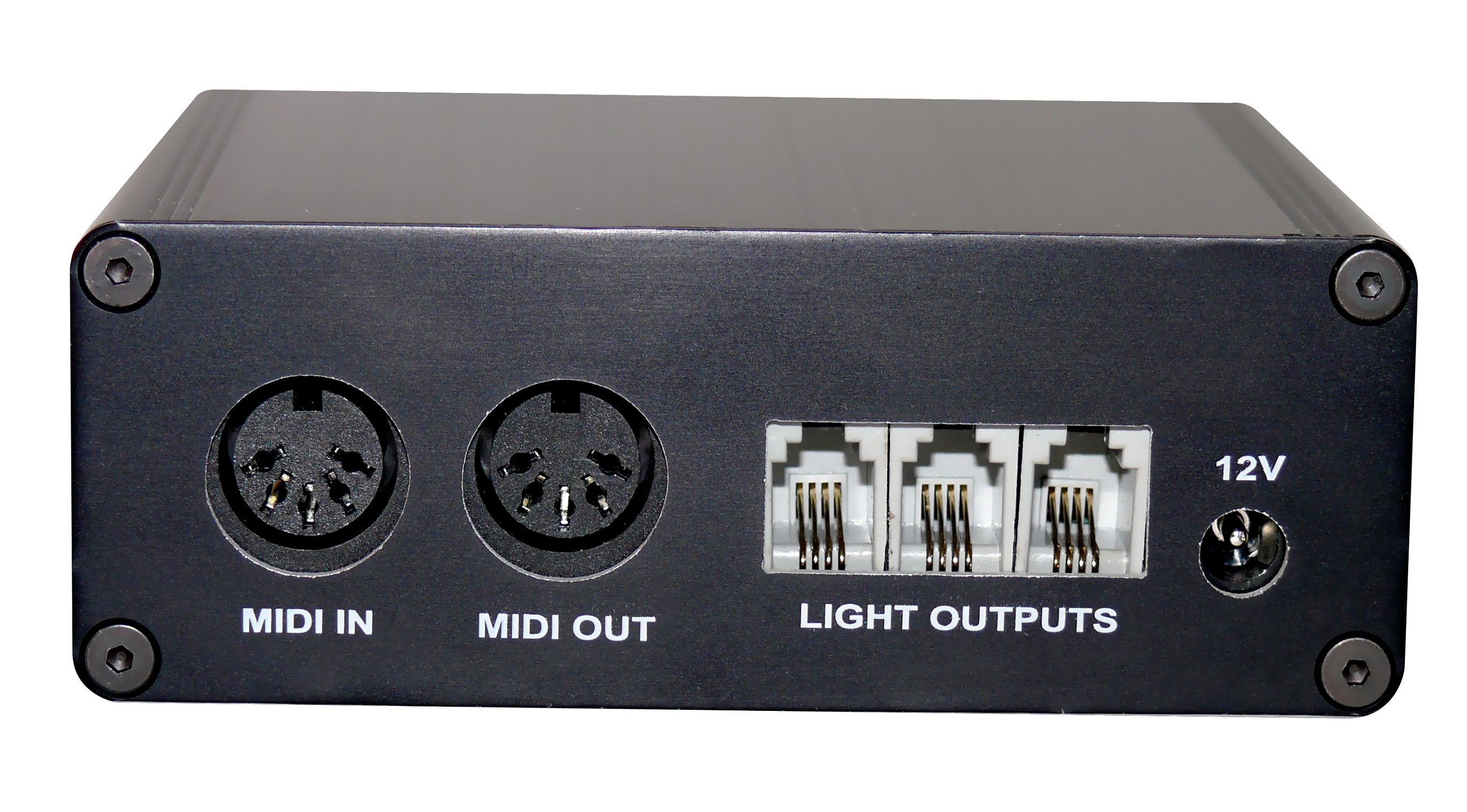

The PunchLight Midi is a switcher interface to connect up to three of the light units such as the RECORDING Display, RECORDING PlexSign, RECORDING Ring or RECORDING Lamp. This box connects to any MIDI interface; it works in Pro Tools or in Cubase, Nuendo, Logic Pro, Samplitude and Digital Performer. A 12V PSU is included.
239,00 €*
