Buzz Audio Elixir

Buzz Audio Elixir

Produktinformationen "Buzz Audio Elixir"

The elixir preamplifier module is an excellent compliment to the 'fatter' sound of many modules now available in the API* 500VPR Series format and has been designed to provide exceptionally low noise wide bandwidth amplification of microphone and instrument signals. The elixir will suit those who desire a recording preamplifier where just a slight amount of bass colour is added to the original signal whilst retaining full treble extension and a smooth midrange - warm, sweet, liquid - the perfect blend.

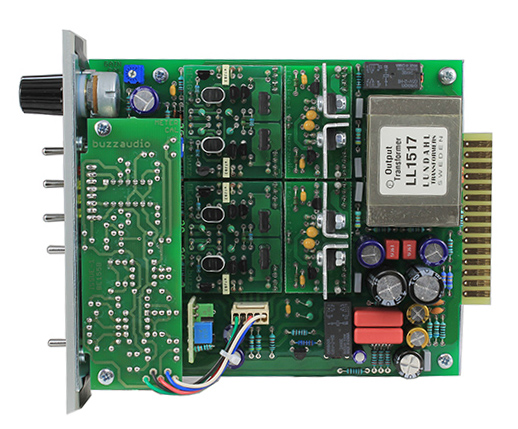

The elixir circuit design is roughly based on the now famous Buzz Audio MA-2.2 mic preamp and utilises two BE40 True Class A amplifiers in a transformeless input arrangement. Following this is the output stage comprising of two newly designed BE50 True Class A high current audio buffers that drive a Lundahl LL1517 output transformer.

As can be seen from the distortion specifications, the presence of the Lundahl output transformer adds a subtle amount of harmonic at low frequencies thereby enhancing the bottom end but without sacrificing the wide bandwith needed for good clarity and transient response in the top end.

The output configuration of the elixir results in a maximum output level of +34dBu before clipping, which means it can comfortably deliver clean audio into all analogue or digital recorders without overload.

Gain range of the microphone input is 22dB to 70dB or -2dB to 50dB with the -20dB pad selected. More than enough for ribbon microphones. The input impedance (selected with the IN Z switch) is 4000 ohms in the H position or 1200 ohms in the L position.

The instrument input on the elixir features a 'bootstrapped FET' high to low impedance convertor that then feeds the elixir amplifier stages. Selection of the instrument input is automatic when a jack is inserted on the front panel input.

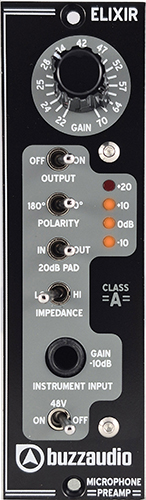

API* 500VPR Series rack module format - plug in and play! Advanced analogue technology - not a clone or copy of products from the past. Fully discrete hi-bias wide bandwidth differential Class A amplifiers. Matched and selected semiconductors. Transformerless input, straightline single path. High performance Lundahl output transformer. 41 position max trimmed GAIN control. Optimized 'grunty' Class A amplifiers for the input/output functions. Output Mute and Hi/Lo input impedance switches. Accurate four LED peak level meter. Min Gain Mic = +22dB (-2dB with pad in) Max Gain Mic = +70dB Min Gain Instrument = +12dB (-3dB with pad in) Max Gain Instrument = +60dB Maximum Output Level = +34dBu into 3k ohm load. Frequency Response Mic = 10Hz to 300kHz @ 20dB gain (-3dB). Frequency Response Instrument = 10Hz to 120kHz @ 20dB gain (-3dB). Harmonic Distortion measured at -20dBu input level, gain adjusted for +10dBu output level Mic = 0.15% @ 100Hz, 0.01% @ 1kHz, 0.005% @ 10kHz Instrument = 0.15% @ 100Hz, 0.015% @ 1kHz, 0.015% @10kHz EIN Mic = -132.5dB A wtg, 150ohm source Z. Signal to Noise Ratio Mic = -73dB A wtg, input shorted. Signal to Noise Ratio Instrument = -76dB A wtg, input shorted. CMNR Mic = -78dB @ 100Hz, -100dB @ 1kHz, -100dB @ 10kHz. Input Impedance Mic = 4k ohms/1k2 ohms switchable. Input Impedance Instrument = 1MEG ohms/20k ohms switchable. Controls = Gain, Mute, Phase Reverse, 20dB input Pad, Input impedance, Phantom pwr. Indicators = 4 LED peak reading meter. Size = (37Wx132H). Fits 1 space in API(TM) 500 series rack format Power requirements = 150mA +/- 15-18 volts DC, as supplied by frame power supply. Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.
Sicherheits- und Warnhinweise: Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt.

Buzz Audio

Buzz Audio Ltd

8 Opawa Street Blenheim 7201 Marlborough New Zealand.

management@buzzaudio.co.nz

https://www.buzzaudio.com/
