Grace Design m905 Digital

5.176,00 €*

Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.

Hersteller: Grace Design
Produktinformationen "Grace Design m905 Digital"

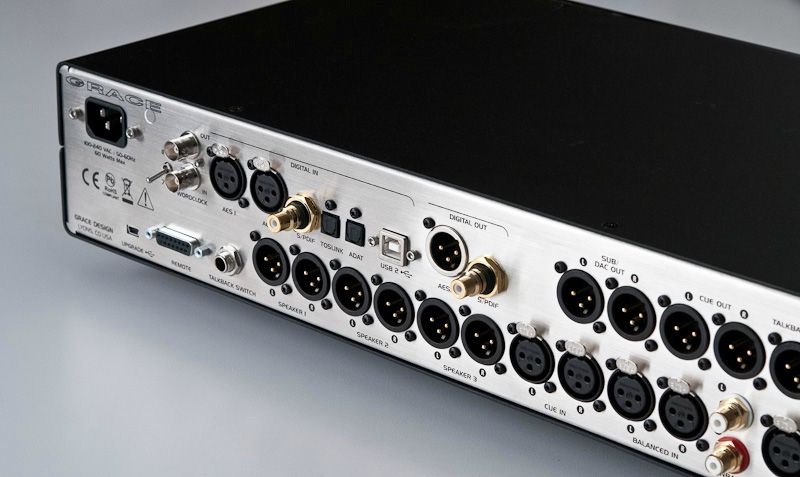

Analog inputs - unbalanced, balanced, CUE, talkback mic (additional balanced input available on the m905 Analog)


Digital inputs - 2x AES3 (Single or dual-wire), 1 S/PDIF, 1 TOSLINK, ADAT (selectable in 4 pairs, or 2 pairs in S/MUX), USB, DSD128 (5.6448MHz)


Audio circuitry designed for completely transparent and musical playback performance


Asynchronous Class 2 USB playback supports up to 24 bit/192kHz


Mastering quality DAC circuitry with configurable de-emphasis filtering


s-lock dual-stage Phase Lock Loop for ultra low jitter clock regeneration

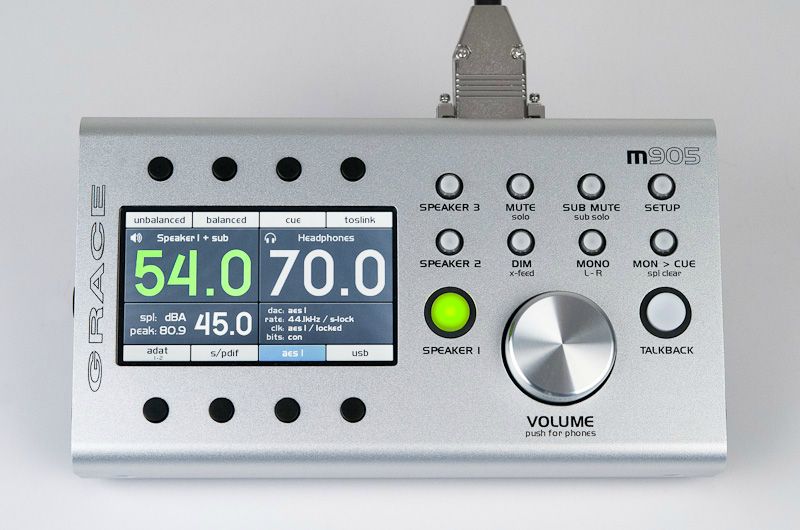

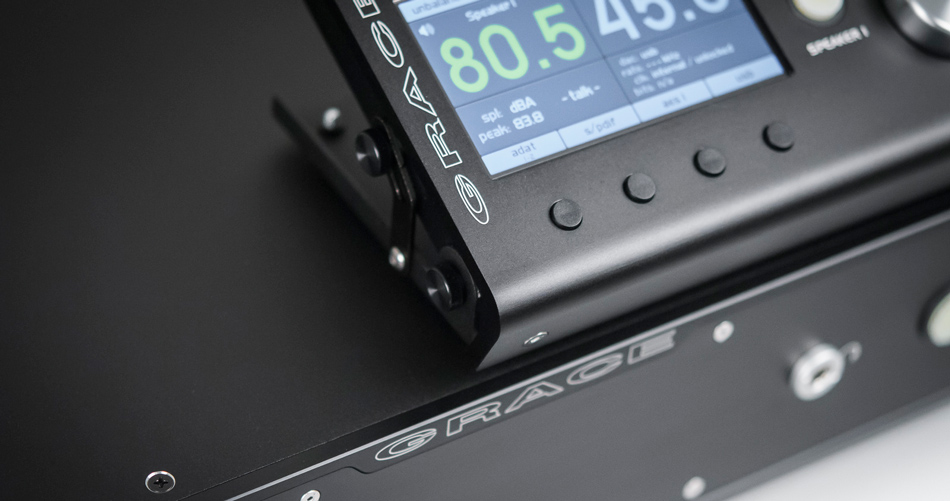

Hybrid RCU with hardware switches, large level encoder and graphical LCD


LCD display shows input, level, output, SPL and DAC status plus a full calibration menu


RCU includes built in microphone for talkback and onboard SPL meter


SPL meter features include level, peak, fast and slow modes, A & C weighting


Precision .5 dB step level control for speakers and headphones


Reference headphone amplifier circuitry, with outputs on both the RCU and ACU


Dedicated mono, dim, mute and sub mute switches


Mono mode can be set to L+R summed, L only in both channels, or R only in both channels L solo, R solo, L-R and sub solo modes are available


3 available stereo speaker outputs, with two assignable mono sub outputs (or single stereo sub output)


Multi-mode SUB/ DAC/ METER out


SUB out mode for stereo or multiple mono subwoofer outputs


DAC out mode for a fixed DAC output fed by the selected digital input


METER out mode fed by selected input signal (digital or analog), configurable with a fixed level or to follow yhe monitor level

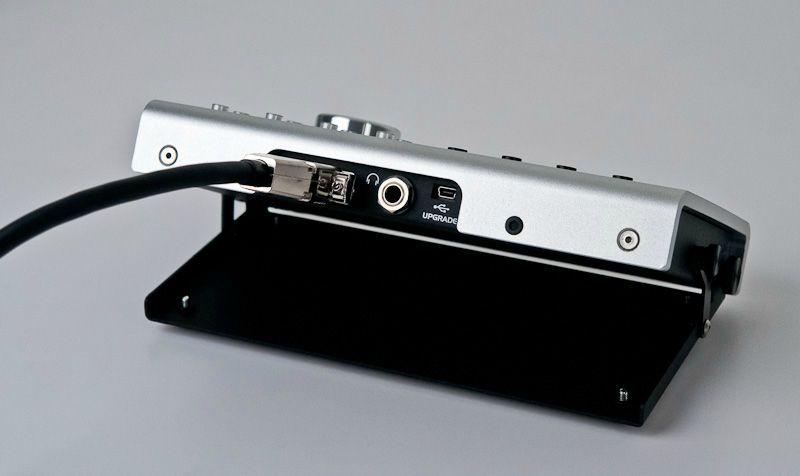

Detachable RCU tilt base
