Heritage Audio MCM-20.4
3.579,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Produktinformationen "Heritage Audio MCM-20.4"

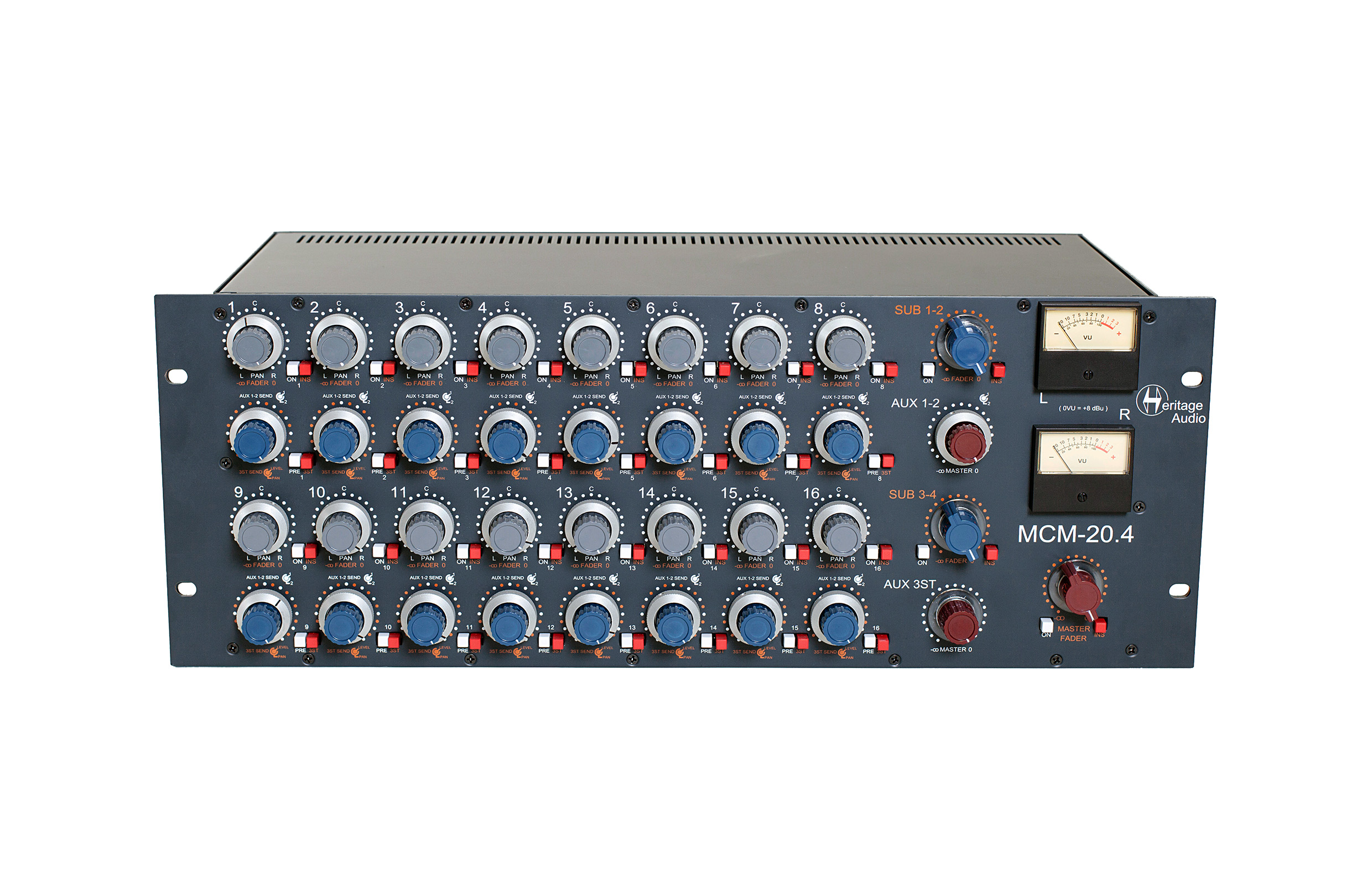

The MCM20.4 is a 20 channel mixer with the addition of 4 aux sends (2 mono and 1 stereo) and a class A 1073 output stage. 16 channels are laid out in 2 rows of 8 on the front panel, having fader, pan, insert and on/off controls. These are actively sub grouped into 2 stereo subs, again with insert points and dedicated stereo faders. The 4 additional inputs (hard panned left and right and at unity gain) can be accessed from the back of the unit. These can be used as FX Returns, cascading mixers or simply as additional stereo channels.
The aux sends section can be used pre or post fader and features 2 mono sends (1 and 2) and alternatively, a third stereo aux can be used. Hard panning the stereo aux turns this into 2 mono auxes. Master faders for all sends are provided.
The Master Bus has indeed its own insert point and dedicated Fader. All inputs and outputs, included inserts, are balanced. All connections are on DSUB 25s following the Tascam protocol, with the exception of the Master Bus related ones, which are on XLRs. Stereo output is duplicated for easy Mix / Monitor splitting. The combination of active and passive mixing topologies, together with the use of heavy gauge ground busses, gives an exceptional low noise and high headroom.
Features
- 20 channel summing mixer
- 16 channels with volume, pan, mute, insert on/off and aux send level control
- 2 stereo intput channels with unity gain
- 1073 class A output stage
- 2 subgroups and 3 aux sends
- Stereo-Mix and Monitor output
- Insertpoints per channel, subgroup and master channel
- Low Noise and high headroom performance.
- Active subgroup and passive master bus summing
| Sicherheits- und Warnhinweise: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Heritage Audio
- Input connectors: DSUB 25 (Tascam protocol)
- Insert connectors: DSUB 25 (Tascam protocol), XLR (Master)
- Ouput connectors: XLR
- Power supply: HA-PSU02 (extrenal)
- Dimensions: 19" / 4 U
