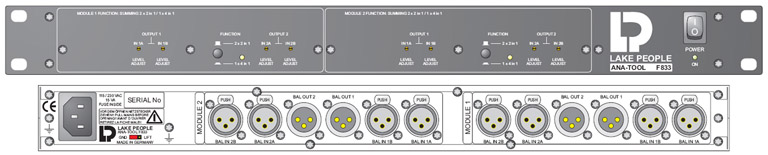

Lake People ANA-TOOL F833
899,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Produktinformationen "Lake People ANA-TOOL F833"
2 x 4 in 1 / 4 x 2 in 1 SUMMING AMPLIFIER F833
- 2 x 2 identical sections, each with two balanced inputs to a balanced output (4 x 2 in 1)
- Front panel switchable from 2 x 2 in 1 to 4 in 1 In this case, the output signal can be removed at both outputs
- Back balanced XLR inputs
- XLR input jacks with gold plated contacts
- Optimized for line-level signals, impedance 20 kOhm
- Differentiation of the input signals with high common-mode rejection
- Internal filter for band limitation to a safe and reasonable range of 5 Hz ... 40 kHz (-1dB)
- Front spindle trimmer for level adjustment in the range -12 ... +12 dB
- Balancing the output signals with optimized circuits for high resistance - and Spannungsunsymmetriedämpfung
- IRT compliant output impedance 30 ohms
- XLR connectors with gold contacts
- 19 ", 1U stainless steel case, dark gray front
Options: Transformer-balanced inputs and outputs
Technical data
Sections: 2 x 2, each 2 in 1
Function: each section in a 2 x 2, 4 in 1
Input impedance: 20 kohms
Input CMRR:> 80 dB @ 15 kHz
Max input level:> +25 dBu
Gain: -12 ... +12 DB
Frequency range: 5 Hz ... 40 kHz (-1 dB)
THD + N: dBu <-97 dB (@ +6, 0 dB gain)
Noise: <-94 dB
Crosstalk: <-100 dB @ 15 kHz
Max output level:> +25 dBu
Output CMRR:> 70 dB @ 15 kHz
Output impedance: 30 ohms
Power supply: 115/230 VAC, 15 VA
Dimensions: 483x44x166 mm (WxHxD), 19 ", 1U
Case: stainless steel
Finish: dark gray front
For more information, please visit this products webpage.
