Neumann KH 750 DSP (B-Ware)
1.419,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Produktinformationen "Neumann KH 750 DSP (B-Ware)"
Features:
- Deep bass in a small space
- The perfect complement to KH 80 DSP, KH 120 and KH 310
- Optional Neumann.Control iPad® app to setup, align and operate a complete Neumann stereo system
DSP POWER FOR ALL
The compact KH 750 DSP is the ideal choice for smaller rooms and smaller studio monitors. It has a unique and flexible Bass Manager (2.0/0.1), analog and digital inputs, four routing modes and adaptable acoustical controls to be used in many different configurations.
The optional Neumann.Control iPad® app gives access to many additional functions. This includes the possibility of aligning Neumann monitors, that are connected to the subwoofer, to the room using the patented "Guided Alignment" and controlling the entire stereo system. This also includes analog* monitors. Detailed information can be found below.
MORE ABOUT THE KH 750 DSP

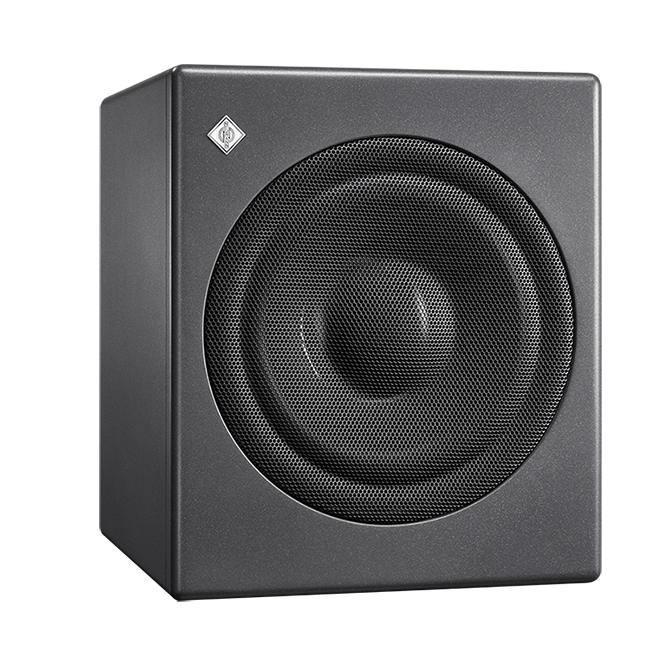

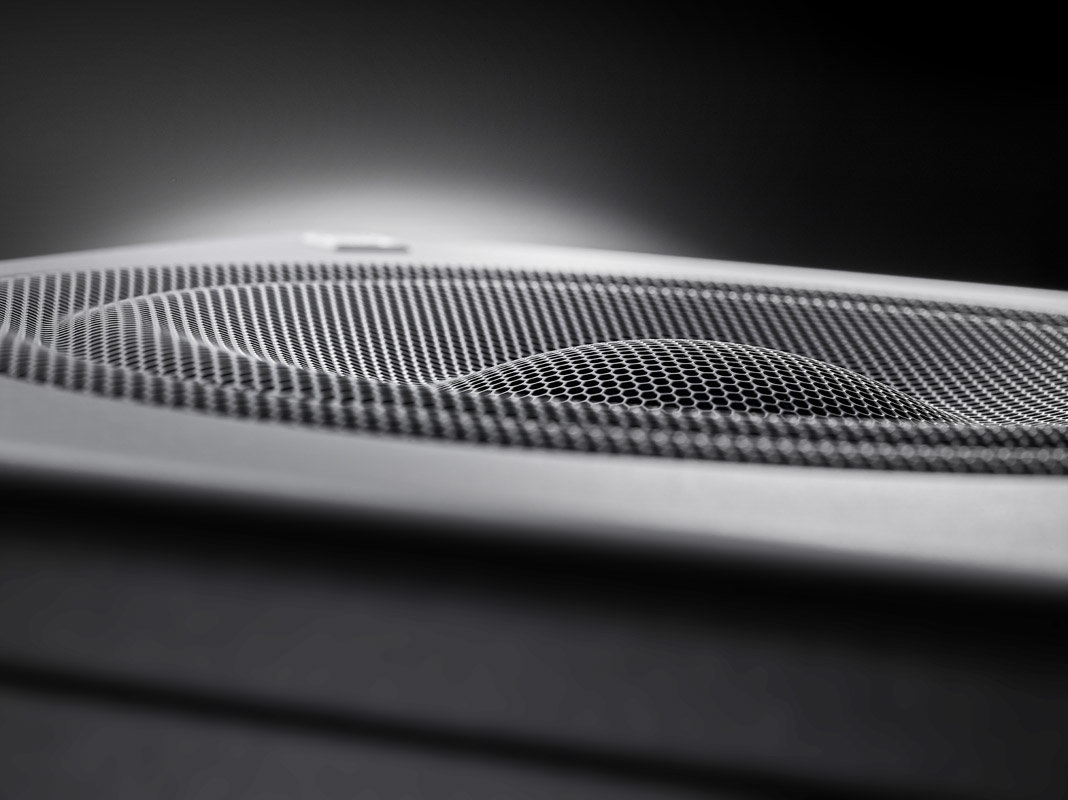

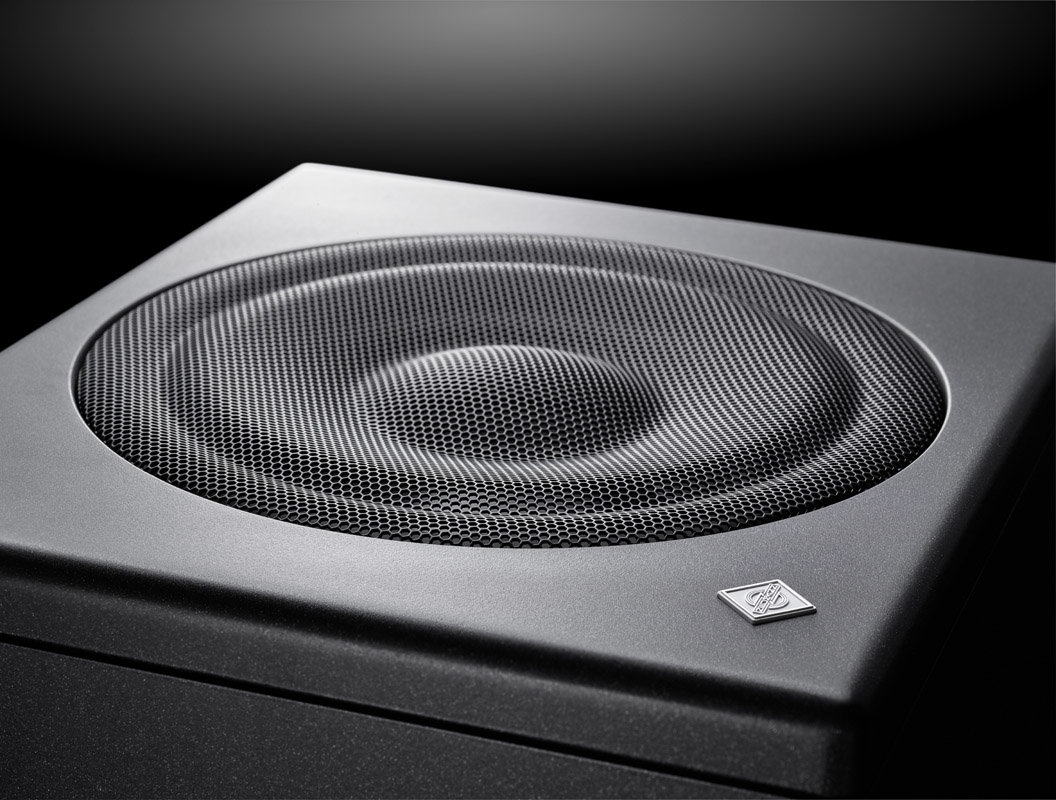

The newly designed 10” long-throw driver has a strong linear working magnet system with ELFF™ technology (Extremely Linear Force Factor™). As subwoofers are usually placed on the floor, a robust grille protects the driver from accidental damage. The ultra-compact cabinet is a closed design which brings the fastest possible transient response.

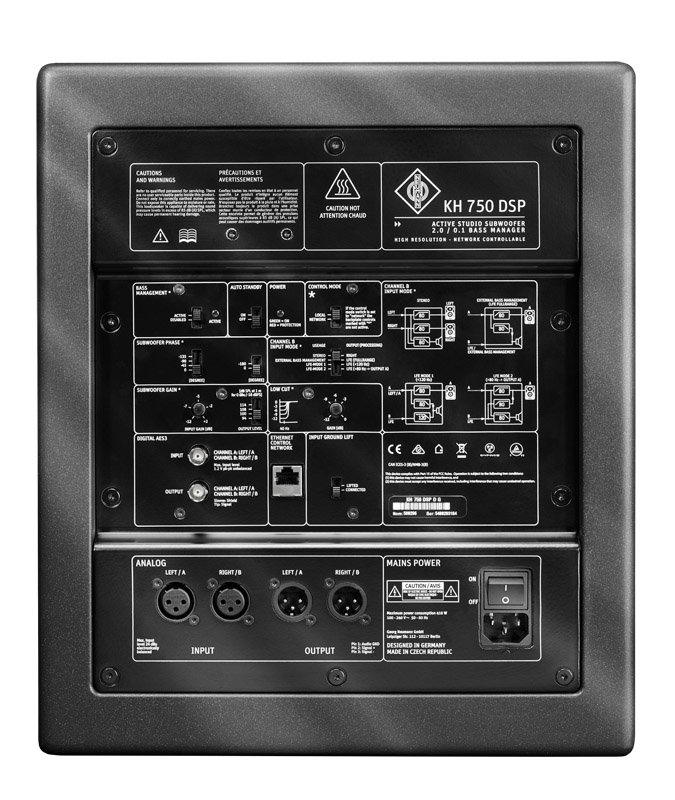

The two analog XLR inputs are balanced as are the two analog XLR outputs. The 192 kHz / 24-bit digital input can accept AES3 and S/P-DIF signals. There is a bypassable standby function and the switch-off time can be adjusted in the Neumann.Control iPad® app.
The KH 750 DSP can be used in music, broadcast, and post production studios for tracking, mixing, and mastering.
| Sicherheits- und Warnhinweise: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Neumann
Georg Neumann GmbH
Leipziger Str. 112 10117 Berlin
https://www.neumann.com
Sennheiser electronic SE & Co. KG
Am Labor 1 DE - 30900 Wedemark Deutschland
contact@sennheiser.com
Acoustical
Free field frequency response: 16 Hz … 800 Hz, ± 6 dB
Free field frequency response: 18 Hz … 750 Hz, ± 3 dB
Self-generated noise (with input gain set to 100 dB SPL for 0 dBu): < 20 dB(A) SPL at 10 cm
Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz): 105.0 dB SPL
Electronics
Input: Analog: 2 x XLR, electronically balanced, Digital: BNC (75 Ω): AES3; S/P-DIF
Controller design: Digital, active
Crossover frequency, slopes: 80 Hz fixed or 60 ... 100 Hz via Neumann.Control, 24 dB/oct; 4th order
Output power woofer amplifier (THD+N with limiter deactivated: 10%): 256 W
Mains Power Supply, voltage; frequency: 100-240 V~; 50/60 Hz, with standby
Mechanics
Woofer: 265 mm (10") with protecting black metal grille
Product dimensions (height x width x depth), mm (inches): 383 x 330 x 383 mm (15 1/8" x 13" x 15 1/8") Product weight: 19.5 kg (43 lbs
