Neumann USM 69 i mt
6.779,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Produktinformationen "Neumann USM 69 i mt"
Neumann USM 69 i mt
Colour:black

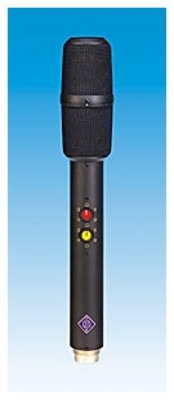

The USM 69 i stereo microphone has two separate dual-diaphragm capsules. These are mounted vertically and rotate against each other. The directional polar patterns can be selected separately for each capsule. The capsules operate independently from each other.
Features:
Switchable stereo microphones
Two pressure-gradient transducers with double membrane capsules
MS- or XY-stereophony
Capsules rotary by 270°
Very low noise
Aperture and pick-up angles freely choosable
Directional characteristics reproducably switchable, omni, wide angle cardioid, cardioid, hypercardioid
Technical Specifications:
Acoustical operating principle Pressure gradient transducer
Direct ional pattern Omnidirectional, wide-angle cardioid, cardioid, hypercardioid, figure-8
Frequency range 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm 13 mV/Pa
Rated impedance 150 ohms
Rated load impedance 1 kohms
Equivalent noise level, CCIR1) 24 dB
Equivalent noise level, A-weighted1) 13 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) 70 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) 81 dB
Maximum SPL for THD 0.5%2) 132 dB
Maximum output voltage 3 dBu
Dynamic range of the microphone amplifier (A-weighted) 119 dB
Supply voltage (P48, IEC 61938) 48 V ± 4 V
Current consumption (P48, IEC 61938) 2 x 0.7 mA
Matching connector XLR5F
Weight 510 g
Diameter 30 + 48 mm
Length 293 mm
| Sicherheits- und Warnhinweise: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
