SPL PQ Mastering Equalizer
6.399,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Produktinformationen "SPL PQ Mastering Equalizer"

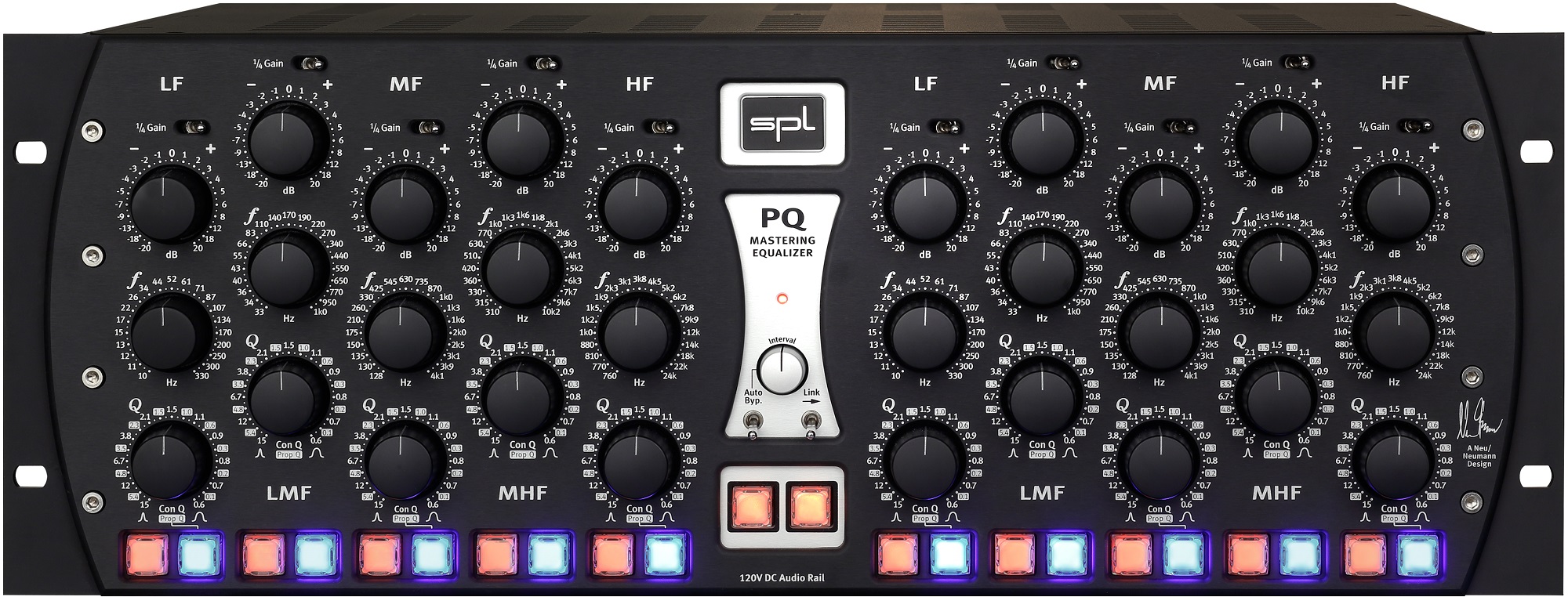

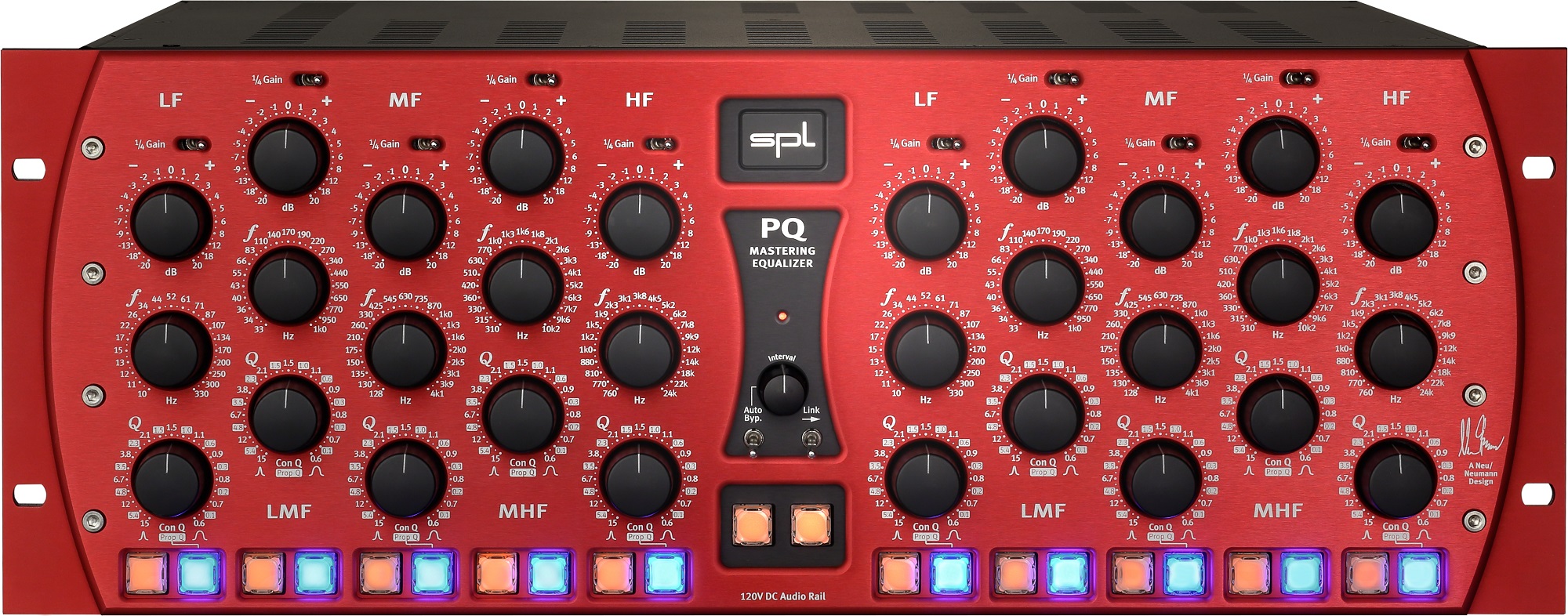

The PQ Mastering Equalizer is a fully parametric, dual-channel five-band equalizer.
The PQ Mastering Equalizer – Model 1540/1544 is a new revised edition of the well-known SPL PQ Mastering Equalizer – Model 2050.
Both units are based on our 120V Rail Technology. The new PQ features the same high-quality characteristics as the previous model.
All five bands can each be activated or deactivated and you got the possibility (for every single band) to separately switch between Constant Q and Proportional Q. This kind of circuit has not yet been achieved in any other equalizer.
Each channel can completely be activated or deactivated, thanks to Auto-Bypass, even automated in a freely selectable time frame.
Bypass of each band and constant Q of the left side can be controlled by the right side in Link mode.
Thanks to the 1/4 Gain-Switch, you can reduce a maximum increase or attenuation of the amplitude by the factor 3/4, which regulates the potentiometer from max +/-20 dB to +/-5 dB cut. This gives you the possibility to perform small corrections, as common in Mastering or higher amplitudes in Proportional-Q mode.
Thanks to the detented potentiometers, a precise recall is very easy to realize. You can also adjust parameters Gain, Frequency and Q in 41 steps with the detented potentiometers.
| Sicherheits- und Warnhinweise: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
SPL
SPL electronics GmbH
Sohlweg 80 41372 Niederkrüchten Germany
info@spl.audio
https://spl.audio
Frequenzbereich: 10Hz - 40kHz
Gleichtaktunterdrückung (1 kHz, +34 dBu, Band 1-5 EIN, B/C = 0 : › -82dB
Übertragungsbandbreite (3 dB, Band 1-5 EIN, B/C = 0): 10 Hz-100 kHz
THD & N (@ 24dBu, Constant-Q) › 107dB
THD & N (@ 24dBu, Proportional-Q) › 106dB
Rauschen (unbewertet, bei 24 dBu, Band 1-5 EIN, B/C = 0) - 91dBu
Rauschen (A-bewertet, bei 24 dBu, Band 1-5 EIN, B/C = 0) - 94dBu
Rauschen (CCIR, bei 24 dBu, Band 1-5 EIN, B/C = 0) - 86dBu
Harmonische Verzerrung:
- 0,2% @ 1kHz/-30dBu
- 0,05% @ 1kHz/-20 dBu
- 0,01% @ 1kHz/0 dB
- 0,002% @ 1kHz/+10 dBu
- 0,0005% @ 1kHz/+30 dBu
Eingangsimpedanz: 20kOhm
Max. Eingangspegel: + 32,5dBu
Ausgangsimpedanz: ‹ 600Ohm
Max. Ausgangspegel: + 32,5dBu
Stromaufnahme: max. 61W
Sicherungen
- 230 V/50 Hz: 3,15 Amp
- 115 V/60 Hz: 6,3 Amp
Maße: 482 x 177 x 311,5 mm
Gewicht: 15,2 kg
