Schoeps MiniCMIT blue
Entdecken Sie das Schoeps MiniCMIT blue Mikrofon - kompakt, leistungsstark und ideal für professionelle Audioaufnahmen! Niedriger Stromverbrauch.
2.049,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Hersteller:
SCHOEPS
Produktinformationen "Schoeps MiniCMIT blue"
- Offers the characteristics of a CMIT 5 in more compact form
- Phantom Powering with P12 and P48
- low current draw
- Fixed 4th order low-cut filter at 70 Hz

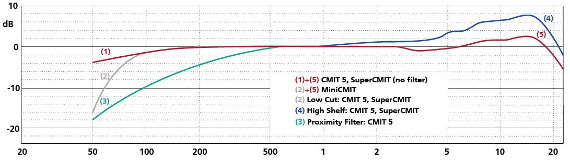

The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound.
| Sicherheits- und Warnhinweise: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
SCHOEPS
Schalltechnik Dr. Ing. Schoeps GmbH
Spitalstr.20 76227 Karlsruhe Germany
info@schoeps.de

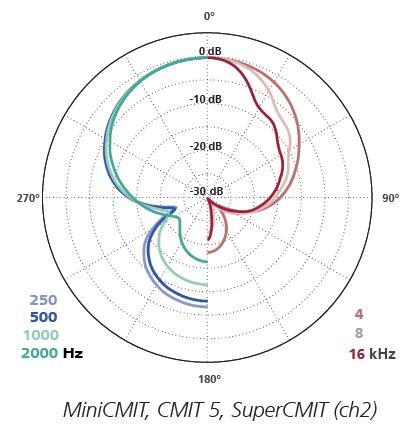

Pickup pattern
Supercardioid / lobe-shaped
---
Frequency range
60 Hz - 20 kHz
---
Sensitivity
-35 dB (V/Pa), 17 mV/Pa
---
Equivalent noise level (A-weighted)
14 dB
---
Equivalent noise level (CCIR)
24 dB
---
Signal-to-noise ratio (A-weighted)
80 dB
---
Maximum sound pressure level (THD < 0.5 %)
130 dB-SPL (P48)
115 dB-SPL (P12)
---
Maximum output voltage
1 V (0 dBV) with 2 kΩ load
---
Low cut filter
fixed, 70 Hz, 24 dB/oct.
---
Minimum recommended load impedance
2 kΩ
---
Output impedance
100 Ω
---
Maximum cable length
>100 m
---
SCHOEPS RFI Shield
Yes
---
Powering standard / Valid range
P48 / >24 V
P12 / >11 V
---
Current consumption
2.3 mA (P48)
---
Common mode rejection ratio (at 1 kHz)
> 55 dB
---
Output
XLR-3M, analog, 1 channel
---
Length
151 mm
---
Diameter
21 mm
---
Weight
78 g
---
Surface finish
blue or custom color
