Sennheiser EK3053-U
1.049,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Produktinformationen "Sennheiser EK3053-U"

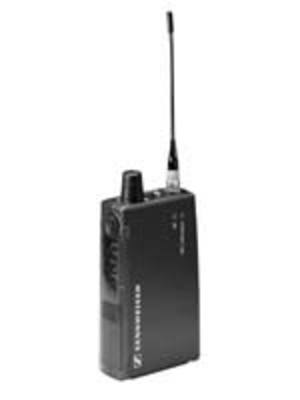

Sennheiser EK 3053-U
The EK 3053-U is a rugged stereo pocket receiver designed for receiving signals transmitted by the SR 3054-U and SR 3056-U transmitters. Its small size allows complete freedom of movement. 16 switchable UHF receiving frequencies ensure high flexiblility and optimum reception.
Features:
Rugged stereo pocket receiver
16 switchable receiving frequencies, PLL-controlled
“HiDyn stage” noise reduction system
LEDs for RF signal and “operation”/“LowBatt”
indication
FOCUS function for individual audio mix
Extremely reliable antenna socket (special Lemo)
Technical Specifications:
Transmission/receiving frequencies 16
RF frequency range 450.....960 MHz
Switching bandwidth 24 MHz
Modulation FM, stereo
Nominal deviation +/- 40 kHz
Peak deviation +/- 56 kHz
Squelch 0-100 µV
Sensitivity as per 121 TR 9-5 < = 2 µV (mono), < = 10 µV (stereo)
Compander HiDyn stage
Stereo-Channel separation > = 45 dB
Audio-Output-Power 2 x 100 mW (16 Ohm, min. 2 x 8 Ohm)
Powering 1 x 9-V- Battery PP3 (IEC 6 LR 61)
Operating time (Battery) 5 h
Operating time (Accupack) < = 2 h
Dimensions 108 x 65 x 23 mm
Weight 236 g
In compliance with ETS 300 422, ETS 300 455
| Sicherheits- und Warnhinweise: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
