API Select SR22 2 Channel Compressor

API Select SR22 2 Channel Compressor

Produktinformationen "API Select SR22 2 Channel Compressor"

Features
  • Patented THRUST® circuit
  • Variable Threshold, Ratio, and Make-up gain controls
  • Classic analog VU meters
  • Switchable metering of output level and gain reduction
  • Peak threshold LED indication
  • Switchable Hard of Soft Knee compression
  • Linkable for stereo operation with true RMS power summing
  • Fully balanced XLR and 1/4" inputs and outputs

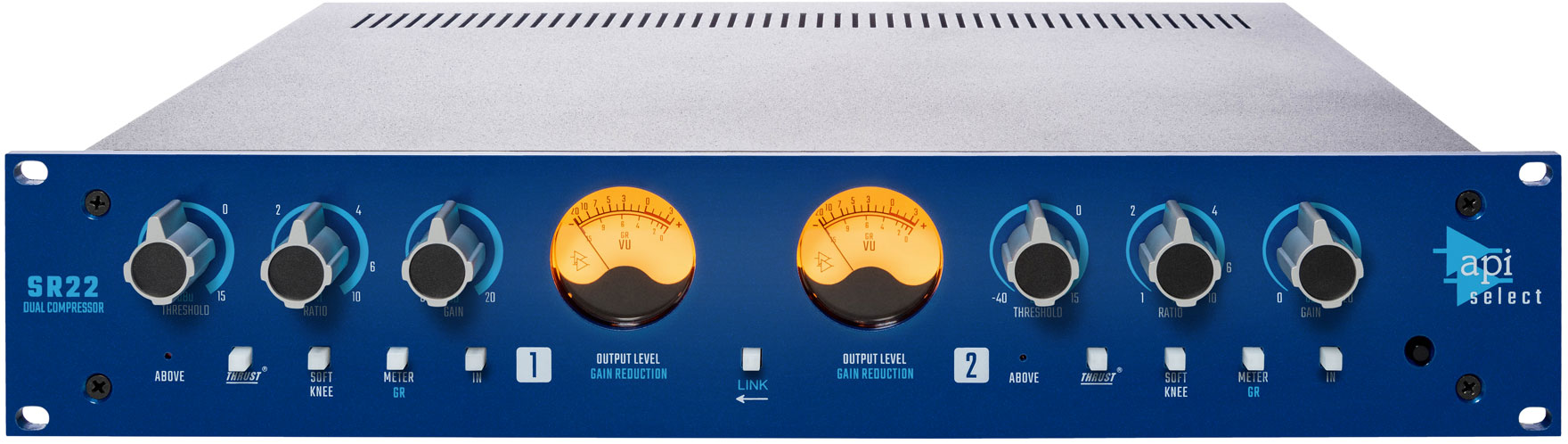

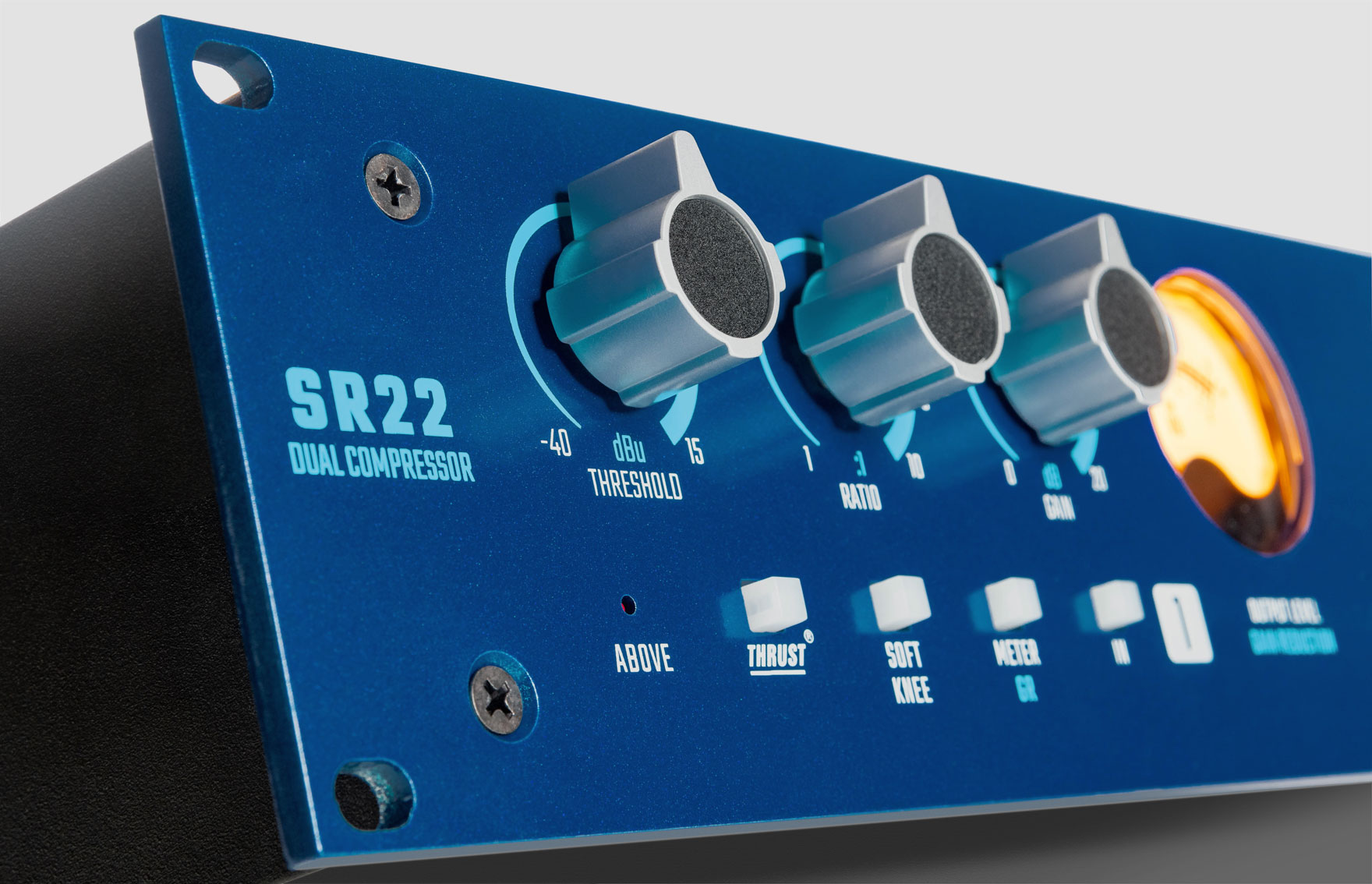

The SR22 Dual Channel Compressor features two channels of API's patented award-winning compressor circuit in a rackmount unit with internal power supply. This same compressor circuit was originally designed into the legendary ATI Paragon analog live mixing console. Each channel includes the patented THRUST® circuit, which protects the sensitive high frequency content of the audio signal, even under the most vigorous of compression ratios. The perfect companion to the new SR24 Dual Channel EQ, the SR22 provides comprehensive, easy-to-use control along with classic analog VU meters for monitoring output and gain reduction. The two channels can also be linked for use as a stereo compressor with true RMS power summing of the left and right signals.

Sicherheits- und Warnhinweise: Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt.

API

Automated Processes, Inc.

8301 Patuxent Range Road Jessup, MD 20794 USA

service@apiaudio.com

https://apiaudio.com/

ES-Pro Audio

Narzissenstr. 9

85055 Ingolstadt

Germany

contact@es-proaudio.de

www.es-proaudio.de


Alle Produkte im Shop
Specifications
Inputs:Balanced XLR (pin 2 hot) and 1/4" jack (wired tip hot) (1/4" normalled priority)
Outputs:Balanced XLR (pin 2 hot) and 1/4" (wired tip hot) parallel jacks
Input Impedance:15k Ohms Balanced
Bandwidth:+/- 0.5dB, 20Hz - 50kHz
THD+N @ 1kHz, +4dBu:<0.005%
Maximum Level:+19dBu
Signal-to-Noise Ratio:-88dBu (comp in), -92dBu (bypass), -106dB
Crosstalk:<84dB @ 20kHz
Stereo Link:True RMS Power Summing
Meter:-20 to +3 VU Output Level, 0 to -15 dB Gain Reduction, switchable
Compressor Controls:
Threshold Range:-40dBu to +15dBu
Ratio Range:1:1 to 10:1
Makeup Gain Range:0dB to +20dB
Hard or Soft Knee switchable
Flat or Thrust side chain filter switchable
Attack Time:Program and Control Adaptive, 10mSec to 40mSec
Release Time:Program and Control Adaptive, 30mSec to 400mSec
Power Consumption:12W
Dimensions::2U EIA 19" Rack
Size:19" x 3.5" x 10" Deep
Weight:12 lbs.
(Specifications subject to change without notice.)
