Produktinformationen "ATC SCM200ASL Pro"

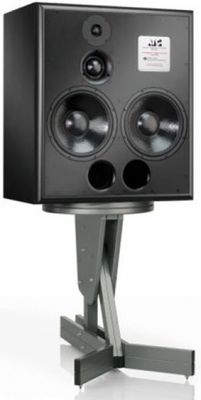

SCM200ASL Pro: 3-way Active
Features
34mm soft dome tweeter.
Twin full spec "SL" 12"/314mm bass drivers.
ATC 75mm "Super Dome" mid driver.
Rack-mount ATC 4 way grounded plane 850W amplifier.
Clip indication.
6 year warranty.
Specifications
Drivers :
HF 34mm, Mid 75mm, LF 2 x 314mm
Amplitude Linearity (±2dB) :
60Hz-12kHz
Cut-off Frequencies (-6dB, free-standing) :
32Hz, 20kHz (free standing) 25Hz, 20kHz (soffit mounted)
Horizontal Dispersion :
±80°, Coherent
Vertical Dispersion :
±10°, Coherent
Max. Continuous SPL (1 metre) :
118dB
Crossover Frequencies :
380Hz, 3.5kHz
Input Connectors :
Male XLR
Input Sensitivity :
2V
Input Impedance :
Balanced > 10kΩ
Amplifier Output :
Bass 275+275W, Mid 200W, High 100W
Filters :
Even Order Critically Damped
Overload Protection :
Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators :
Power On indicator, Gain Reduction warning
LF EQ :
+6dB @ 40Hz
Dimensions (HxWxD) :
830 x 730 x 440mm (32.7" x 28.7" x 17.3")
Weight :
116kg / 255.2lbs
