Audient Oria
Entdecken Sie das Audient Oria Audio Interface. Perfekt für immersive Audio-Mixes wie Dolby Atmos. Unterstützt Setups bis 9.1.6. Ideal für Musik, Film, TV.
2.879,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Hersteller:
Audient
Produktinformationen "Audient Oria"
Immersive Audio Interface and Monitor Controller

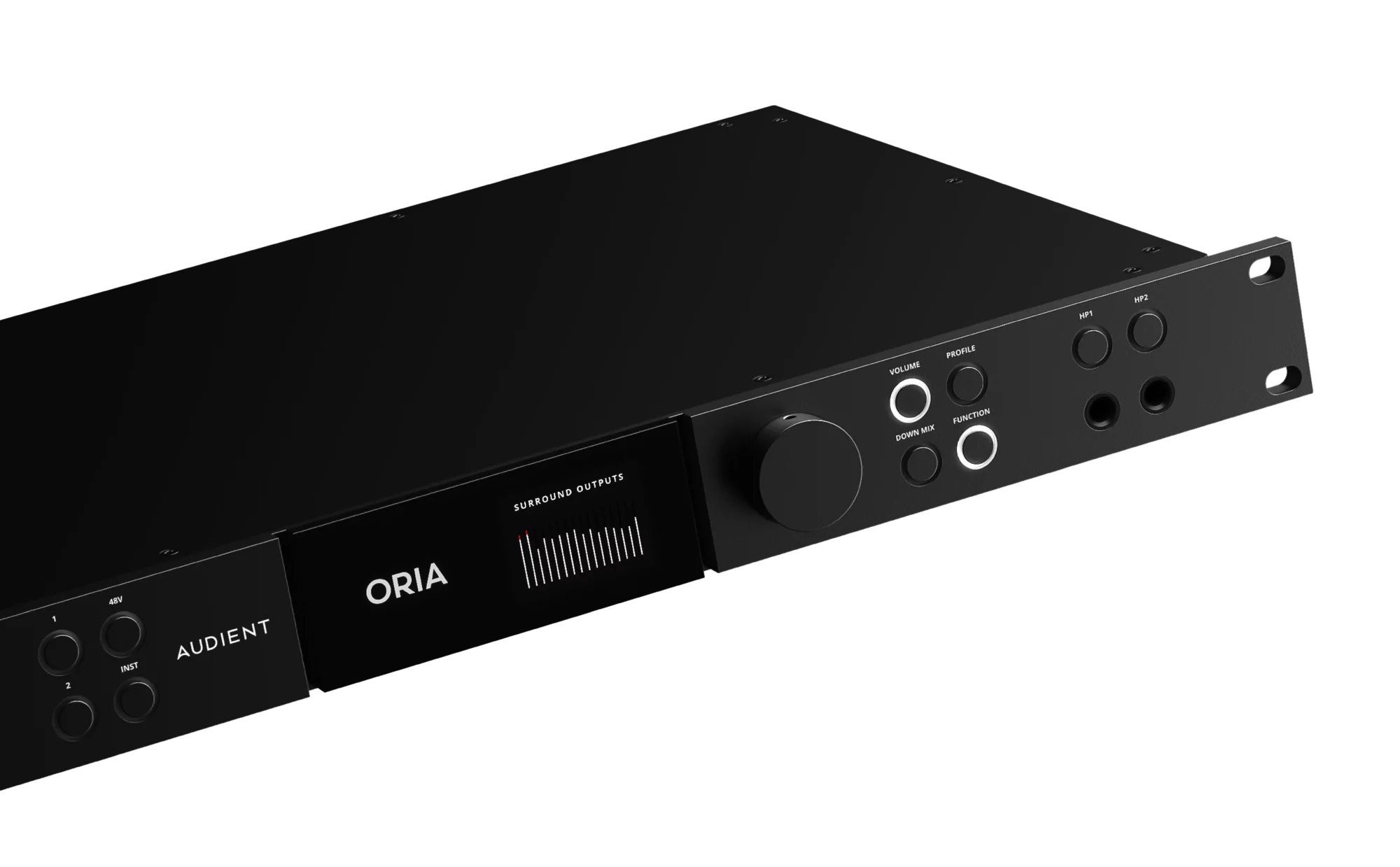

Meet ORIA, the world’s first audio interface and monitor controller designed specifically with immersive audio in mind. Built for creating immersive audio mixes for formats such as Dolby Atmos, ORIA lets you calibrate, control and monitor multi-channel speaker arrays from stereo up to 9.1.6 and everything in between. Perfect for music, film, TV, game and VR production.

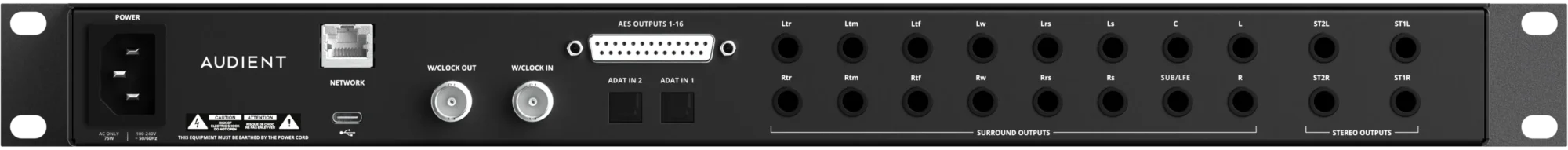

Hardware Features:
- Supports up to 9.1.6 Speaker Setups
- 2 x 16 Channel Surround Outputs (Analogue & AES)
- 2 x Stereo Line Outputs (Relay Switched)
- 2 x Independent Stereo Headphone Outputs
- 2 x Audient Mic Preamps (Mic / D.I / Line)
- 2 x ADAT Inputs • Word Clock Input
- Word Clock Output
- ORIA Motion UI
- 24 bit / 96kHz
- USB 2.0 / USB Type-C
- Sonarworks SoundID Reference Measurement Microphone Included
- Optional AoIP Card (Dante) for 16 Input channels
Software Features:
- Immersive Monitoring Control
- Input / Output Switching
- Master Volume Control
- Global Delay (lip sync)
- Individual Speaker Solo & Mute
- Speaker Group Solo & Mute
- Per Channel Metering (pre & post)
- Down Mix Cycling – Dolby Renderer Integrated
- Programmable Function Button
- iPad Control App
- Onboard Room Calibration DSP
- Per Output EQ
- Per Output Delay
- Per Output Trim
- Per Output Crossover (Bass Management)
- Profile Switching – Sonarworks Integrated
- Configurable Global Bypass
Specifications:
Microphone Inputs
Gain: 60dB
Max Input Level: +18dBu
Crosstalk: <105dB
THD+N: 0.0015% / -96dB
EIN: -129dB
CMRR: -85dB
SNR: 100dB
Frequency Response: ±0.5dB 20Hz to 40kHz
Input Impedance: 1.5kΩ Balanced
Line Inputs
Gain: -10dB to +50dB
Max Input Level: +18dBu
THD+N: 0.0015% / -96dB
Input Impedance: 4.7kΩ Balanced
D.I / Instrument Input
Gain: 60dB
Max Input Level: +18dBu
THD+N: 0.16%
SNR: 100dB
Frequency Response: ±0.5dB 20Hz to 40kHz
Input Impedance: 370kΩ Unbalanced
Line Outputs
Lineup Level: +18dBu
THD+N: 0.0006%, -105dB
Dynamic Range: 126.5dB
Crosstalk: -123dB
Frequency Response: ±0.3dB 10Hz to 40kHz
Output Impedance: <100Ω Balanced
Headphone Outputs
Lineup Level: +18dBu
THD+N: 0.0007% (-103dB)
Dynamic Range: 124dB
Crosstalk: -115dB
Frequency Response: ±0.25dB 10Hz to 40kHz
Output Impedance: <50 Ω Unbalanced
Max Level @ 30R: 5.47V Peak, 3.87Vrms, 997mW
Max Level @ 60R: 7.4V Peak, 5.29Vrms, 912mW
Max Level @ 600R: 8.6V Peak, 6.09Vrms, 123mW
USB-C
Connector: USB Type C
Included Cable: USB Type-C to Type-C
Number of Input Channels: 34 (2x Analogue, 16 Digital, 16 AOIP*)
Number of Output Channels: 38 (20 Line Outs, 2x Stereo Headphone Outs, 16x AES)
*With AOIP card fitted
Digital Inputs
ADAT 16 Channels: 44.1kHz to 48kHz
ADAT 8 Channels (SMUX): 88.2kHz to 96kHz
Digital Outputs
AES Outputs: 16 Audio Channels (8x AES Data Streams)
Word Clock Input and Output
Word Clock: 44.1kHz to 96kHz
DSP Latency
Round Trip:
44.1kHz – 6.5ms
48kHz – 6.3ms
88.2kHz – 5.5ms
96kHz – 5.4ms
AOIP (Optional Dante Expansion Card)
AOIP Inputs: 16 (44.1kHz to 96kHz)
Power Supply
Input Voltage: 85 – 264 VAC
Input Frequency: 47 – 63Hz
