Hochauflösende Displays für Audio-PCs

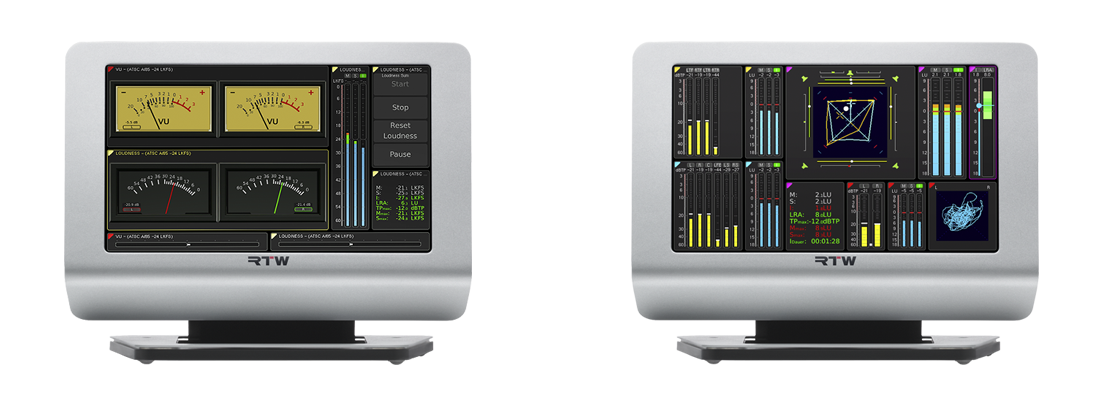

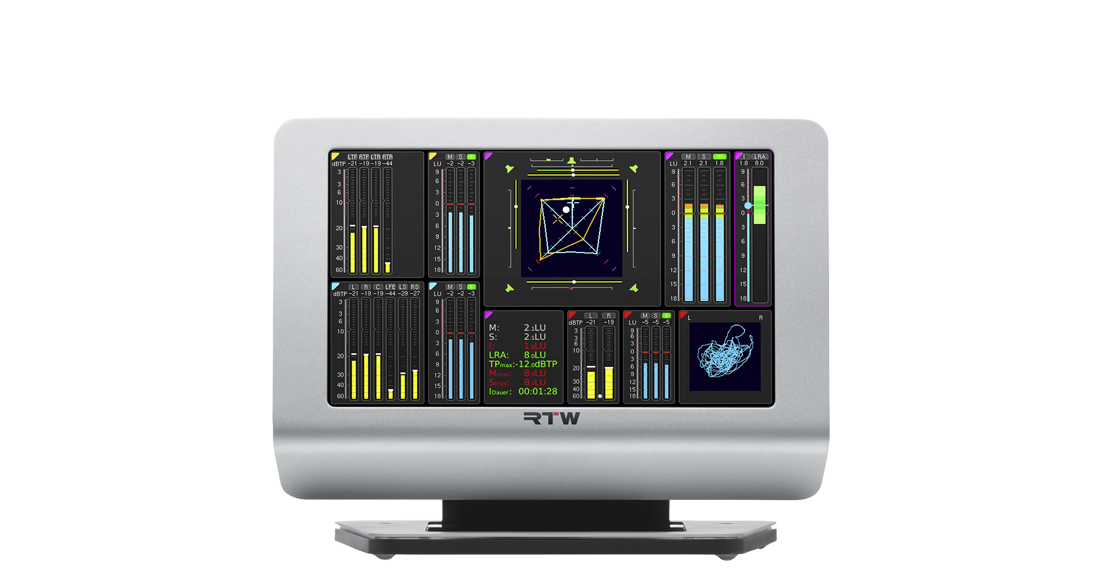

RTW TouchMonitor TM7 (Studio)

Setting New Standards and Space-saving: TouchMonitor TM7 7" Desktop TouchMonitor for Post Production, TV Broadcast and Video EditingFeaturesEasy and fast touch screen control with comfortable onscreen helpHighly flexible screen layout options with scalable instrumentPowerful DSP platform for parallel display of multiple instruments16 channel audio interfacing including analog, AES3 and AES3id (depending on hardware version)3G-SDI interface for audio signals of 3G/HD/SD SDI data streams (depending on hardware version)Models with Dante™ or Ravenna/AES67 and ST 2110 AoIP connectivity for up to 32 channelsFully scalable, modular software approach for flexible configuration and easy on-site upgradesEthernet/LAN, USB, VGA and GPIO ports7" touch screen 16 : 9 TFTTable-top unit, approx. 198 x 138.5 (163) x 46 (95) mm, W x H x D (with table-stand), incl. mains adapterFlush mount versions available (please contact our sales department)Standard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)Other software modules available as optionsFor more Information please visit manufacturers webpage

4.759,00 €*

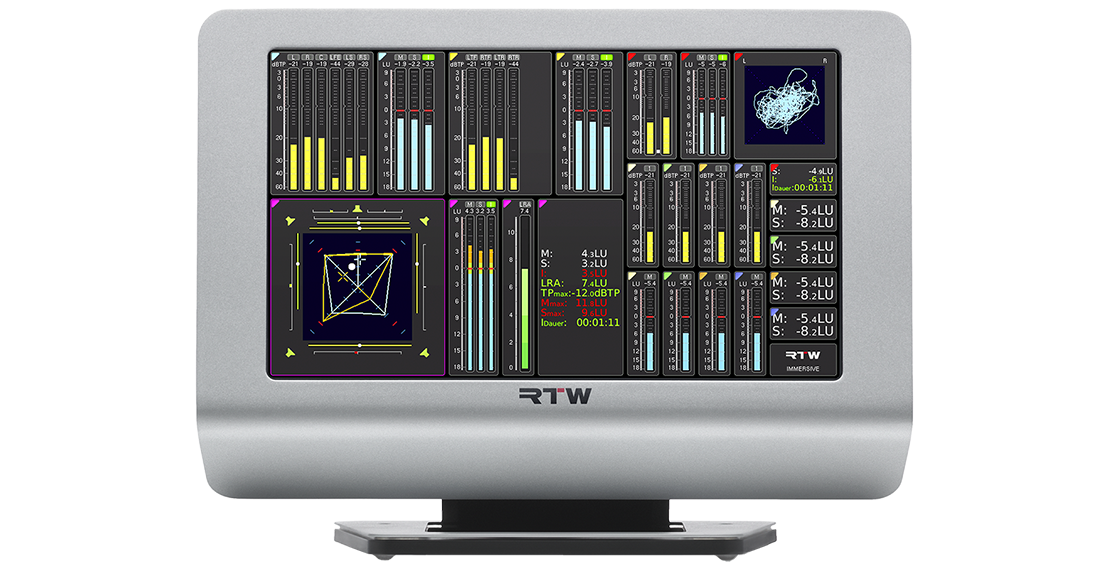

RTW TouchMonitor TM9 (Studio)

Setting New Standards: TouchMonitor TM99" Desktop TouchMonitor for Post Production, TV Broadcast and Video EditingFeaturesEasy and fast touch screen control with comfortable onscreen helpHighly flexible screen layout options with scalable instrumentPowerful DSP platform for parallel display of multiple instruments16 channel audio interfacing including analog, AES3 and AES3id (depending on hardware version)Optional 3G-SDI interface for audio signals of 3G/HD/SD SDI data streamsModels with Dante™ or Ravenna/AES67 and ST 2110 AoIP connectivity for up to 32 channelsFully scalable, modular software approach for flexible configuration and easy on-site upgradesEthernet/LAN, USB, VGA and GPIO ports9" touch screen 16 : 9 TFTTable-top unit, approx. 245 x 165.5 (185.5) x 46.5 (95) mm, W x H x D (with table-stand), incl. mains adapterFlush mount versions available (please contact our sales department)Standard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)Other software modules available as optionsFor more Information please visit manufacturers webpage

5.649,00 €*

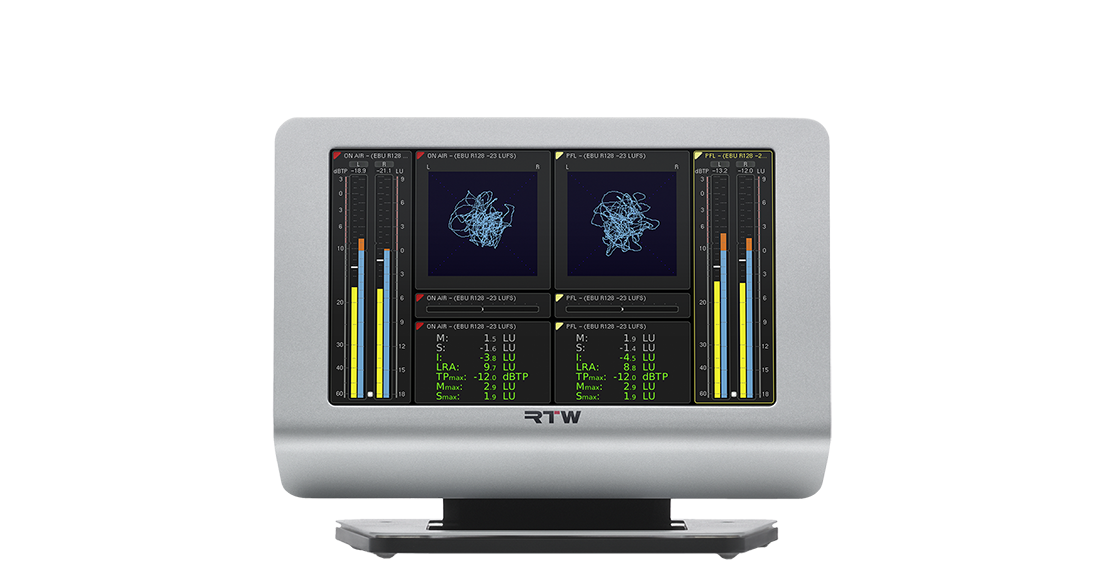

RTW TouchMonitor TMR7

Loudness in Radio Broadcasting: TouchMonitor TMR77" Desktop TouchMonitor for Radio ProductionFeaturesEasy and fast touch screen control with comfortable onscreen helpHighly flexible screen layout options with scalable instrumentPowerful DSP platform for parallel display of multiple instruments2 AES3 audio inputs and 2 outputs via XLR (4 channels)Ethernet/LAN, USB, VGA and GPIO ports7" touch screen 16 : 9 TFTFully scalable, modular software approach for flexible configuration and easy on-site upgradesStandard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)Table-top or panel-mount (OEM) unitOther software modules available as optionsCompletely configured models for direct useFor more Information please visit manufacturers webpage

3.689,00 €*
