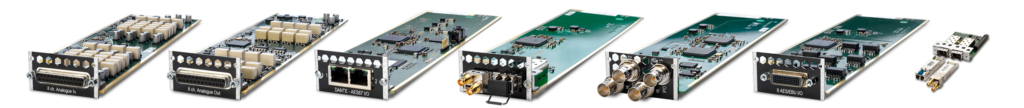

128 ch. Dante/AES67 Card w. SRCOptional expansion CARD for installation in the cards slots on AX64, AX Center, AX32 and
Penta Base units. Cables not included. 128 ch Dante/AES67 Interface128 Channels in and out8 cards = 1024 channelsBuilt-in Sample Rate ConverterEnables connection between unsynchronised
Dante/AES67 networksEnables connection between networks with different sample ratesSupport for Dante Domain ManagerSupport for AES67 with SAPNetwork delay setting up to 21 msec.

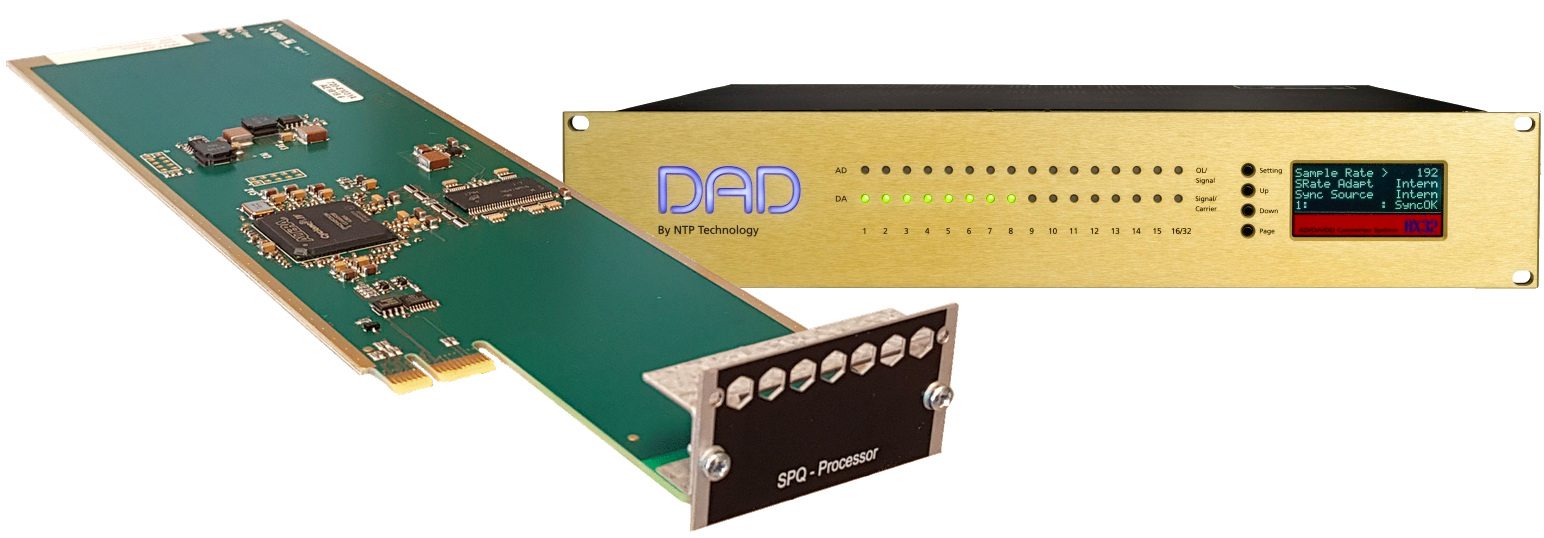

128 ch. SPQ - Speaker EQ and delay Card
Processor card with no I/O connectivityOptional expansion CARD for installation in the cards slots on AX64, AX Center, AX32 and
Penta Base units. Cables not included. SPQ ProcessorProgrammable delay for up to 128 ch.Individual delay pr. channel128 ‘channel-seconds of delay’128 ch. can be delayed up to 1 sec.1 ch. Can be delayed up to 128 sec.Or any combination in-betweenDelay can be set in steps of 1 sampleSuitable to achieve lipsync
8 AES3 I/O Card w. SRC w/ LFH I/O connector. (See Break out cables)Optional expansion CARD for installation in the cards slots on AX64, AX Center, AX32 and
Penta Base units. Cables not included.
8 AES Interface8 x AES I/O16 channels in and out8 cards = 128 channels in and outBuilt-in Sample Rate Converter on inputSample rates from 44.1 to 192 kHz
8 ch. Pristine AD Line Card
w/ DB25 Tascam std. connectorOptional expansion CARD for installation in the cards slots on AX64, AX Center, AX32 and
Penta Base units. Cables not included.
Analog InputsTwo card types8 ch. LINE input8 ch. MIC/LINE inputCards are physically identicalLINE card can be upgraded to MIC/LINE by licenseMIC/LINE card provides:Phantom powerMic pre gainPhase invert
Selectable max. line input level +9 dBu to +30 dBu in steps of 0.1 dB
8 ch. Pristine AD Mic/Line Card
w/ DB25 Tascam std. connectorOptional expansion CARD for installation in the cards slots on AX64, AX Center, AX32 and
Penta Base units. Cables not included.Analog InputsTwo card types8 ch. LINE input8 ch. MIC/LINE inputCards are physically identicalLINE card can be upgraded to MIC/LINE by licenseMIC/LINE card provides:Phantom powerMic pre gainPhase invert
Selectable max. line input level +9 dBu to +30 dBu in steps of 0.1 dB
8 ch. Pristine DA Card
w/ DB25 Tascam std. connectorOptional expansion CARD for installation in the cards slots on AX64, AX Center, AX32 and
Penta Base units. Cables not included.Analog InputsTwo card types8 ch. LINE input8 ch. MIC/LINE inputCards are physically identicalLINE card can be upgraded to MIC/LINE by licenseMIC/LINE card provides:Phantom powerMic pre gainPhase invert
Selectable max. line input level +9 dBu to +30 dBu in steps of 0.1 dBAnalog Outputs8 ch. LINE outputSelectable max. Output level+9 dBu to +24 dBu in steps of 0.1 dB
Dual 3G/HD/SD-SDI emb/deembedder Card w. SRC CARD-2SDI 1.980
w/ BNC I/OOptional expansion CARD for installation in the cards slots on AX64, AX Center, AX32 and
Penta Base units. Cables not included.
Dual SDI Embedder/De-Embedder2 x SDI Embedder/de-embedder16 channels pr. SDI8 cards = 16 SDI Embedder/de-embedderSupports SD, HD and 3G SDIBuilt-in Sample Rate ConverterRouting of single channels
Dual MADI I/O Card, w. SRC
2 SFP slots, SFP modules not included (See MODULE OPTIONS)Optional expansion CARD for installation in the cards slots on AX64, AX Center, AX32 and
Penta Base units. Cables not included.
Dual MADI Interface2 x MADI I/O2 x 64 channels8 cards = 1024 channelsBuilt-in Sample Rate Converter on inputChoice of physical interfaceSelect type of SFP moduleOptical, MM or SMCoax Redundant mode Auto switch-over in case of signal loss
Allgemeine Beschreibung
MOM ist der perfekte Begleiter, wenn Sie die Monitor-Controller-Funktionen des Avid MTRX, MTRX Studio, DAD AX32 oder NTP Penta 721s nutzen.
MOM ist eine Fernbedienung für das Pro|Mon Monitorprofil in der DADman Steuerungssoftware. Sie verfügt über 10 frei programmierbare Tasten, einen Drehregler und einen GPI-Eingang für einen externen Schalter. Sie können fast jede Funktion des Monitorprofils einer beliebigen Taste des MOM zuweisen, so dass Sie es leicht für Ihre speziellen Anforderungen konfigurieren können. Darüber hinaus bietet das MOM 4 Tastenebenen mit insgesamt 40 programmierbaren Tasten.
Mit einem Gewicht von 2 Pfund ist das MOM robust und bleibt an seinem Platz, ist aber gleichzeitig kompakt genug, um keinen wertvollen Platz auf dem Schreibtisch zu beanspruchen. Der Drehregler für die Lautstärkeregelung wurde sorgfältig für eine hervorragende Haptik entwickelt und verfügt über farbige LEDs, die die Lautstärkeeinstellung in 0,5 dB-Schritten anzeigen.
Während er in Kombination mit der DADman-Software perfekt funktioniert, zeigt sich seine wahre Stärke in Verbindung mit EUCON-Bedienoberflächen wie dem Avid Dock, S4, S6 oder sogar der kostenlosen Control-App, da der MOM-Betrieb mit diesen Geräten synchronisiert ist. Wählen Sie einfach z.B. eine Quelle auf dem Dock aus und die entsprechende Taste auf dem MOM leuchtet auf und umgekehrt, was Sie auf dem MOM tun, wird auch auf dem Dock reflektiert.
Sie können das MOM aber nicht nur in Kombination mit EUCON-Bedienoberflächen verwenden, sondern auch mehrere MOMs auf demselben System einsetzen. Dies ist besonders praktisch, wenn Sie mehrere Arbeitsplätze oder Abhörpositionen haben, z. B. einen Tontechniker- und einen Regieplatz, da Sie das MOM dort platzieren können, wo es benötigt wird.
Das MOM verfügt auch über einen GPI-Eingang, der für einen externen Schalter verwendet werden kann, z. B. einen Fußschalter oder einen separaten Schalter am Pult. Die Funktion des GPI-Eingangs kann genau wie die der Tasten programmiert werden.
Sie können das MOM entweder über PoE mit Strom versorgen, was die Installation sehr einfach macht, oder über ein mitgeliefertes Netzgerät.
Das MOM wird in Dänemark hergestellt und besticht durch sein schlankes und elegantes Design, das sich in jedem Studio sehen lassen kann.
Eigenschaften
MOM bietet Ihnen alles, was Sie von einem erstklassigen Hardware-Monitor-Controller erwarten:
- Großer Drehregler in Top-Qualität- Umschalten zwischen verschiedenen Quellen- Umschalten zwischen verschiedenen Monitor-Konfigurationen (von Mono bis Atmos)- Mute/Solo einzelner Monitorkanäle- Talkback- Dimmen- Trimmen- Referenzpegel

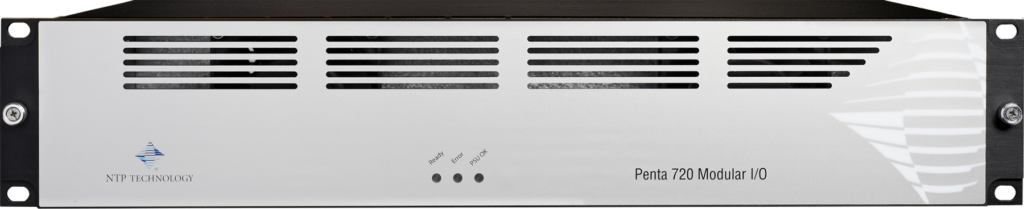

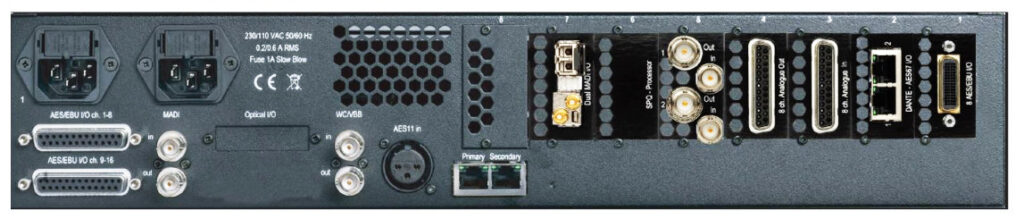

Penta 720 Modular Audio Router & Interface
2U 19" Penta 720 Base unit 1296x1296 modular Router - including the onborad functionality
bescribed above and additionally 8 CARD slots accessible from front side of the unit and
accommodates up-to 8 cards in any combination (see CARD options).Penta 720 is a new generation of audio router and audio distribution interfaces from NTP Technology, which provides a versatile and flexible interface for signal distribution of analogue and digital audio via AES/EBU, MADI, SDI SD/HD/3G embedded audio as well as routing via IP Gigabit Ethernet and optical fibre networks.Penta 720 is a 2U modular audio interface designed for use in television or radio studios, outside broadcast vehicles and public-event venues. It comes with eight channel AES3 input/output channels, MADI and two IP Audio Ethernet in/outs.Up to eight optional cards can be incorporated to match specific operational requirements. The range of available plugincards includes an eight-channel analogue input interface, eight-channel analogue output, two-channel SDI/HD/3G embedder interface and a two-channel SDI/HD/3G de-embedder interface. All cards support hot-swop. A mini-module slot is available for dual SFP MADI optical input/output module, which is also compliant to the NTP HotLink/Dual MADI format.Key Features:
8 AES/EBU I/O and 1-3 MADI I/O8 card slots for analogue and digital I/O cards supporting hot-swap
IP audio L3 Ethernet I/O powered by Dante
TCP/IP control via NTP Router Control System and Stand alone control applications for PC
Single or Dual power supplyKey Benefits:Analogue and Digital audio interfacing
Interfaceing and routing of embedded audio in video SDI SD/HD/3G signals
Flexible patching and routing of digital audio signals providing
Stand alone IP audio interface and format converter
Interface for NTP TDM router systems
Low latency, tightly synchronised, transport of uncompressed audio over IP networks using off the shelf switchesWe have the following I/O expansion cards to choose from when you consider what to add to the expansion slots:8 Channel Balanced Line A/D In8 Channel Balanced Line & Mic Preamp A/D In 8 Channel Balanced Line D/A Out Dante w built-in SRC (128 Channels)8 Channel AES Dual MADI (128 Channels)Dual SDI embedder/de-embedderFurther, you can also add 2 x 64 channels of MADI to the base unit as SFP modules.SFP/LC – Opt module multi mode 1300 nm low output LED / 647-110SFP/LC – Opt module single/multi mode 1300 nm, laser / 647-200SFP – Coax MADI tranceiver w. HD/mini-BNC / 647-400

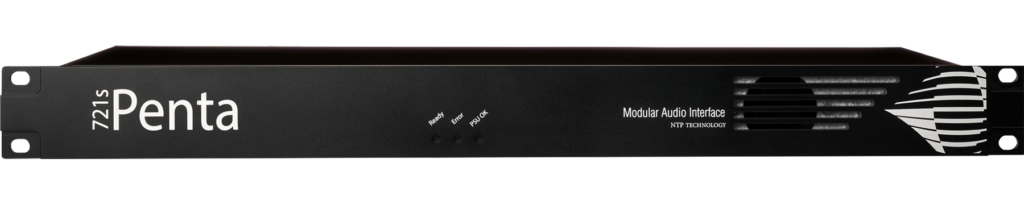

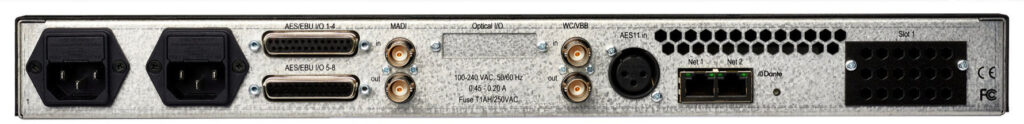

Penta 721s MADI, AES & Dante Router
1U 19" Penta 721s Base unit 400x400 modular Router - including the onborad functionality
bescribed above, a 64 ch Dante module installed (MOD-IPAUDIO-3), and additionally 1 CARD slot
and accommodates up-to 1 card of any type (see CARD options).
Penta 721s is a modular MADI, AES and DANTE router with one slot for an optional expansion card, which provides a versatile and flexible solution for signal distribution and audio routing via AES/EBU, MADI, as well as routing via IP Gigabit Ethernet and optical fibre networks. The expansion slot can be installed with any of the available expansion cards.Penta 721s is a compact 1U digital audio interface that comes with eight AES/EBU input/output channels, MADI, Dante IP Audio Ethernet in/outs and Pro|Mon as standard, as well as an optional mini-module slot with dual SFP MADI optical in/out connection.With Penta 721s you can route to and from any of the digital interfaces on the unit. Further, one optional Penta expansion card can be installed in the unit to hold additional Dante, MADI or AES connections. It can also add Analog inputs or outputs., SDI or Delay processing to the package.Key Features:64 Dante IP audio I/O channelsSupport for AES67 with SAPRouting of single channels8 AES/EBU I/O and 1 BNC MADI I/OOptional Mini module with 2 MADI I/O via SFPPro|Mon monitor control functionalityIP audio L3 Ethernet I/O powered by DanteTCP/IP control via DADman software, Penta 615 control panels panels or the NTP RCCore control systemOne slot for Penta expansion cards 8 AES/EBU I/O and 1-3 MADI I/OKey Benefits:Flexible patching and routing of digital and analogue audio signals providingStand alone IP audio interface and format converterLow latency, tightly synchronised, transport of uncompressed audio over IP networks using off the shelf switchesCompact solution with redundant power supplyInterface for NTP TDM router systemsWe have the following I/O expansion cards to choose from when you consider what to add to the expansion slot:8 Channel Balanced Line A/D In8 Channel Balanced Line & Mic Preamp A/D In8 Channel Balanced Line D/A OutDante w built-in SRC (128 Channels)8 Channel AESDual MADI (128 Channels)Dual SDI embedder/de-embedderFurther, you can also add 2 x 64 channels of MADI to the base unit as SFP modules.SFP/LC – Opt module multi mode 1300 nm low output LED / 647-110SFP/LC – Opt module single/multi mode 1300 nm, laser / 647-200SFP – Coax MADI tranceiver w. HD/mini-BNC / 647-400
Features
Thunderbolt 3 interface, with 256 Bidirectional Channels at 48 & 96 kHz, 128 channels at 192 kHz and 64 channels at 384 kHz.
Main and expansion Thunderbolt 3 Port w. 15W Power Source Each. Both of the two Thunderbolt 3 ports can function as main and expansion port.
Audio Drivers for macOS and Windows.
MADI interface on BNC connectors with 64 Bidirectional Channels at 48kHz, 32 channels at 96kHz, 16 channels at 192 kHz and 8 channels at 384 kHz.
Dual ADAT interface on TosLink Light pipes with 16 Bidirectional Channels at 48kHz, 8 channels at 96kHz, and 4 channels at 192 kHz. Configurable also as 2 Ch. S/PDIF input.
DANTE AoIP interface via Ethernet with 256 Bidirectional Channels at 48 and 96kHz, 128 channels at 192 kHz.
Module Slot for optional dual Madi module via 2 x SFP (LC Fiber or HD/BNC Coax) connectors with 128 Bidirectional Channels at 48kHz, 64 channels at 96kHz, 32 channels at 192 kHz and 16 channels at 384 kHz.
wo card slots available for DAD I/O Expansion Cards.
Word Clock I/O, and Video Black and Burst input on BNC connectors.
128 channels speaker processing with a total of 1024 filters and delay.
Summing Processor 64 Output / 512 Input Busses.
Internal Router: 4096 x 4096.
32bit Floating Point Processing.
DADman control software for macOS and Windows connecting via Ethernet or Thunderbolt.
Pro|Mon monitor control functionality and integration for Avid Eucon Enabled Devices via DADman.
19” Rack Unit 1U Height.
Technical Overview
2 Ch. microphone or instrument input
Dual stereo headphone output
Dual stereo monitor output
A/D, D/A and D/D Converter with sample rates from 44,1 to 384 kHz and DSD
Up to 984 Input and Output Channels
Router and Monitoring Interface
Thunderbolt 3 I/O (256 Ch.)
Dante AoIP I/O (256 Ch.)
MADI I/O (64 ch.)
ADAT I/O (16 Ch.) / SPDIF (2 ch.)
2 Slots for Optional Multi-Format DAD I/O Cards
512x64 Ch. Pro|Mon Summing and Speaker 1024 ch. EQ Processing

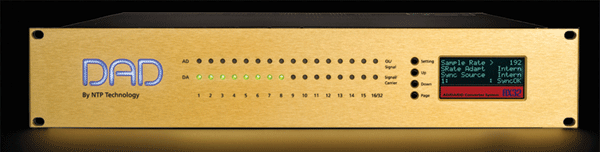

Das AX32 verfügt über 8 AES3-Eingänge und -Ausgänge auf zwei D25-Anschlüssen
mit insgesamt 16 Monokanälen sowie MADI-Ein- und -Ausgänge auf BNC-Anschlüssen mit insgesamt 64 Monokanälen.Es bietet auch eine Schnittstelle für die IP-Ethernet-Steuerung. Wenn Sie das AX32 als 64-Kanal-Interface für Pro Tools (TM) verwenden möchten, können Sie das MTRX von Avid einsetzen, das im Wesentlichen ein AX32 mit zusätzlicher DigiLink-Konnektivität ist. OPTIONALE E/A-SCHNITTSTELLENIm Chassisrahmen stehen
insgesamt 8 Kartensteckplätze zur Verfügung. Davon können Sie 6 Steckplätze für analoge Karten mit jeweils 8 Kanälen nutzen, was insgesamt bis zu 48 AD/DA Ein- und Ausgänge ermöglicht.Folgende Karten
stehen zur Verfügung: - 8-Kanal
Line Pristine
A/D-Karte - 8-Kanal Mic/Line Pristine
A/D-Karte - 8-Kanal Pristine-D/A-Karte - Dante 128-Kanal-E/A-Karte mit SRC - Dual SDI/HD/3G 2x16 kanalige Emb/Deembed-Karte mit SRC - Du erhältst eine 8-Kanal AES3-E/A-Karte mit
SRC und eine doppelte MADI-128-Kanal-I/O-Karte.Das Mainframe-Gehäuse kann um weitere Komponenten erweitert werden, wie zum Beispiel
Dante IP-Audio auf zwei redundanten RJ45-Anschlüssen mit 64 Mono-E/A-Kanälen
und 2 x 64 MADI-Kanälen auf optischen oder koaxialen Anschlüssen.Schließlich können Sie einen oder mehrere Erweiterungssteckplätze für die SPQ Speaker Processing DSP-Karte zuweisen. Diese Karte bietet keine zusätzlichen Ein- oder Ausgänge, sondern ermöglicht die Anwendung von 1.024 individuellen EQ-Filtern zur Raumkorrektur der Lautsprecher auf bis zu 128 Kanälen.

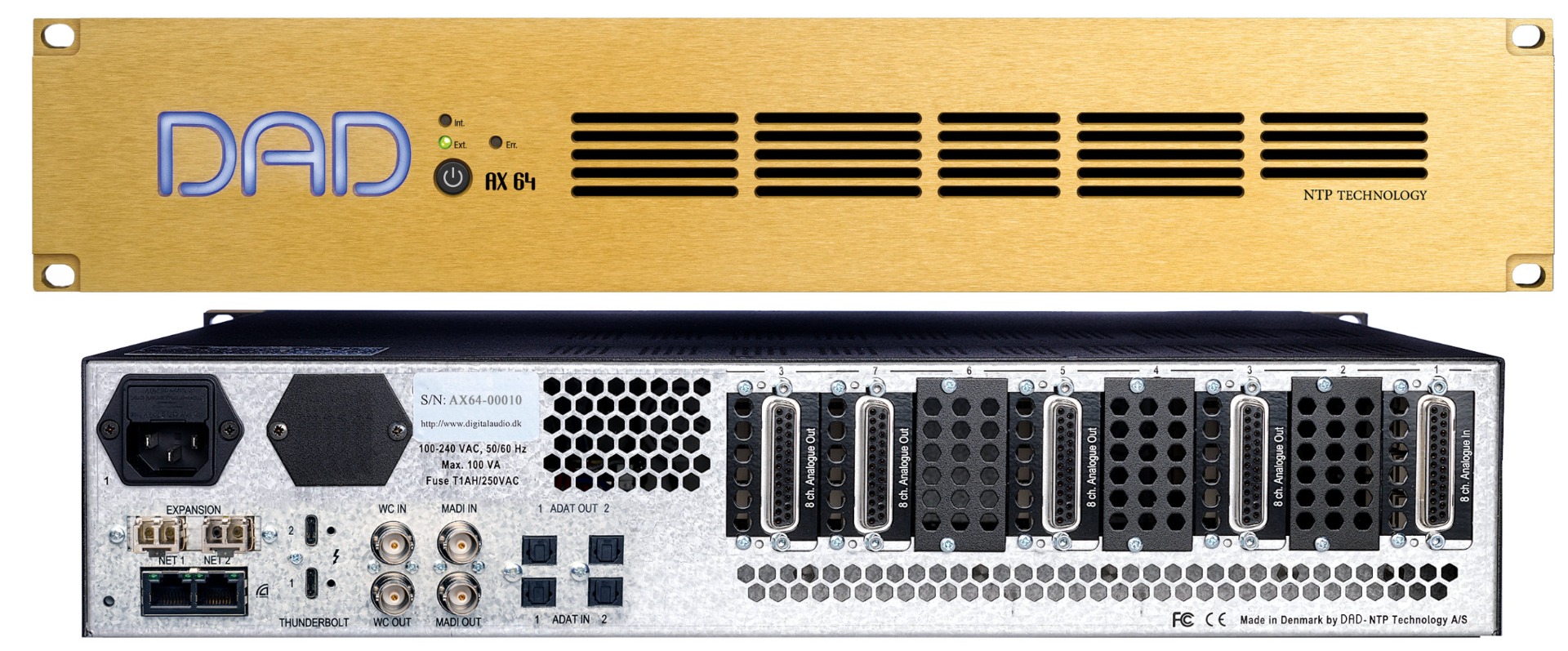

2U 19" Rack Thunder|Core 1872x1872 digital Router and monitoring interface - including the
ONBOARD functionality described above with additionally 8 CARD slots which can accommodate
any combination up-to 8 AD, DA or digital cards (see CARD options)
Up to 8 analogue cards can be installed, providing 64 analogue input or output audio channels with the renowned DAD high-end sonic quality.
With tons of channels, a wide palette of digital connectivity, built-in SPQ processing, Eucon control compatibility, internal summing engine and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and is suited for just about any application.
In short, AX64 is the ultimate modular multi-format interface, which is ready to take on a wealth of tasks in the Post Production, Studio, Live Music and Installed Audio spheres.

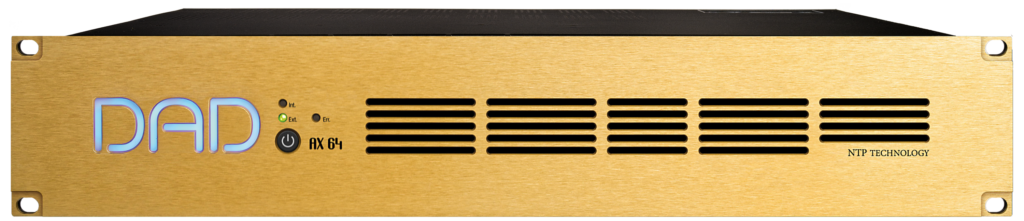

Overview
• 1,744 Input and Output Channels• Multi-Format Audio A/D, D/A and D/D Converter• Digital Router and Monitoring Interface (Analog expansion available, but not included)• Thunderbolt 3 I/O (256 Ch.)• Dante AoIP I/O (256 Ch.)• MADI I/O (64 Ch.)• MADI SFP I/O Module Option Available (128 Ch. – SFP not included)• ADAT I/O (16 Ch.)• 8 Slots for Optional Multi-Format DAD I/O Cards• 512x64 Ch. Pro|Mon Summing and Speaker EQ Processing
Features
The basic I/O configuration for the AX64 multi-format interface is:
• 2 Thunderbolt 3 Ports (each w. 15W power)• 256 Bidirectional Channels at 48 & 96 kHz• ASIO / Core Audio Thunderbolt PCIe Drivers• MADI/BNC-Optional 2 x SFP (LC fiber or HD/BNC coax)• ADAT /Lightpipe (16 Ch.)• DANTE: 256 Ch. at 48 kHz, 128 Ch. at 96kHz, 64 Ch. at 192 kHz (IP Core)• WC I/O • SPQ: 64 Ch. with 16 Filters• Pro|Mon Support• Summing Processor 64 Output / 512 Input Busses• Internal Router: 4096 x 4096• 32bit Floating Point Processing• 8 Slots for Any Available Expansion Cards• Avid Eucon Enabled Devices via DADman• Apple Silicon M1 and Intel Compatible Software• Control via Ethernet or Thunderbolt Connection• Dual 110/240V AC Power Connection as Option
Currently Available Expansion Cards:
• 8 Analogue Inputs (Line Signal)• 8 Analogue Inputs (Mic Preamps)• 8 Analogue Outputs (Line Signal)• Dante Card (128 Ch.)• Dual MADI Card (2 x 64 Ch.)• AES Card (16 Ch.)• Dual MADI Module (2 x 64 Ch.)
AX64 Base unit, 8 slot Multi Format Modular Audio Interface with dual power socket for redundant
PSU
Up to 8 analogue cards can be installed, providing 64 analogue input or output audio channels with the renowned DAD high-end sonic quality.
With tons of channels, a wide palette of digital connectivity, built-in SPQ processing, Eucon control compatibility, internal summing engine and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and is suited for just about any application.
In short, AX64 is the ultimate modular multi-format interface, which is ready to take on a wealth of tasks in the Post Production, Studio, Live Music and Installed Audio spheres.
Overview
• 1,744 Input and Output Channels• Multi-Format Audio A/D, D/A and D/D Converter• Digital Router and Monitoring Interface (Analog expansion available, but not included)• Thunderbolt 3 I/O (256 Ch.)• Dante AoIP I/O (256 Ch.)• MADI I/O (64 Ch.)• MADI SFP I/O Module Option Available (128 Ch. – SFP not included)• ADAT I/O (16 Ch.)• 8 Slots for Optional Multi-Format DAD I/O Cards• 512x64 Ch. Pro|Mon Summing and Speaker EQ Processing
Features
The basic I/O configuration for the AX64 multi-format interface is:
• 2 Thunderbolt 3 Ports (each w. 15W power)• 256 Bidirectional Channels at 48 & 96 kHz• ASIO / Core Audio Thunderbolt PCIe Drivers• MADI/BNC-Optional 2 x SFP (LC fiber or HD/BNC coax)• ADAT /Lightpipe (16 Ch.)• DANTE: 256 Ch. at 48 kHz, 128 Ch. at 96kHz, 64 Ch. at 192 kHz (IP Core)• WC I/O • SPQ: 64 Ch. with 16 Filters• Pro|Mon Support• Summing Processor 64 Output / 512 Input Busses• Internal Router: 4096 x 4096• 32bit Floating Point Processing• 8 Slots for Any Available Expansion Cards• Avid Eucon Enabled Devices via DADman• Apple Silicon M1 and Intel Compatible Software• Control via Ethernet or Thunderbolt Connection• Dual 110/240V AC Power Connection as Option
Currently Available Expansion Cards:
• 8 Analogue Inputs (Line Signal)• 8 Analogue Inputs (Mic Preamps)• 8 Analogue Outputs (Line Signal)• Dante Card (128 Ch.)• Dual MADI Card (2 x 64 Ch.)• AES Card (16 Ch.)• Dual MADI Module (2 x 64 Ch.)
Core 256 may not take up much space, but the power you can squeeze out of this little box might just make your jaw drop to the floor. With tons of channels, a wide palette of digital connectivity, built-in SPQ processing, Eucon control compatibility, internal summing engine and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and for just about any application.
However, there is one application that should be emphasized in particular: Core 256 is simply the perfect Dante and MADI interface for Dolby Atmos® RMU.
The size and shape of Core 256 fits nicely for sharing a 1U rack shelf with a Mac Mini running Dolby Atmos® Renderer, Dolby Atmos® Production Suite or Dolby Atmos® Mastering Suite. For immersive audio post production facilities, this solution will represent the missing link that streamlines and optimizes the multichannel workflows seamlessly.
Features
The basic I/O configuration for the Core 256 interface is:
• 2 Thunderbolt 3 Ports (each w. 15W power)• 256 Bidirectional Channels at 48 & 96 kHz• ASIO / Core Audio Thunderbolt PCIe drivers• MADI/BNC-Optional 2 x SFP (LC fiber or HD/BNC coax)• ADAT /Lightpipe (16 Ch.)• DANTE: 256 Ch. at 48 kHz, 128 Ch. at 96 kHz, 64 Ch. at 192 kHz (IP Core)• WC I/O• SPQ: 64 Ch. with 16 Filters• Pro|Mon Support• Summing Processor 64 Output / 512 Input Busses• Internal Router: 1500 x 1500• 32bit Floating Point Processing• Avid Eucon Enabled Devices via DADman• APPLE Silicon M1 and Intel Compatible Software• Control via Ethernet or Thunderbolt Connection• 12V DC External Power (Max 60W)• ½ Rack Unit 1U Height
Further, the mini module slot can be mounted with an optional dual bidirectional MADI module with optical SFP or mini coax connectors.
