MERGING+ANUBIS Seamless Protection Switching, has been developed specifically to address the demands of broadcast facilities depending on an IP infrastructure. Incorporating client requests to go beyond the ST2110 capability of Anubis, SPS includes no compromise ST2022-7 class C and NMOS compliance. It provides the most efficient and cost-effective solution to AoIP stream monitoring and management. ST2022-7 Seamless Protection SwitchingAdding to the fantastic and constantly evolving feature set of Anubis, the Anubis SPS version features two network ports for ST2022-7 compliance. NMOSWhile all MERGING Devices can be discovered and inter connected using MERGING ANEMAN Network Manager, ANUBIS SPS (as well as all other Merging interfaces) is also capable to register itself into an NMOS server as well as comply to connection requests from a compliant NMOS Network Manager such as VideoIPath from Nevion.ANUBIS+SPS is compliant with: NMOS IS-04 (Discovery & Registration)  NMOS IS-05 (Device Connection Management) SMPTE ST2110MERGING holds strongly to its commitment to broadcasters and has been implementing all the new IP protocols into its products. As a regular participant in IP Showcase events, Merging has implemented ST2110 and AES67. Anubis SPS meets the demanding requirements of JT-NM and is self-certified. We want your trust to be based on objective quality and reliability and submitting all our products to independent testing bodies is vital to ensure interoperability. RAVENNA / AES67 Built-InUsing RAVENNA (AES67 compatible), Anubis is able to provide flexible connectivity of every single input and output across standard networks, using off-the-shelf network equipment. The future is most definitely networked audio, and Anubis provides it today. Read more about RAVENNA DC or POE powered... Or BOTH!Protect your production with not only audio network seamless switching but also power switching! Connect Anubis to both DC and POE supply. Should one fail, Anubis will switch to the other seamlessly. Accessible And Controllable RemotelyWith remote productions becoming the standard and content creators spread around the world, it is paramount to be able to quickly remote into any production device configuration and operation panels without wasting time on the phone running the user through the device. Anubis configuration, presets and features are completely accessible remotely for very fast troubleshooting and deployment. Switch Mode!There is another good news about Anubis SPS which is that it can be used in switch mode instead of “redundant ST2022-7 mode”, removing the necessity to have a network switch in scenarios where a DAW simply needs to be connected to a Horus, Hapi or Anubis, i.e. when doing a mobile recording. ANUBIS SPS – SYSTEMS INTEGRATIONAnubis SPS together with the Merging Audio Device, opens remarkable possibilities. MAD is a multi-ASIO driver (also with WDM support) that has an infrastructure option that supports ST2022-7, ST2110, NMOS and Virtual Machine control. This recognizes that centralized data centers and server-based installations are now the new normal way to manage the global nature of the broadcast industry.

MERGING+ANUBIS Seamless Protection Switching, has been developed specifically to address the demands of broadcast facilities depending on an IP infrastructure. Incorporating client requests to go beyond the ST2110 capability of Anubis, SPS includes no compromise ST2022-7 class C and NMOS compliance. It provides the most efficient and cost-effective solution to AoIP stream monitoring and management. ST2022-7 Seamless Protection SwitchingAdding to the fantastic and constantly evolving feature set of Anubis, the Anubis SPS version features two network ports for ST2022-7 compliance. NMOSWhile all MERGING Devices can be discovered and inter connected using MERGING ANEMAN Network Manager, ANUBIS SPS (as well as all other Merging interfaces) is also capable to register itself into an NMOS server as well as comply to connection requests from a compliant NMOS Network Manager such as VideoIPath from Nevion.ANUBIS+SPS is compliant with: NMOS IS-04 (Discovery & Registration)  NMOS IS-05 (Device Connection Management) SMPTE ST2110MERGING holds strongly to its commitment to broadcasters and has been implementing all the new IP protocols into its products. As a regular participant in IP Showcase events, Merging has implemented ST2110 and AES67. Anubis SPS meets the demanding requirements of JT-NM and is self-certified. We want your trust to be based on objective quality and reliability and submitting all our products to independent testing bodies is vital to ensure interoperability. RAVENNA / AES67 Built-InUsing RAVENNA (AES67 compatible), Anubis is able to provide flexible connectivity of every single input and output across standard networks, using off-the-shelf network equipment. The future is most definitely networked audio, and Anubis provides it today. Read more about RAVENNA DC or POE powered... Or BOTH!Protect your production with not only audio network seamless switching but also power switching! Connect Anubis to both DC and POE supply. Should one fail, Anubis will switch to the other seamlessly. Accessible And Controllable RemotelyWith remote productions becoming the standard and content creators spread around the world, it is paramount to be able to quickly remote into any production device configuration and operation panels without wasting time on the phone running the user through the device. Anubis configuration, presets and features are completely accessible remotely for very fast troubleshooting and deployment. Switch Mode!There is another good news about Anubis SPS which is that it can be used in switch mode instead of “redundant ST2022-7 mode”, removing the necessity to have a network switch in scenarios where a DAW simply needs to be connected to a Horus, Hapi or Anubis, i.e. when doing a mobile recording. ANUBIS SPS – SYSTEMS INTEGRATIONAnubis SPS together with the Merging Audio Device, opens remarkable possibilities. MAD is a multi-ASIO driver (also with WDM support) that has an infrastructure option that supports ST2022-7, ST2110, NMOS and Virtual Machine control. This recognizes that centralized data centers and server-based installations are now the new normal way to manage the global nature of the broadcast industry.

2000 GB SATA III - Western Digital RE4, 7k2, 128MB

Merging Techologies 4000 GB SATA III - Western Digital RE4, 7k2, 128MB

6000 GB SATA III - Western Digital Black, 7k2, 128MB

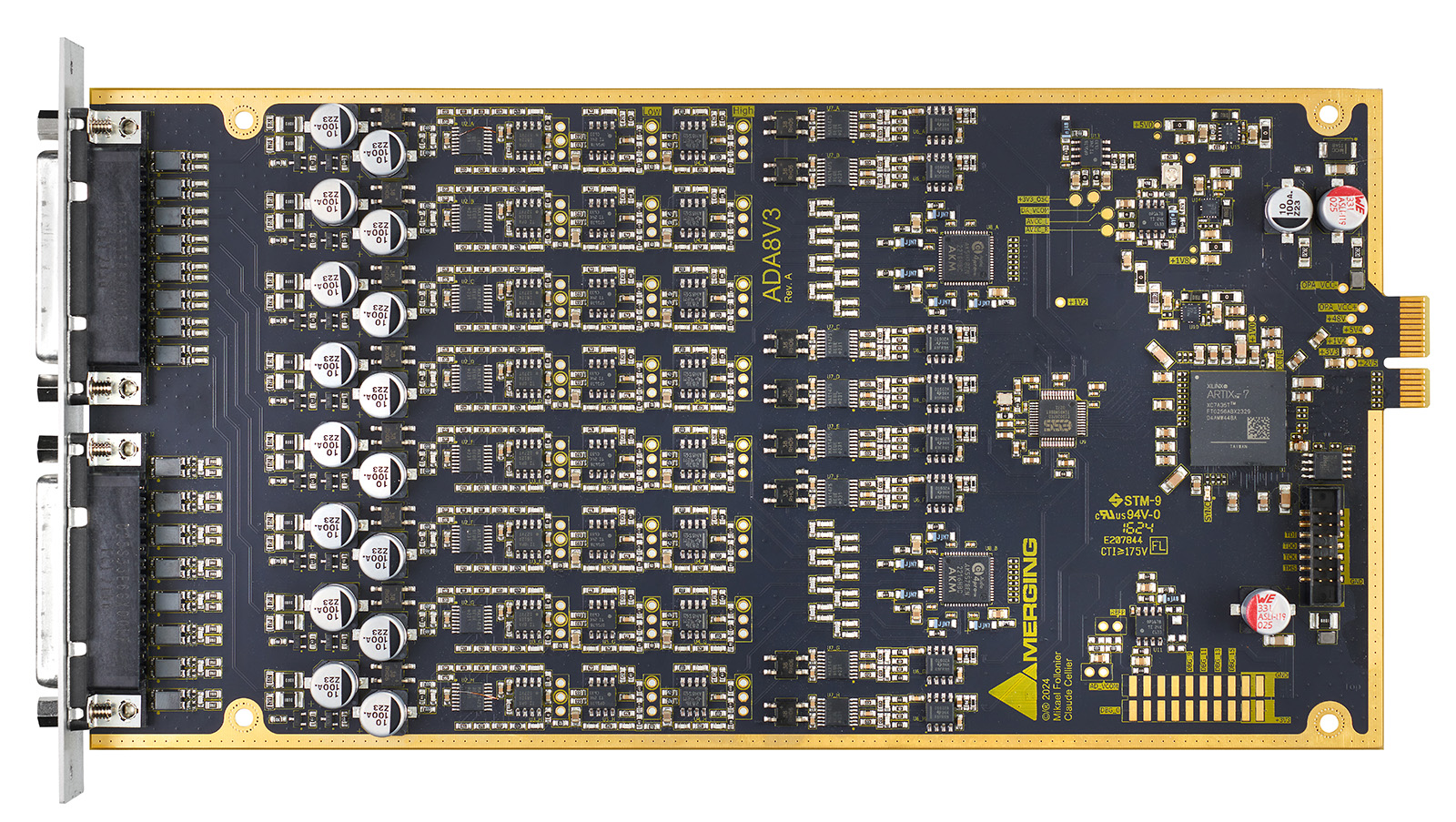

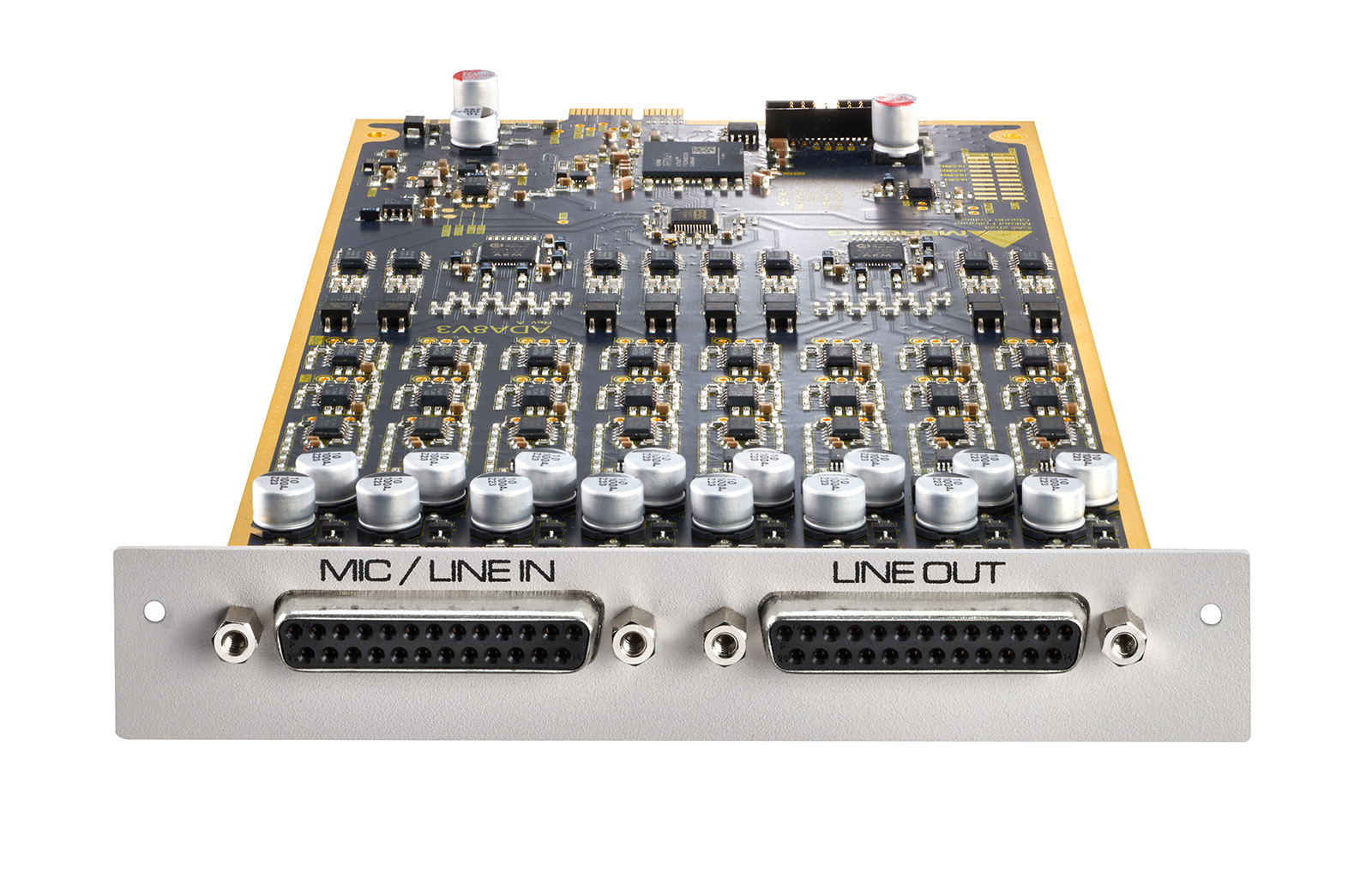

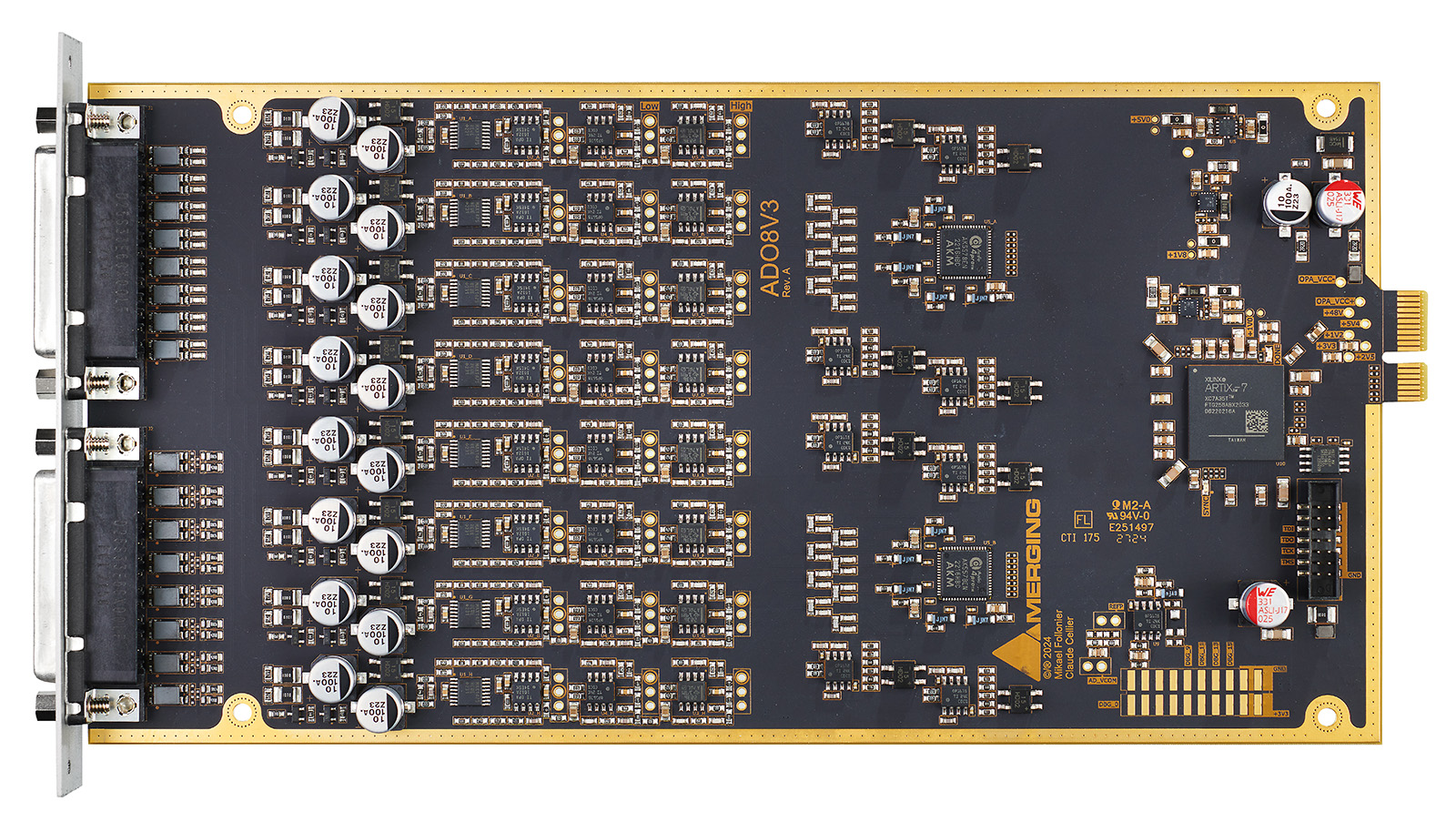

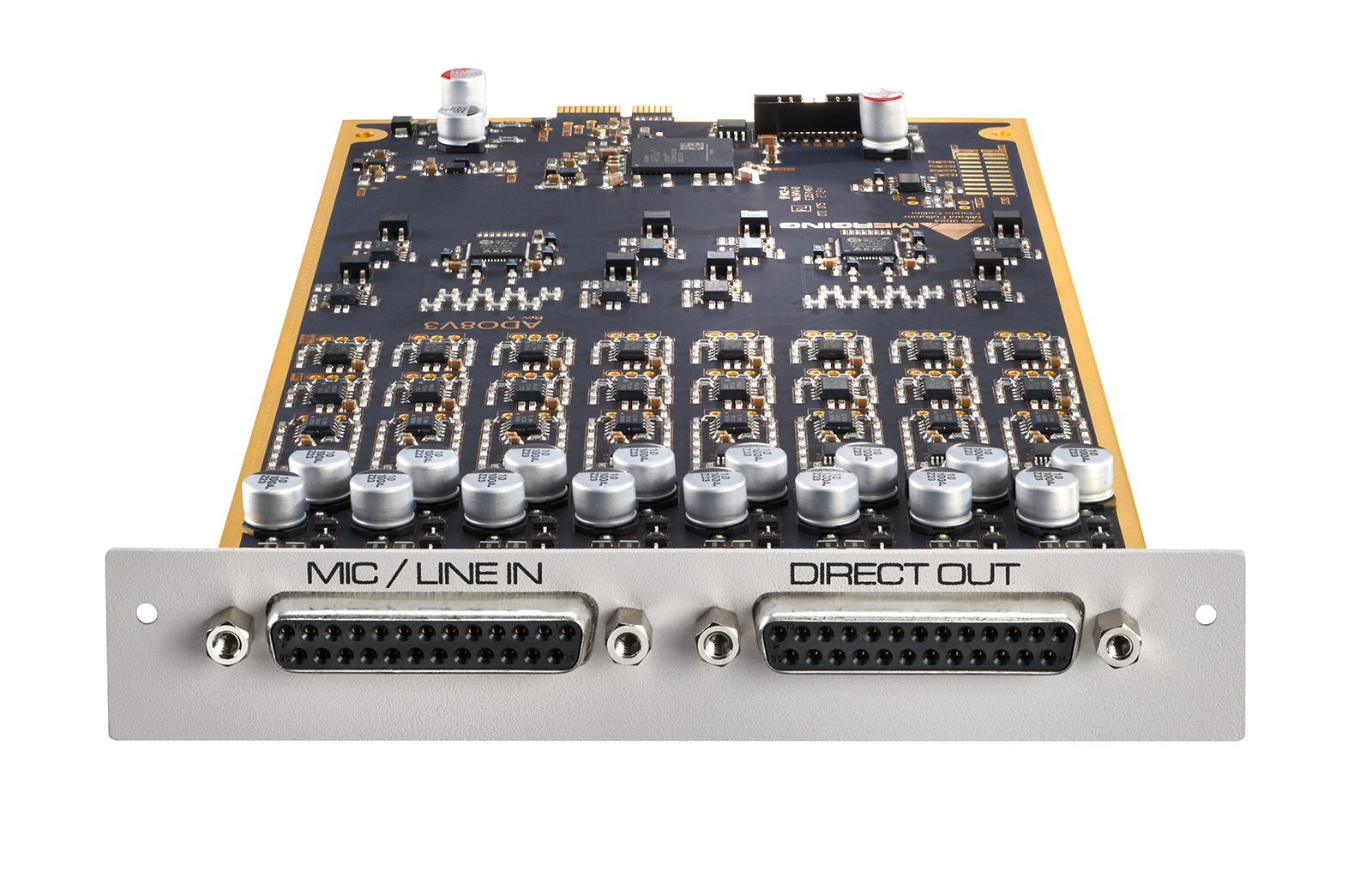

Mic Pre-Amp + ADC Mic Pre Max Input (Mic+Pad / Mic / Boost) +24 dBu / +12 dBu / +0 dBu Mic Pre Max Input (Pad On; Pad Off) > 3 kΩ; 10.4 kΩ Input Impedance (Zlo; ZHi) > 3 kΩ; 10.4 kΩ Dynamic Range (flat 20 Hz-20 kHz) > 134 dB Dynamic Range (A-weighted, typ) 136 dB Gain Range (software controlled) 0 dB to +66 dB Gain Precision ±0.2 dB Gain Step 0.5 dB THD+N Pre + A/D (20 Hz-20 kHz) @ -2 dBFS -110 dB (0.00031 %)/-112 dB (0.00025 %) Interchannel Crosstalk @ 1kHz, typ. <-125dB Interchannel Crosstalk @ 20Hz – 20 kHz < -100 dB EIN @ >40 dB Gain (150Ω Source Impedance, A-weighted, typ) -128 dBu Common Mode Rejection Rate @ 1kHz, typ. 75 dB (up to -20 dBFS) Common Mode Rejection Rate @ 20Hz – 20 kHz > 60 / 65 dB (up to -20 dBFS) Phantom Power (Software Switchable Per Channel) +48 Volts Phase Reverse Switch (Software Switchable Per Channel) Yes Low Cut filter (Software Switchable Per Channel) -12 dB/octave, 80 Hz Line Input Frequency response +0/-0.1dB @ fs = 44100 Hz 5.7 Hz - 20.5 kHz Frequency response +0/-1.0dB @ fs = 44100 Hz 1.8 Hz - 21.0 kHz Frequency response +0/-0.1dB @ fs = 96000 Hz 5.7 Hz - 43.9 kHz Frequency response +0/-1.0dB @ fs = 96000 Hz 1.8 Hz - 45.4 kHz Frequency response +0/-0.1dB @ fs = 192000 Hz 5.7 Hz - 42.1 kHz Frequency response +0/-1.0dB @ fs = 192000 Hz 1.8 Hz - 64.7 kHz Frequency response +0/-0.1dB @ fs = 384000 Hz 5.7 Hz – 40 kHz Frequency response +0/-1.0dB @ fs = 384000 Hz 1.8 Hz - 75 kHz Max Line Input for 0 dBFS +24 dBu Input Impedance 10.4 kΩ Dynamic Range (flat 20 Hz-20 kHz), ref +24 dBu > 136 dB Dynamic Range (A-weighted, typ), ref +24 dBu 138.5 dB THD+N Line+A/D (1 kHz) @ -2 dBFS, Typ. -106 dB (0.0005%)/-109 dB (0.00035%) THD+N Line+A/D (20 Hz-20 kHz) @ -2 dBFS < -106 dB Interchannel Crosstalk @ 1kHz, typ. -130 dB Interchannel Crosstalk @ 20Hz – 20 kHz < -100 dB Sensitivity Range for 0 dBFS (software controlled) -42 dBu to +24 dBu Gain Precision ±0.2 dB Gain Step 0.5 dB Common Mode Rejection Rate @ 1kHz, typ. 75 dB (up to -20 dBFS) Common Mode Rejection Rate @ 20Hz – 20 kHz > 65 dB (up to -20 dBFS) Group Delay (1FS) 5/fs Group Delay (2FS) 5/fs Group Delay (4FS) / Premium (8FS) 6/fs / 7/fs

Mic Pre-Amp + ADC Mic Pre Max Input (Mic+Pad / Mic / Boost) +24 dBu / +12 dBu / +0 dBu Mic Pre Max Input (Pad On; Pad Off) > 3 kΩ; 10.4 kΩ Input Impedance (Zlo; ZHi) > 3 kΩ; 10.4 kΩ Dynamic Range (flat 20 Hz-20 kHz) > 134 dB Dynamic Range (A-weighted, typ) 136 dB Gain Range (software controlled) 0 dB to +66 dB Gain Precision ±0.2 dB Gain Step 0.5 dB THD+N Pre + A/D (20 Hz-20 kHz) @ -2 dBFS -110 dB (0.00031 %)/-112 dB (0.00025 %) Interchannel Crosstalk @ 1kHz, typ. <-125dB Interchannel Crosstalk @ 20Hz – 20 kHz < -100 dB EIN @ >40 dB Gain (150Ω Source Impedance, A-weighted, typ) -128 dBu Common Mode Rejection Rate @ 1kHz, typ. 75 dB (up to -20 dBFS) Common Mode Rejection Rate @ 20Hz – 20 kHz > 60 / 65 dB (up to -20 dBFS) Phantom Power (Software Switchable Per Channel) +48 Volts Phase Reverse Switch (Software Switchable Per Channel) Yes Low Cut filter (Software Switchable Per Channel) -12 dB/octave, 80 Hz Line Input Frequency response +0/-0.1dB @ fs = 44100 Hz 5.7 Hz - 20.5 kHz Frequency response +0/-1.0dB @ fs = 44100 Hz 1.8 Hz - 21.0 kHz Frequency response +0/-0.1dB @ fs = 96000 Hz 5.7 Hz - 43.9 kHz Frequency response +0/-1.0dB @ fs = 96000 Hz 1.8 Hz - 45.4 kHz Frequency response +0/-0.1dB @ fs = 192000 Hz 5.7 Hz - 42.1 kHz Frequency response +0/-1.0dB @ fs = 192000 Hz 1.8 Hz - 64.7 kHz Frequency response +0/-0.1dB @ fs = 384000 Hz 5.7 Hz – 40 kHz Frequency response +0/-1.0dB @ fs = 384000 Hz 1.8 Hz - 75 kHz Max Line Input for 0 dBFS +24 dBu Input Impedance 10.4 kΩ Dynamic Range (flat 20 Hz-20 kHz), ref +24 dBu > 136 dB Dynamic Range (A-weighted, typ), ref +24 dBu 138.5 dB THD+N Line+A/D (1 kHz) @ -2 dBFS, Typ. -106 dB (0.0005%)/-109 dB (0.00035%) THD+N Line+A/D (20 Hz-20 kHz) @ -2 dBFS < -106 dB Interchannel Crosstalk @ 1kHz, typ. -130 dB Interchannel Crosstalk @ 20Hz – 20 kHz < -100 dB Sensitivity Range for 0 dBFS (software controlled) -42 dBu to +24 dBu Gain Precision ±0.2 dB Gain Step 0.5 dB Common Mode Rejection Rate @ 1kHz, typ. 75 dB (up to -20 dBFS) Common Mode Rejection Rate @ 20Hz – 20 kHz > 65 dB (up to -20 dBFS) Group Delay (1FS) 5/fs Group Delay (2FS) 5/fs Group Delay (4FS) / Premium (8FS) 6/fs / 7/fs

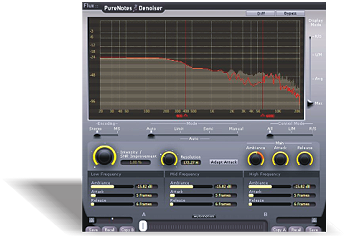

DeNoiserPyramix’s DeNoiser and DeScratcher options have been specially developed for Merging by Algorithmix to make best use of the processing power available in the system resulting in a very powerful, high quality and real-time restoration package. The DeNoiser Plug-In is a single-ended noise reduction system. This means it will operate to remove broadband noise artifacts directly from an existing signal and does not need any special encoding procedure before recording.

DeNoiserPyramix’s DeNoiser and DeScratcher options have been specially developed for Merging by Algorithmix to make best use of the processing power available in the system resulting in a very powerful, high quality and real-time restoration package. The DeNoiser Plug-In is a single-ended noise reduction system. This means it will operate to remove broadband noise artifacts directly from an existing signal and does not need any special encoding procedure before recording.Cedar Audio Restoration Suite for PyramixA full range of restoration processes for Merging Technologies' "Pyramix" systems. Remove clicks, crackle, thumps, and hiss using the best restoration tools within the Pyramix environment, and ensure that your audio is free of all unwanted sounds and noises using the latest revision of CEDAR Retouch™. DeScratcherThe De-Scratcher PlugIn effectively removes clicks and crackles from old vinyl and shellac (78rpm) records, or audio recordings tainted by switching noise, digital cross-talk, or thyristor buzz. Unlike other systems, Pyramix’s De-Scratcher is real-time and works virtually without artifacts, providing the correct setting for all parameters.

DeScratcherThe De-Scratcher PlugIn effectively removes clicks and crackles from old vinyl and shellac (78rpm) records, or audio recordings tainted by switching noise, digital cross-talk, or thyristor buzz. Unlike other systems, Pyramix’s De-Scratcher is real-time and works virtually without artifacts, providing the correct setting for all parameters.

Algorithmix ReNOVAtor for Pyramix: We recommend users to download the latest version available on their site. Cedar: Install issue on certain Vista configurations where you might not see the Cedar plug-ins after the installation process. The problem is due to erroneous referencing of the license manager utility on a vista machine. Please contact Merging Support or Cedar Support for all details and workaround. Cedar: Some toolbar icons might be missing if on a Windows XP system. Workaround: Disable the Skin option in Pyramix>settings>Desktop Layout. Altiverb: We recommend users to download the latest version available on the Audio Ease site. UAD2: Certified as working with Pyramix, see forum known issues Eucon not detected under Win7 x64 Workaround: Make sure that you install both the x64 and then the x86 Eucon drivers.

MERGING+ANUBIS Seamless Protection Switching, has been developed specifically to address the demands of broadcast facilities depending on an IP infrastructure. Incorporating client requests to go beyond the ST2110 capability of Anubis, SPS includes no compromise ST2022-7 class C and NMOS compliance. It provides the most efficient and cost-effective solution to AoIP stream monitoring and management. ST2022-7 Seamless Protection SwitchingAdding to the fantastic and constantly evolving feature set of Anubis, the Anubis SPS version features two network ports for ST2022-7 compliance. NMOSWhile all MERGING Devices can be discovered and inter connected using MERGING ANEMAN Network Manager, ANUBIS SPS (as well as all other Merging interfaces) is also capable to register itself into an NMOS server as well as comply to connection requests from a compliant NMOS Network Manager such as VideoIPath from Nevion.ANUBIS+SPS is compliant with: NMOS IS-04 (Discovery & Registration)  NMOS IS-05 (Device Connection Management) SMPTE ST2110MERGING holds strongly to its commitment to broadcasters and has been implementing all the new IP protocols into its products. As a regular participant in IP Showcase events, Merging has implemented ST2110 and AES67. Anubis SPS meets the demanding requirements of JT-NM and is self-certified. We want your trust to be based on objective quality and reliability and submitting all our products to independent testing bodies is vital to ensure interoperability. RAVENNA / AES67 Built-InUsing RAVENNA (AES67 compatible), Anubis is able to provide flexible connectivity of every single input and output across standard networks, using off-the-shelf network equipment. The future is most definitely networked audio, and Anubis provides it today. Read more about RAVENNA DC or POE powered... Or BOTH!Protect your production with not only audio network seamless switching but also power switching! Connect Anubis to both DC and POE supply. Should one fail, Anubis will switch to the other seamlessly. Accessible And Controllable RemotelyWith remote productions becoming the standard and content creators spread around the world, it is paramount to be able to quickly remote into any production device configuration and operation panels without wasting time on the phone running the user through the device. Anubis configuration, presets and features are completely accessible remotely for very fast troubleshooting and deployment. Switch Mode!There is another good news about Anubis SPS which is that it can be used in switch mode instead of “redundant ST2022-7 mode”, removing the necessity to have a network switch in scenarios where a DAW simply needs to be connected to a Horus, Hapi or Anubis, i.e. when doing a mobile recording. ANUBIS SPS – SYSTEMS INTEGRATIONAnubis SPS together with the Merging Audio Device, opens remarkable possibilities. MAD is a multi-ASIO driver (also with WDM support) that has an infrastructure option that supports ST2022-7, ST2110, NMOS and Virtual Machine control. This recognizes that centralized data centers and server-based installations are now the new normal way to manage the global nature of the broadcast industry.

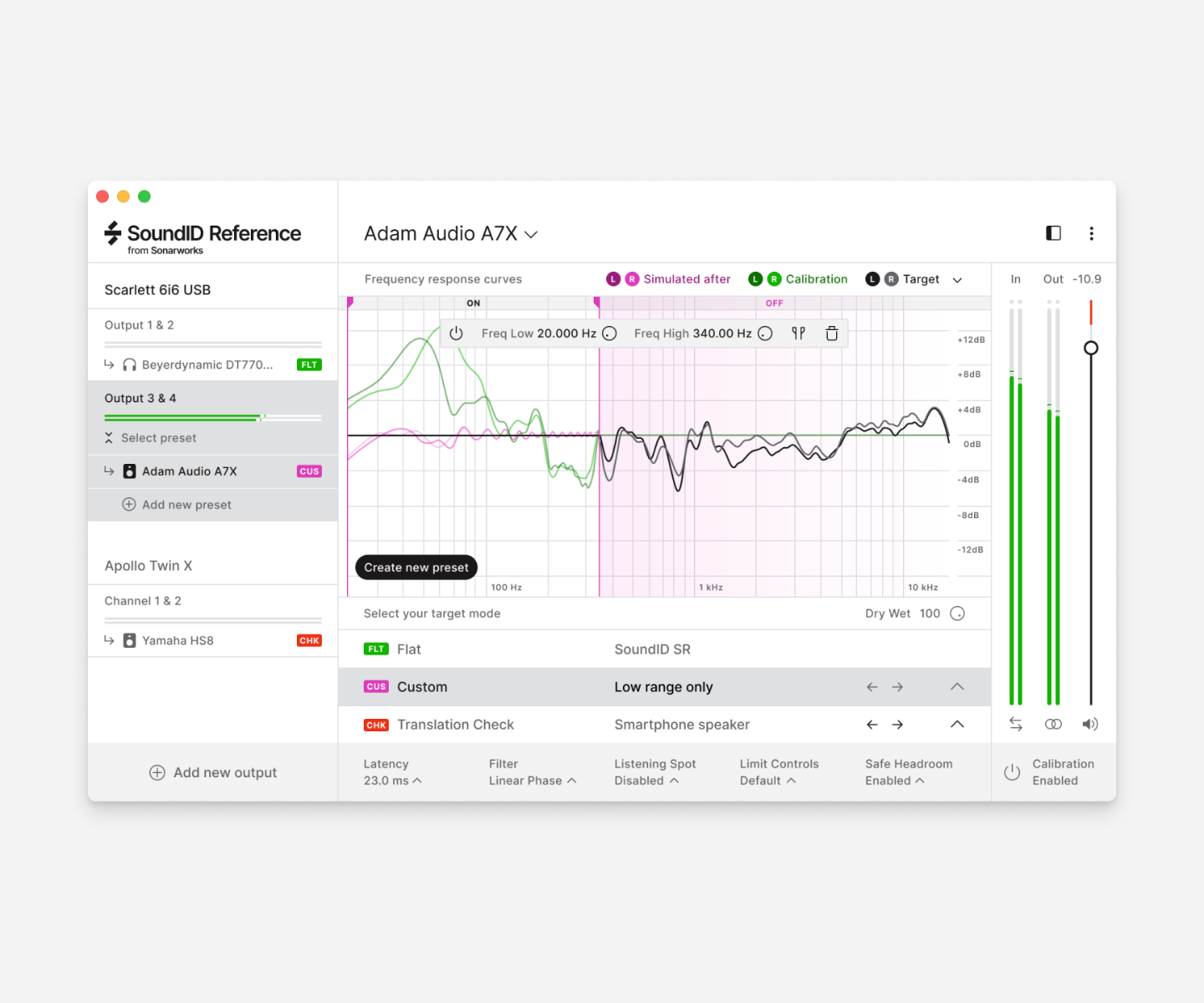

Mergings Komplettlösung für das Dolby Atmos-Mixing ist im Vergleich zu herkömmlichen Systemen kompakt, benutzerfreundlich und anpassungsfähig. Dank der Zusammenarbeit mit Sonarworks umfasst das Bundle eine automatische Kalibrierungsfunktion für das Dolby Atmos Monitoring. Das mitgelieferte Mikrofon und die SoundID Reference-Software erlauben es dem Benutzer, den Raum schnell und präzise zu kalibrieren und die gewünschte Zielfrequenzkurve anzupassen. Erfahrene Tontechniker haben darüber hinaus die Möglichkeit zur manuellen Kalibrierung mit integrierten Verzögerungen, Trims und EQ-Bändern.  Der mitgelieferte Anubis bietet eine umfassende Monitoring-Engine mit 128 Eingangskanälen, unterstützt verschiedene Formate und Lautsprecherkonfigurationen und enthält Lautsprechersteuerungen, Downmixing und Routing zu Cue-Mixes. Er dient als zentrales Element für Monitoring / Control-Room Cue und I/O, ist kompakt und kann mit allen DAWs genutzt werden. Außerdem kann er ASIO, WDM, Core Audio oder AVID digilink unterstützen.  Anubis verfügt außerdem über absolute HighEnd Kopfhörerausgänge, Mikrofon-Vorverstärker und AD-Wandler. Die Integration eines Dolby Atmos Renderers oder weiterer DAWs wird durch den MAD / VAD AES67-Treiber ohne zusätzliche Audio Interfaces oder Wandler für MAC, Windows und Linux ALSA möglich. Hapi MkII, auch Teil des Bundles, bietet Flexibilität bei den I/Os. Mit PT64-Karten können mehrere Hapi MkII bis zu 128 Digilink-Kanäle für ein HDX2- oder HDX3-System unterstützen.  RAUMKALIBRIERUNG FÜR ANUBIS SoundID Reference MICROPHONE  SoundID Reference for Multichannel SOFTWARE  SoundID Reference ANUBIS PLUGIN  MONITORING ENGINE MERGING+ANUBIS PRO SPS  DA FÜR LAUTSPRECHERAUSGÄNGE (UND MEHR) MERGING+HAPI MKII  inkl 2x DA8 cards for 16 line outputs  inkl 2x breakout cables DOLBY APPROVED AES67 TREIBER FÜR RENDERER/DAW MERGING Virtual Audio Device (VAD)

Merging Techologies AVC INTRA Support

Merging Technologies Cable, Analog In DB-25 - Octal XLR Female, 1.5 meter

Merging Technologies Cable, Analog Out DB-25 - Octal XLR Male, 1.5 meter

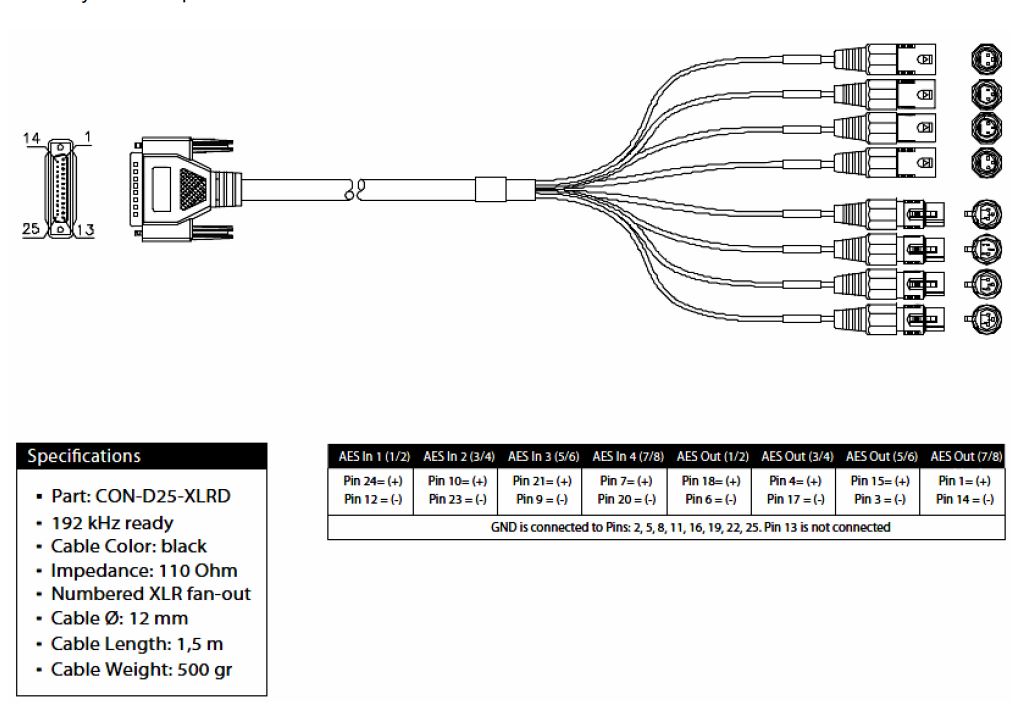

Merging Technologies Cable, Digital DB-25 - Quad XLR Female/Male, 1.5 meter
