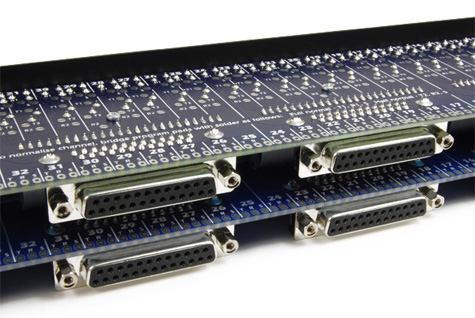

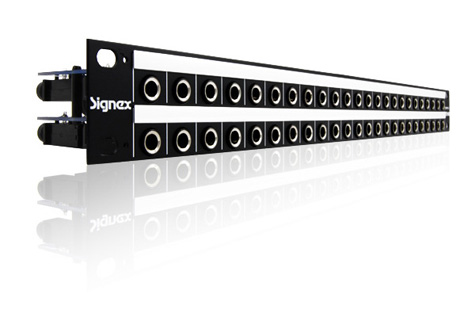

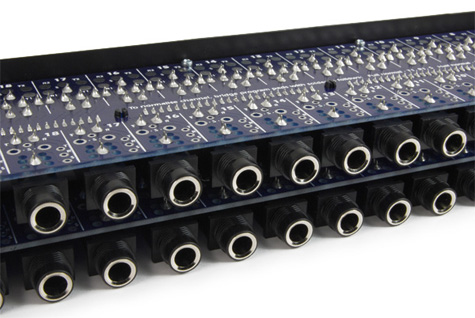

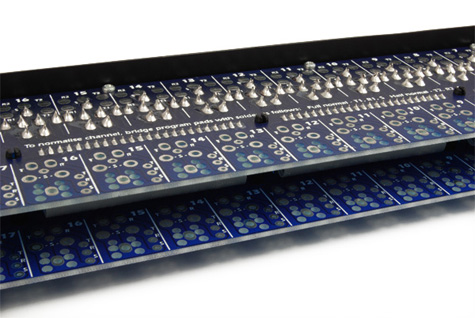

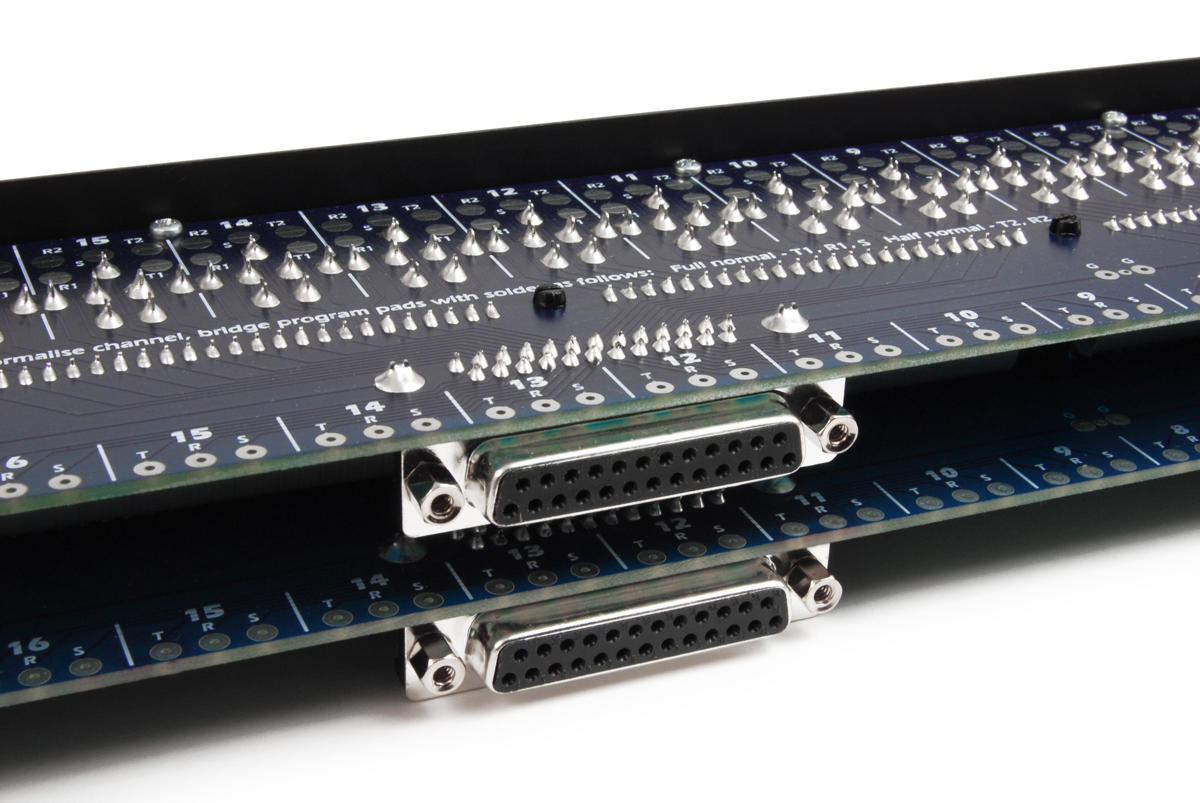

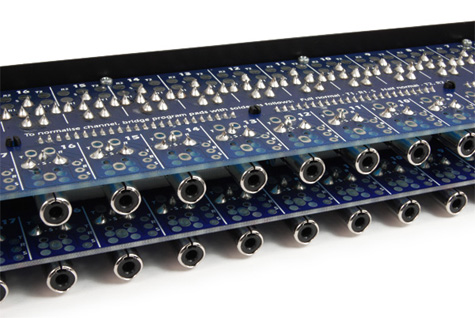

Signex CPJ48D2548-pin Sub-D jack silver.The new Isopatch retains the design strengths of its predecessor, but now has 48 Jacks that are of a new, fully-enclosed design. The new Jack design helps to keep out the contaminants that shorten contact life, they also have a smart chromed ring which gives an improved 'feel' when plugging and un-plugging as well as looking pretty cool!The new Isopatch still has all sockets mounted on two horizontal printed circuit boards (PCBs), rather than vertical cards that can sometimes pop out in use. This type of construction makes the Isopatch very solid and gives full access to most of the circuitry including parallel points and the special 'program pads' for normalising. The use of flexible jumper cables between top and bottom PCBs means that the Isopatch can be opened up for servicing if needed. Unlike many patch panels, the Isopatch offers half or full normalising on every channel, by simply soldering across special 'program pads' on the top PCB - No special tools are needed and there's nothing to take apart. In fact, if the Isopatch is already installed, you don't even have to unplug the rear connectors.The Isopatch can be used for most types of audio signal including mono, stereo, balanced and unbalanced lines. It can also be used for mixer insert points without the need for special 'splitter' leads. Standard rear connector options are Jack, RCA phono and direct solder, but we can supply a combination of these to special order and for more demanding applications, gold contact versions are also available. Add to this a very slick labelling system for designation of the front sockets and you can see why we call the new Isopatch the Ultimate patch panel.Features:    Two rows of 24 type A Jacks in 1U of rack space    Enclosed Jack design keeps out dust and dirt    Jack, RCA phono or direct solder rear connections    Half and full normalising available on all channels    Suitable for balanced/unbalanced and stereo signals    Lacing Bar Kit available for extra rear cable support    Neat slide-in strips for socket designation    Suitable for insert points without special leads    Gold contact versions also available    PCB parallel wiring points for every JackSpecifications:    Front sockets:¼" type A Jack socketsGeneral    Half and Full normalising programmable on every channel    Switch contact resistance <0.03 Ohm    Switch contact life >10,000 operations    Min. rack opening required: 442m

48pol. Klinke Gold Sub-D

48pol. Klinke Silber Jack

48pol. Klinke Gold Jack

48pol. Klinke Silber RCA

48pol. Klinke Gold RCA

48pol. Klinke Silbver Lötversion

48pol. Klinke Gold Lötversion

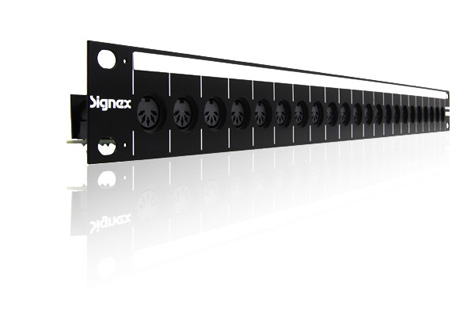

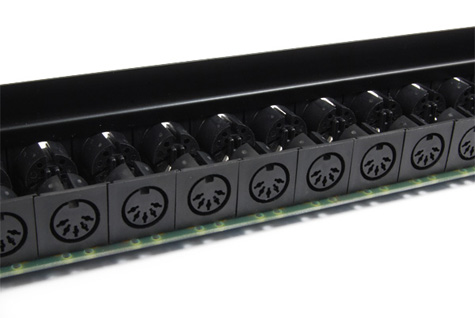

MIDI-Patchbay mit 5pol. DIN

MIDI-Patchbay als Lötversion

96pol. TT-Phone Silber Sub-D

 96pol. TT-Phone Gold Sub-D

 96pol. TT-Phone Silber Lötversion

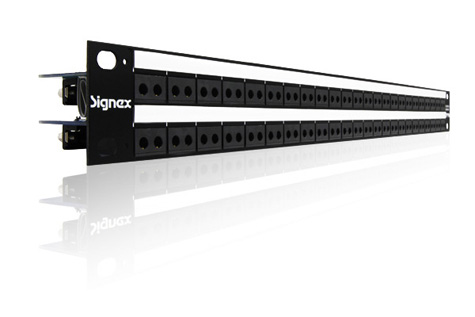

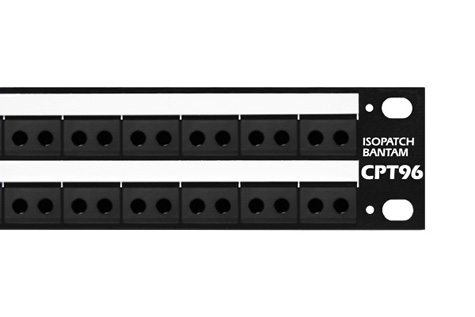

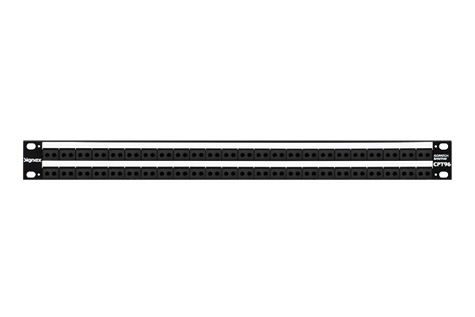

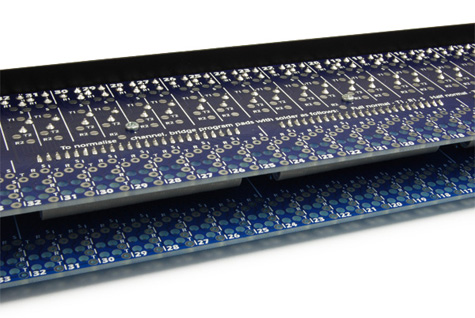

Signex CPT96TG 96pol. TT-Phone Gold Patchbay. The Signex Isopatch Bantam is based on the same design that has made the Isopatch so popular, but uses the 4.4mm 'Bantam' Jack widely accepted in professional studios. The Bantam Jack, designed and built to withstand the heavy duty use encountered in a professional environment, offers superior contact performance in a much smaller space.The twin Bantam Jack used in the Isopatch Bantam is of an enclosed design that helps to keep out the contaminants that shorten contact life, with spacing to accept twin 'stereo' plugs. Contacts are silver or gold plated phosphor-bronze with optional solid palladium switch contacts.All components are mounted on two horizontal printed circuit boards (PCBs) which makes the Isopatch Bantam very solid and gives full access to most of the circuitry including parallel points and the special 'program pads' for normalising. The use of flexible jumper cables between top and bottom PCBs means that the Isopatch Bantam can be opened up for servicing if needed.Unlike conventional patch panels, the Isopatch offers half or full normalising on every channel by simply soldering across special 'program pads' on the top PCB - No need for tedious hard-wiring. In fact, if the Isopatch Bantam is already installed, you don't even have to unplug the rear connectors. The redesigned PCB now offers 25 way D-sub connectors wired to the Tascam 38/88 pattern, so that wiring looms can be made up separately, then just plugged in on site.Features:      Two rows of 48 Bantam Jacks in 1U of rack space      Enclosed Jack design keeps out dust and dirt      Direct solder or 25 way D-sub rear termination      Half and full normalling available on all channels      Suitable for balanced/unbalanced and stereo signals      Lacing Bar Kit available for extra rear cable support      Neat slide-in strips for socket designation      Suitable for insert points without special leads      Gold and palladium contact versions also available      PCB parallel wiring points for every JackTechnical Specifications:      Front sockets:4.4mm Bantam Jack sockets      Rear termination:Direct solder terminations      Front socket contacts:CPT96TG - Rear solder, Gold contacts      Dimensions (W x H x D)(mm):CPT96T - 483 x 45 x 69General:      Half and Full normalising programmable on every channel      Switch contact resistance <0.03 Ohm      Switch contact life >10,000 operations      Min. rack opening required: 442m
