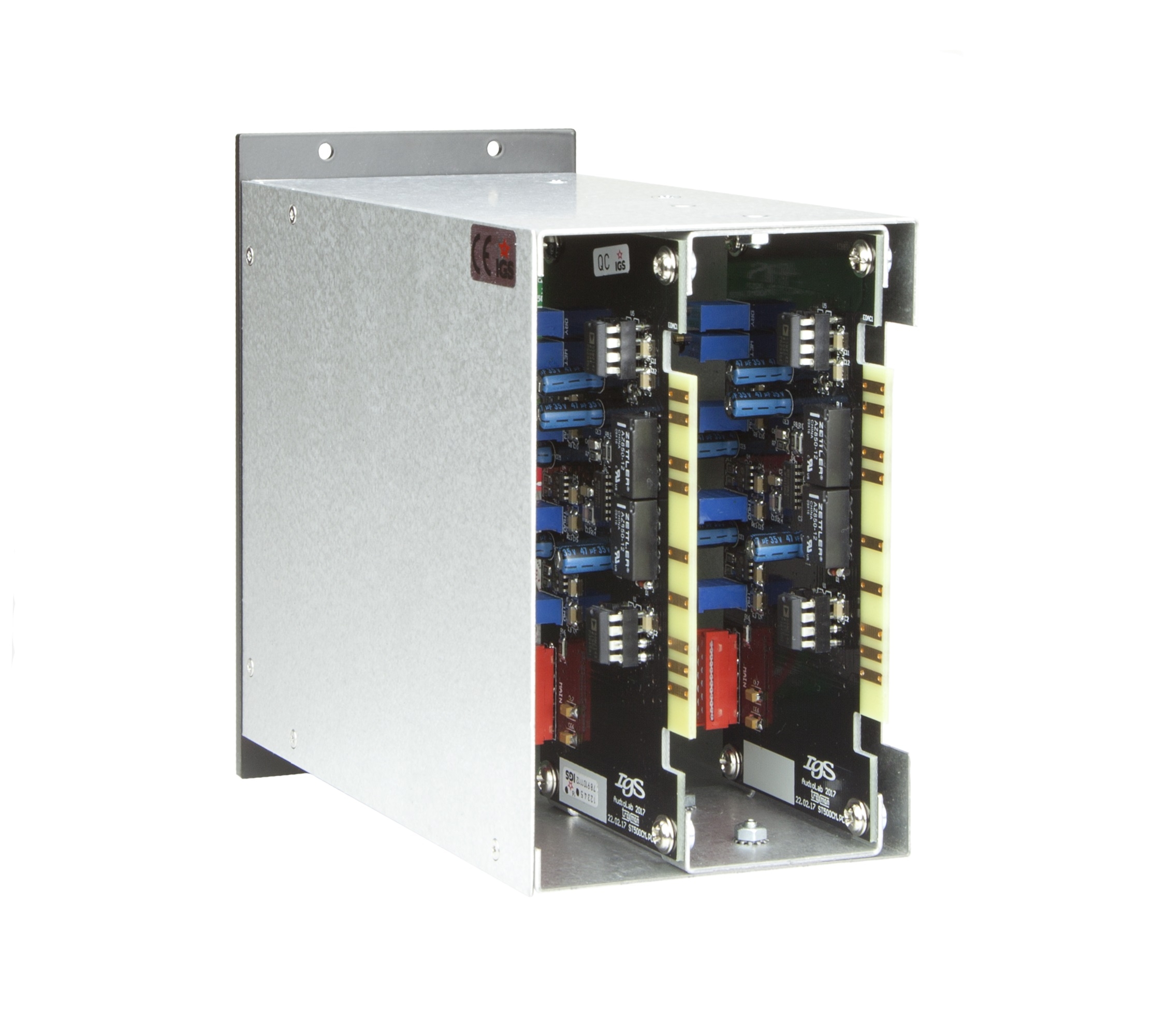

IGS 572 Red Stripe
969,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Hersteller:
IGS Audio
Produktinformationen "IGS 572 Red Stripe"
This is an excellent preamplifier, that can be used with a variety of sources: line signals, guitar pickups (via Hi-Z input), dynamic, condenser and ribbon microphones. It always provides outstanding results. With one knob gain control (41-stepped) you can push it nicely, but still make sure that you don't overload the next stage of your signal chain. The second stage overloading gives some sweet harmonics vibe. Adds a lot of unique flavour. HiZ input is accessible from the front of unit. Handy!
Getting specific
- single channel
- pure tube mic preamp in a 500 module
- two double-triodes (JJ ECC803S and JJ ECC81)
- UK made input and American output transformers
- -20 dB interstage Pad
- polarity control
- +48V phantom power
- low-cut filter
- DI-Input 1/4" TS Jack 1MOhm
- max. Input Level: +16 dBu
- max. Output Level: +28 dBu
- back-lighted analog VU-Meter
- +48 and clip LED
- Made in Europe
| Sicherheits- und Warnhinweise: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Basic features
- Number of slots: 1
- HPF OFF: 50 Hz (6dB/oct)
Input & Output
- Input Impedance (balanced): >1kohm
- Input Pad: -20dB
- Phantom Power: Yes
- Input Pad: -20dB
- interstage Output Impedance (balanced): 600 Ohm
- Audio transformers: Sowter/Edcor
Levels
- Operating Level: +4dBu
- Max input level: +16dBu
- Max output level: +28dBu
- Dynamic Range: 117dB
- Noise Level: -100 dBA
- Max. gain: 64dB
Bandwidth
- Frequency response: 20Hz - 20kHz, - 1 dB
Distortion (@ 20 Hz - 20 kHz)
- THD+N: max 0.5%
Power
- Voltage: +/- 16V DC
- Power consumption: 6.5W
Packing box
- Dimensions: 78x166x229mm
- Shipping weight: 2kg
