IGS Audio Tilt n Bands (B-Ware)
2.399,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Produktinformationen "IGS Audio Tilt n Bands (B-Ware)"
Once when I was a little boy, I heard my uncle's equalizer which he built into his stereo. The sound was incredible. I still remember it to this day. Three potentiometers gave it a sound that I'd never heard before. I couldn't stop listening to the sound that his compact payer made.
My uncle Chris
I asked my uncle for the diagram and he drew it with a pencil on a piece of paper. I quickly learned the scheme by heart and as an electronic engineer amateur, I repeatedly build the hi-fi amplifiers using the scheme. The EQ sounded implausible each time.
After many years
After many years I decided to make a studio device based on my uncle's scheme. I improved the arrangement by adding a transformer balanced tube stage. The Tilt turned out to be a cool addition too. This vintage circuit is very useful in any mastering application. I hope, you will feel the vibe of my uncle's old radio equalizer.
improved the arrangement
After many years I decided to make a studio device based on my uncle's scheme. I improved the arrangement by adding a transformer balanced tube stage. The Tilt turned out to be a cool addition too. This vintage circuit is very useful in any mastering application. I hope, you will feel the vibe of my uncle's old radio equalizer.
| Sicherheits- und Warnhinweise: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
BASIC FEATURES
Q factor: 0.5 to 5
Hard wire bypass: yes
INPUT & OUTPUT
Input Impedance (balanced): 10k Ohm
Output Impedance (balanced): 600 Ohm
LEVELS
Operating Level: +4 dBu nominal
Max output level @ 1.6% THD: +37 dBv; +26dBv @ 20 Hz
Noise Level: -120dB
BANDWIDTH
Frequency response: 20 Hz to 40 kHz, +/-0.3dB
DISTORTION (@ 20 HZ - 20 KHZ)
THD+N: 0.08% (1KHz @ +4 dBu)
Crosstalk >120dB
FRONT PANEL

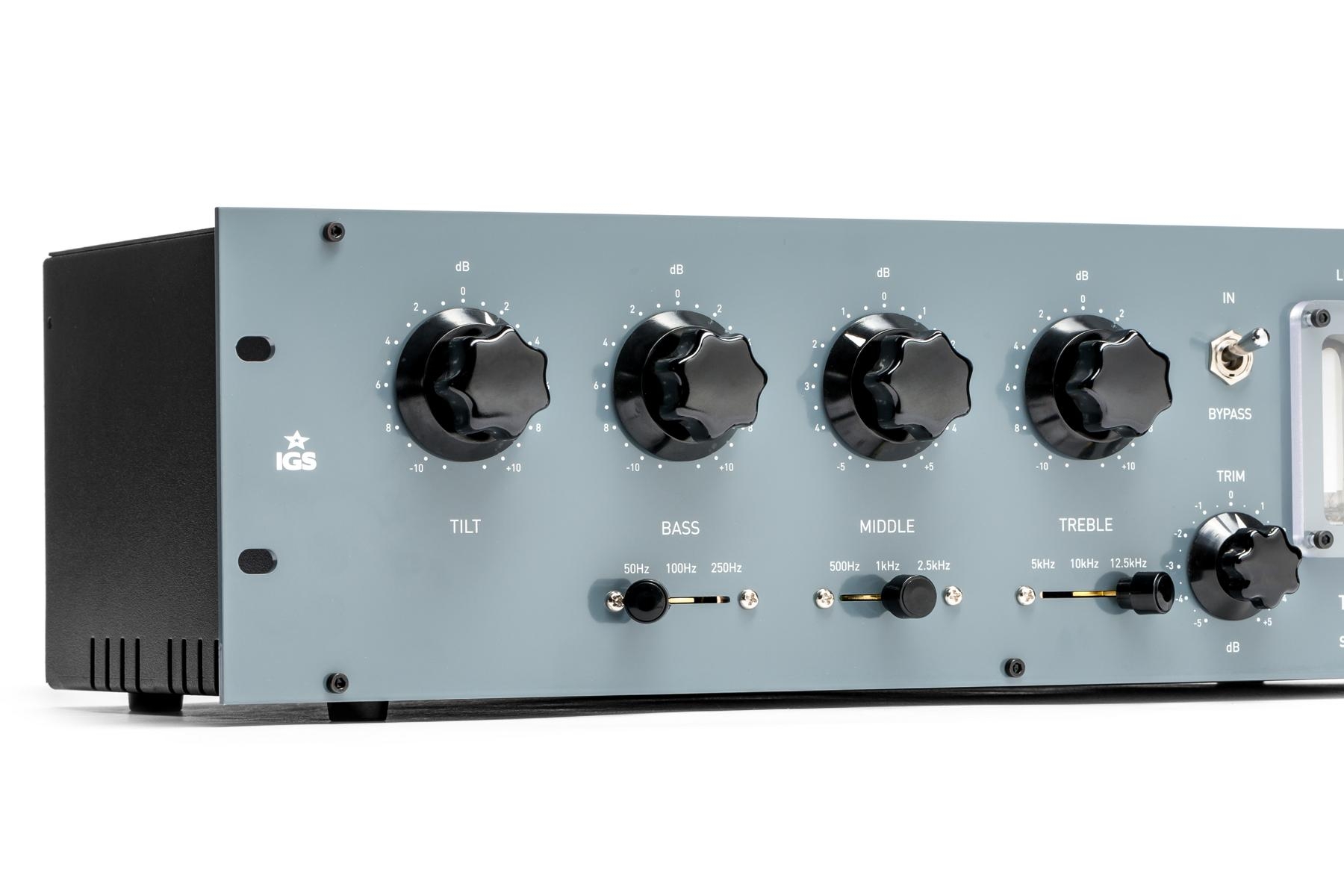

VU Meters: Magic eye
POWER
Voltage: 230/115
Power consumption: 64W
Power supply: Linear, internal
PACKING BOX
Shipping weight 11kg
OTHERS
Used for Mastering, tracking

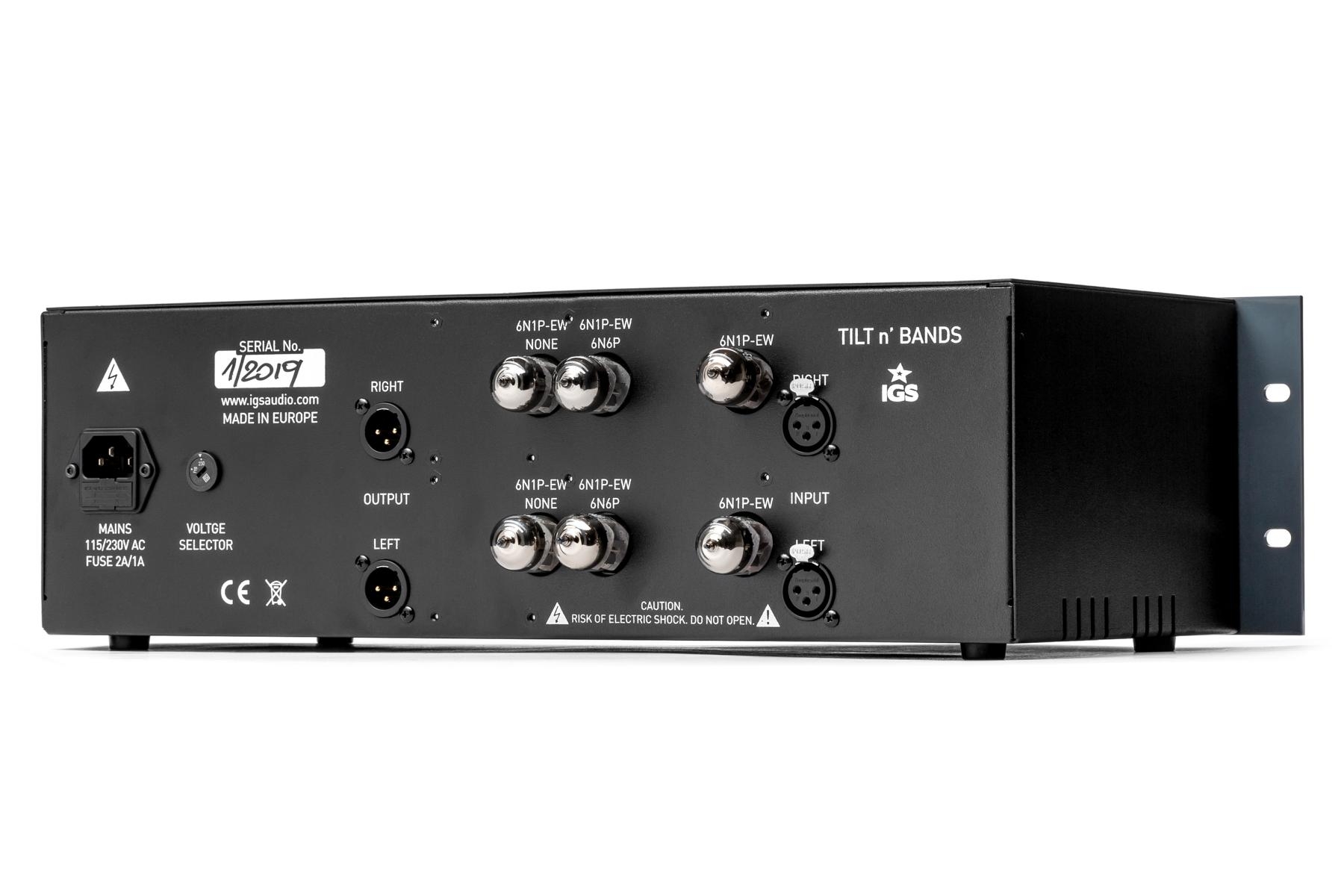

Tube set 6x6N1P, 2x6E2
