Moog Spectravox
699,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Hersteller:
Moog
Produktinformationen "Moog Spectravox"
Spectravox, the newest member of the Moog semi-modular family, is a groundbreaking tool for sculpting sound. An analog spectral processor based around a 10-band filter bank, Spectravox creates lively drones and colorful tonal sweeps on its own and adds resonant depth and psychedelic spectral movement to any external sound. Hook up a microphone and Spectravox becomes a 10-band analog vocoder with innovative integrated modulation of all of its filters. An exploration and expansion of the topology of the vocoder and filter bank, Spectravox is a highly flexible instrument and signal processor with a comprehensive patch bay for integration into studios of all sizes.
Analog Sound Engine
- Sound Source: VCO, White Noise Generator
- Filter: 10x variable resonance voltage-controlled filters: 1 Low-Pass Filter, 8 Bandpass Filters, 1 High-pass Filters
- Envelope: VCA EG (Decay)
Analysis Engine Sources
- Sources: Ext. Input via 1/4" / XLR combo jack or 3.5mm jack with preamplifier. XLR input supports dynamic mics. Condenser mics may require external 48V power.
Patchbay
- Jacks: 36 x 3.5mm
- Inputs: 19 Input Jacks
- Outputs: 17 Output Jacks

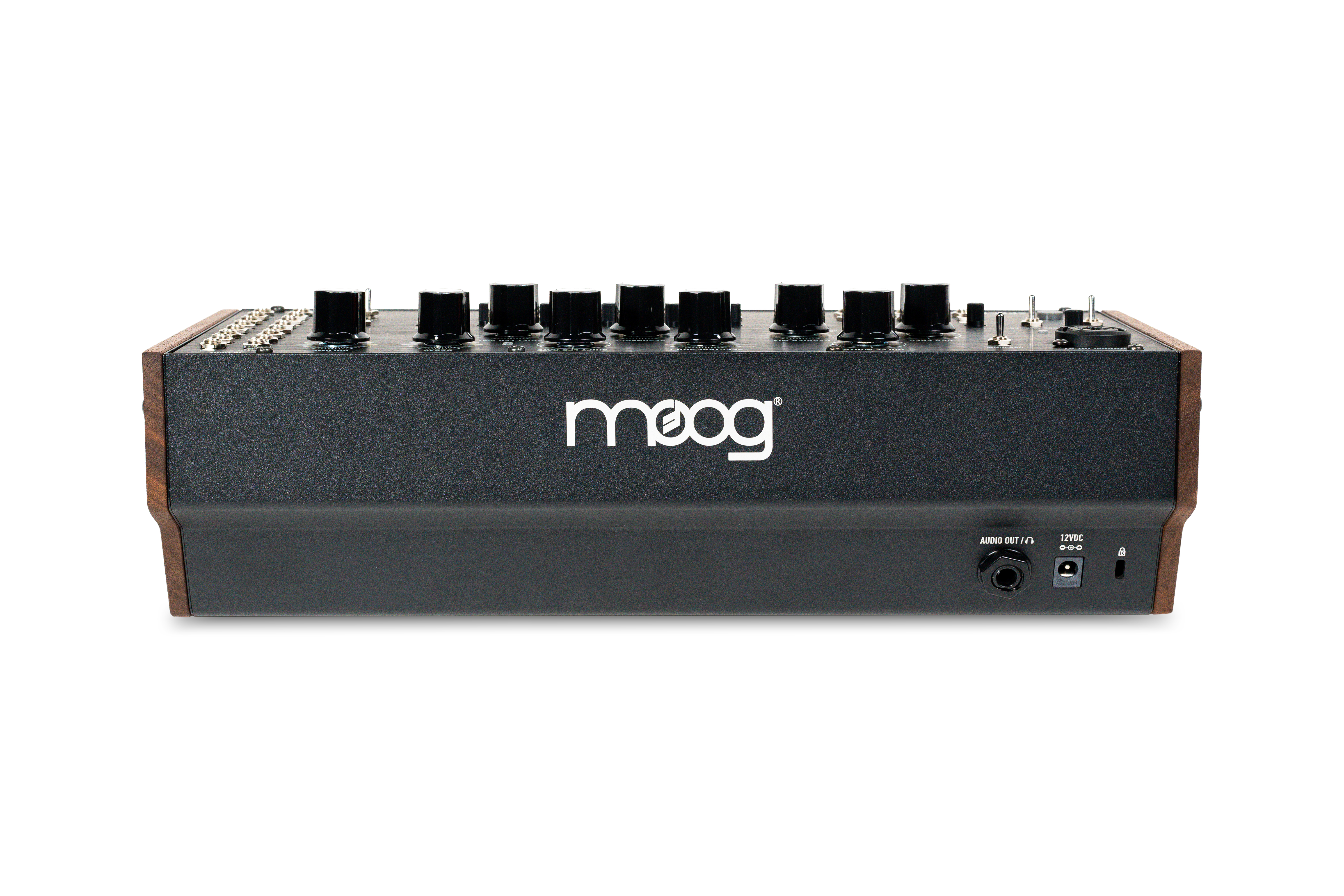

Rear Panel
- Audio: 1⁄4” TRS Headphone or 1⁄4” TS Instrument
- Power: Power supply connection
- Security: Kensington lock slot
Power Supply (Included)
- Power Supply: Style: wall adapter; barrel connection; center-pin positive
- Input: 100 - 240VAC; 50 Hz - 60 Hz
- Output: +12VDC; 2.0A
Power Consumption
- Typical: 4.8 Watts
Eurorack Specs
- Current Draw: 450mA (maximum) from +12VDC (10-pin header)
- Mounting Dims: 60HP (1.5” Module Depth)
IN THE BOX
Spectravox Analog Synthesizer
Power Supply
Quickstart Guide
Product Poster
Preset Overlays
Patch Cables (5x 12")
| Sicherheits- und Warnhinweise: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
