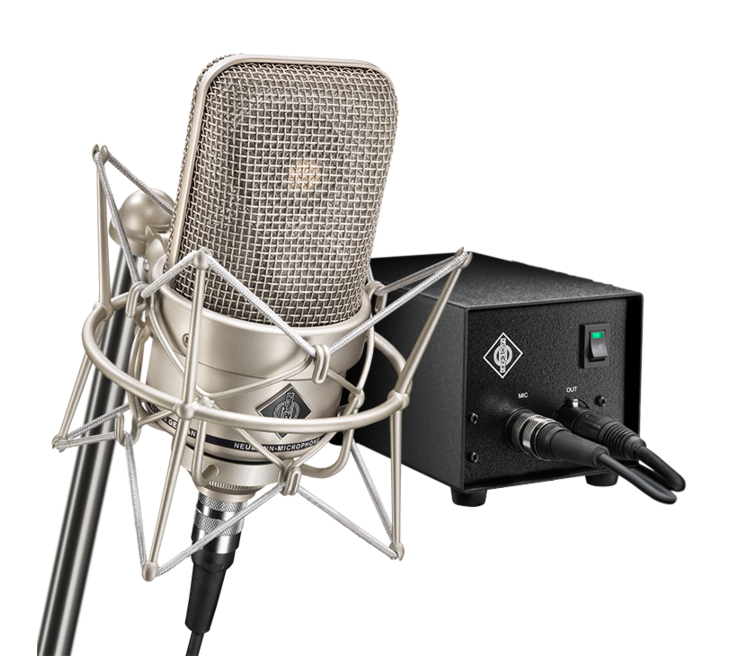

Neumann M150 Tube (230 Volt, Euro)

Neumann M 150 Tube (230 Volt, Euro)

The new M 150 Tube* takes many of the features from the original M 50 and incorporates them in a very modern microphone. With low self noise, a Titanium membrane and capsule, transformerless tube amplifier and sophisticated power supply, the M 150 Tube is not a reissue but an entirely new microphone in its own right.

Features:
All Titanium capsule
Unparalleled transient accuracy
Pressure omni capsule for extended low frequency response
Modern version of the world-famous M 50
Transformerless tube amplifier based on the award-winning M 149 Tube microphone
Ideal for DECCA tree recording and surround miking techniques
Very low self noise of 15 dB-A
Stereo sets with consecutive serial numbers

Technical Specifications:
Acoustical operating principle     Pressure transducer
Directional pattern     Omnidirectional
Frequency range     20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm     20 mV/Pa
Rated impedance     50 ohms
Rated load impedance     1 kohms
Equivalent noise level, CCIR1)     28 dB
Equivalent noise level, A-weighted1)     15 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)     66 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)     79 dB
Typical SPL (tube characteristic)2)     K < 0,5 %: 114 dB, K < 5 %: 134 dB
Maximum output voltage     8 dBu
Dynamic range of the microphone amplifier (A-weighted)     K < 0,5 % *: 99 dB, K < 5 %: 119 dB
Powering     Power supply N 149 A
Matching connector microphone     DIN8F
Matching connector power supply     XLR3F
Weight     800 g
Diameter     78 mm
Length     165 mm
