Produktinformationen "Schoeps CCM 2S L"

  • Omnidirectional pattern
  • slight high-frequency rise to compensate for losses at moderate recording distances
  • for a very wide range of recording applications
  • often preferred for spaced stereophony and Decca Tree arrangements

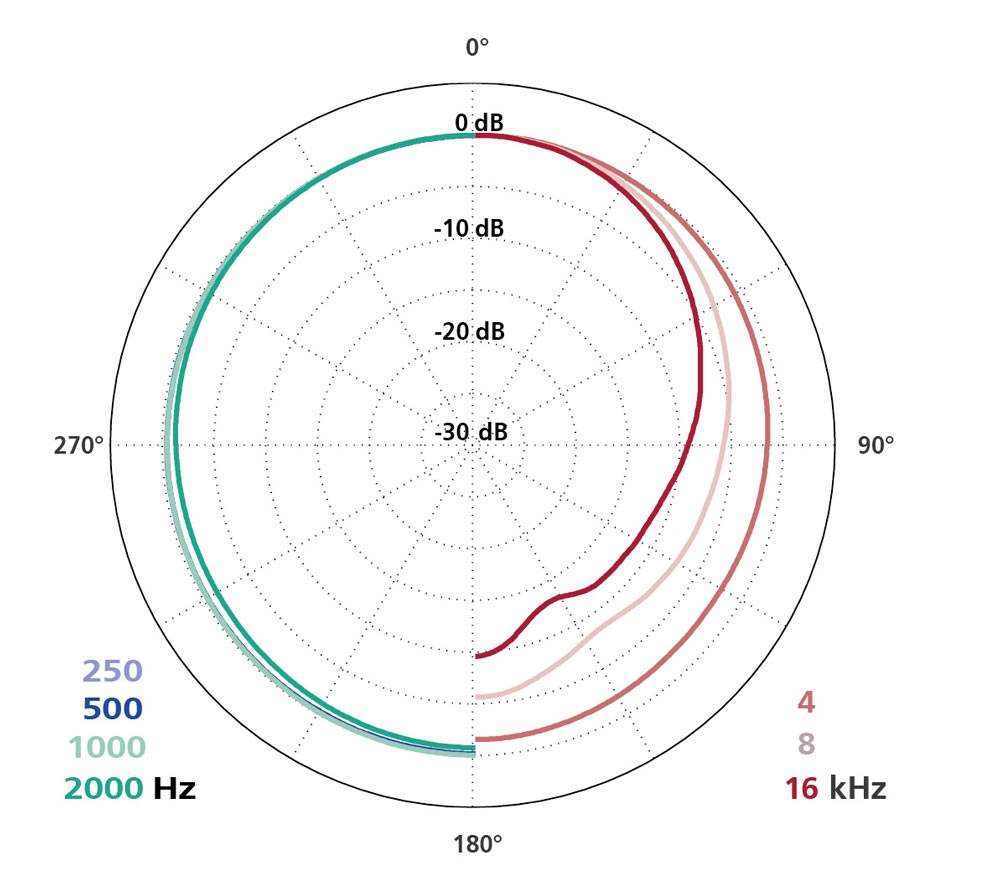

The CCM 2S exhibits a slight high-frequency emphasis for frontal sound incidence, with only a slight rolloff of high frequencies off axis and in the reverberant sound field.

The frequency response characteristic of the CCM 2S falls between that of the CCM 2 and the CCM 2XS, making this microphone suitable for a wide range of applications.

The CCM 2S has proven particularly useful in two- and three-microphone stereo arrays, where its placement near the reverberation radius of the sound field presents a sonically balanced pickup favored by many recording engineers. This model has become our most popular pressure transducer.

For spaced microphone (A/B) stereo recording and especially the Decca Tree method, KA 40 accessory spheres are recommended.

Sicherheits- und Warnhinweise
Sicherheits- und Warnhinweise: Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt.
Herstellerinformationen

SCHOEPS

Schalltechnik Dr. Ing. Schoeps GmbH

Spitalstr.20 76227 Karlsruhe Germany

info@schoeps.de

Alle Produkte im Shop
Tech-Info
Frequency range
see corresponding capsul
---
Sensitivity
see corresponding capsul
---
Maximum sound pressure level (THD < 0.5 %)
136 dB-SPL (P48)
128 dB-SPL (P12)
---
Maximum output voltage
2,6 V (8,3 dbV) with 2 kΩ load
---
Low cut filter
20 Hz, 12 dB/Okt.
---
Output impedance
90 Ω @ 1 kHz
---
Maximum cable length
> 400 m
---
SCHOEPS RFI Shield
No
---
Powering standard / Valid range
P48 / > 40 V P12 / > 10 V
---
Current consumption
4 mA (P48)
3,6 mA (P12)
---
Common mode rejection ratio (at 1 kHz)
> 55 dB
---
Minimum recommended load impedance
2 kΩ
---
Output
Lemo (CCM-L) or XLR-3M (CCM-U),
analog, 1 channel
---
Length
46 mm (CCM-L)
---
Diameter
20 mm
---
Weight
33 g (CCM-L)
---
Surface finish
matte gray (g)
or custom color
