2.269,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
- Unusually low coloration of off-axis sound
- suitable for music recording as well as dialogue
- rotationally symmetrical polar pattern
- even greater immunity to wind noise than a SCHOEPS supercardoid
- very lightweight, robust all-metal housing
The CMIT 5 is SCHOEPS' shotgun microphone which has set a new standard for shotgun microphones since its release. The CMIT 5's directionality increases smoothly with higher frequencies, which results in a very balanced sonic character. In addition to this, the microphone's sound level decreases softly yet steadily for off-axis sounds, allowing these to be recorded neutrally as well as reducing the effects of movement during boom operation. The CMIT 5 also has a much stronger directionality than one might expect from a microphone of its length. If required, the CMIT 5 can also be used for music recordings, for example opera recordings.
The sound quality of the CMIT 5 remains consistent even if the microphone is rotated on its axis, since its directional pattern is the same in both the vertical and horizontal planes.
Three pushbutton-activated filters allow the microphone to adapt to the recording situation:
- High-frequency emphasis (+5 dB at 10 kHz) enhances speech intelligibility, and compensates for high-frequency loss caused by windscreens;
- A steep low-cut filter (18 dB/oct. below 80 Hz) suppresses wind and boom noise;
- A gentle low-frequency rolloff (6 dB/oct. below 300 Hz) compensates for proximity effect.
Pairs of LEDs next to each pushbutton indicate the status of the filters. Even in darkness the user can read the settings and see that the microphone is operational. The settings are retained when the microphone is switched off.
The capsule and amplifier of the CMIT 5 are built as a single unit, unlike microphones of the SCHOEPS Colette series.

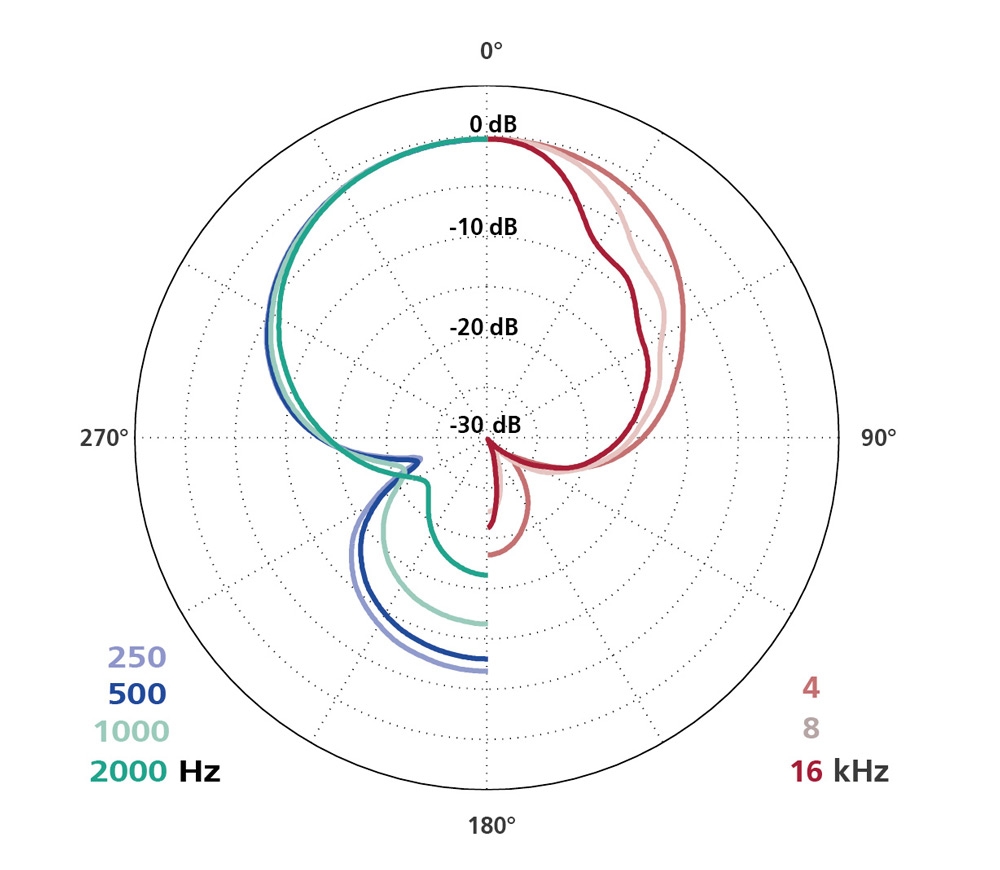

Supercardioid / lobe-shaped
---
Frequency range
40 Hz - 20 kHz
---
Sensitivity
-35 dB (V/Pa), 18 mV/Pa
---
Equivalent noise level (A-weighted)
13 dB
---
Equivalent noise level (CCIR)
24 dB
---
Signal-to-noise ratio (A-weighted)
81 dB
---
Maximum sound pressure level (THD < 0.5 %)
131 dB-SPL (P48)
---
Maximum output voltage
1.3 V (2.5 dBV) with 1 kΩ load
---
High shelf filter
switchable, +5 dB at 10 kHz
---
Low cut filter
switchable, 80 Hz, 18 dB/oct.
---
Proximity filter
switchable, 300 Hz, 6 dB/oct.
---
Minimum recommended load impedance
1 kΩ
---
Output impedance
50 Ω
---
Maximum cable length
> 400 m
---
SCHOEPS RFI Shield
Yes
---
Powering standard / Valid range
P48 / >34 V
---
Current consumption
4.4 mA (P48)
---
Common mode rejection ratio (at 1 kHz)
> 65 dB
---
Output
XLR-3M, analog, 1 channel
---
Length
251 mm
---
Diameter
21 mm
---
Weight
95 g
---
Surface finish
blue or custom color
