4.499,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Produktinformationen "Sequential Prophet 10 Keyboard"
OSCILLATORS
- Two authentic CEM 3340 VCOs per voice
- Simultaneously selectable wave shapes. Oscillator A: sawtooth, pulse. Oscillator B: sawtooth, triangle, pulse.
- Pulse width per oscillator
- Hard sync: oscillator 1 syncs to oscillator 2
- Low frequency mode (oscillator 2)
- Keyboard tracking on/off (oscillator 2)
MIXER
- Oscillator 1 amount
- Oscillator 2 amount
- White noise amount
LOW-PASS FILTER
- Four-pole, resonant, low-pass filter per voice
- Switchable between authentic versions of the Prophet-5 Rev1/2 filter and Prophet-5 Rev3 filter
- Rev1/2 filter is a Dave Rossum-designed 2140, the modern counterpart of the original 2040 filter found in the Prophet-5 Rev1 and Rev2
- Rev3 filter is a Doug Curtis-designed CEM 3320
- Filter can be driven into self-oscillation with the Resonance control
- Keyboard tracking: off, half, full
FILTER ENVELOPE
- Four-stage (ADSR) envelope generator
- Velocity modulation of envelope amount
AMPLIFIER ENVELOPE
Four-stage (ADSR) envelope generator
Velocity modulation of envelope amount
LOW FREQUENCY OSCILLATOR
Three wave shapes: sawtooth, triangle, square. All waveshapes can be engaged simultaneously
Both Initial Amount and mod wheel control
Mod destinations: oscillator A frequency, oscillator B frequency, oscillator A and B pulse width, filter cutoff
POLY MOD
Sources: filter envelope and oscillator B
Destinations: oscillator A frequency, oscillator A pulse width, filter cutoff
VINTAGE KNOB
Recreates the characteristics of various Prophet-5 models by varying the behavior of oscillators, envelopes, amplifiers, and other parameters. Go from a very stable “4” — as in Prophet-5 Rev4, (the new version) — all the way to “1,” as in Prophet-5 Rev1, the rarest and most temperamental of all Prophet-5s.
AFTERTOUCH
Channel (mono) aftertouch
Destinations: filter cutoff frequency, LFO amount
BI-TIMBRAL OPERATION
Layer mode: two different 5-voice programs stacked together simultaneously
Split mode: two independent, user-assignable performance zones, with a different 5-voice program assigned to each.
PERFORMANCE CONTROLS
Full-sized, semi-weighted, premium Fatar 5-octave keyboard with velocity and aftertouch
Mod wheel
Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
Polyphonic glide (portamento)
Unison (monophonic) mode with configurable voice count, from one to all ten voices and key modes
Preset switch: when off, the front panel is live; what you see is what you hear
PATCH MEMORY
200 user and 200 factory programs in 5 banks of 40 programs each
Direct program access, including Prophet 5-style single-button access to the current set of 8 programs

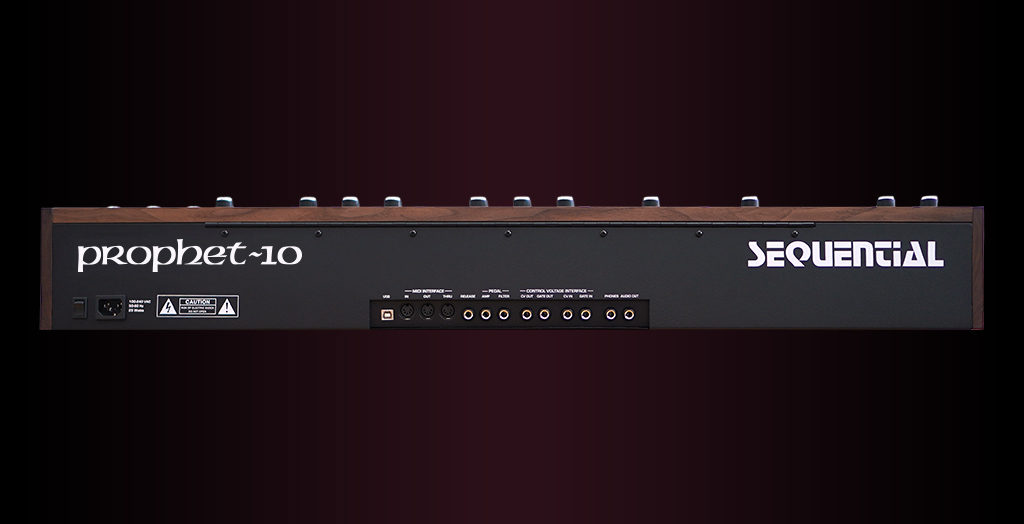

IN/OUT
Mono output (1 x 1/4” phone jack)
Headphone output (stereo, 1/4” phone jack)
MIDI in, out, and thru ports
USB for bidirectional MIDI communication
Control voltage in/out (1 x 1/4” phone jack) 0- +5V input/output signal. Configured for 1-volt-per-octave operation.
Gate in/out (1 x 1/4” phone jack). Accepts a 1.5 to 15-volt on/off signal to gate the envelopes of a single voice on the Prophet-10. Outputs a 15-volt on/off used to gate the envelopes of an external synth.
Low-pass filter cutoff expression pedal input
Volume expression pedal input
Sustain footswitch input
POWER
IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 28 watts maximum power consumption
PHYSICAL SPECS
37.37” L x 16.35 W x 5.95″ H (94.92 cm x 41.52 cm x 15.11 cm)
32 lbs (14.51 kg)
Roadworthy all-steel construction with premium black walnut heartwood body and trim
