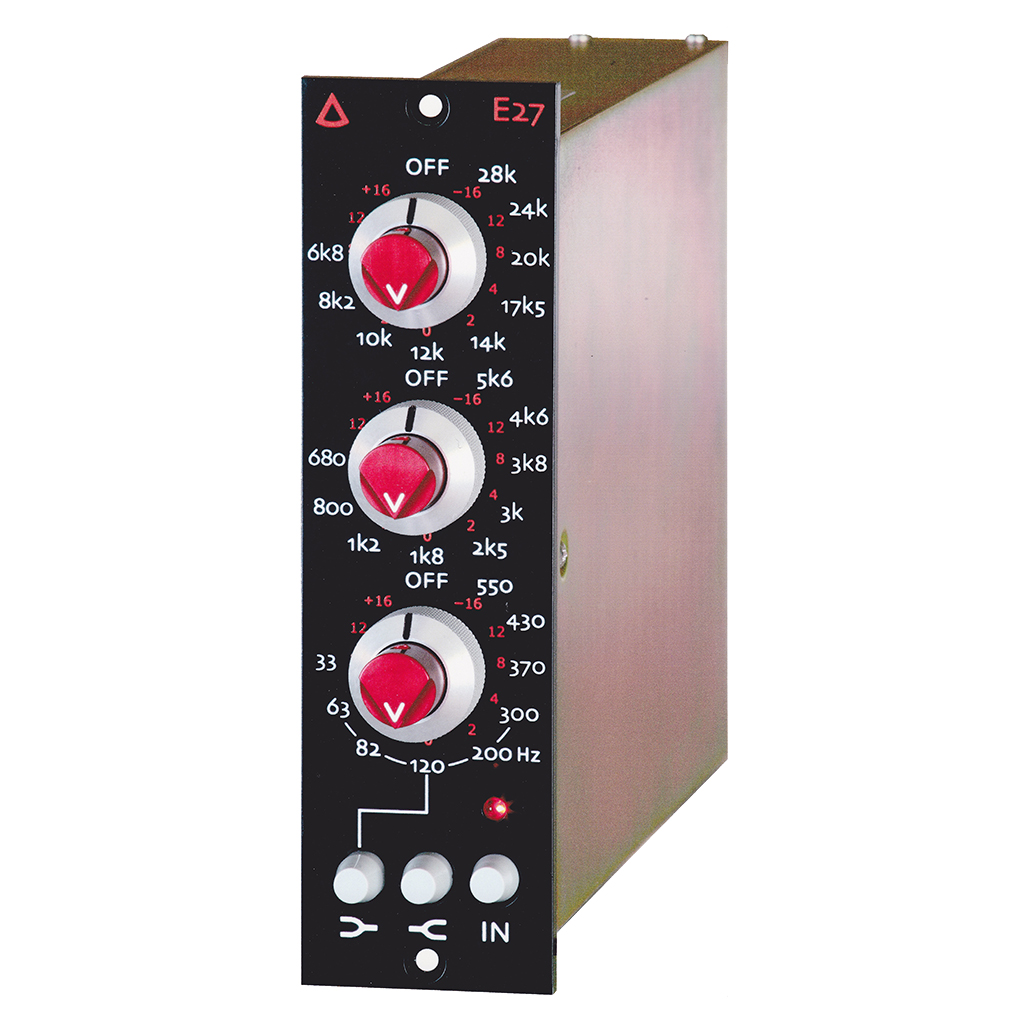

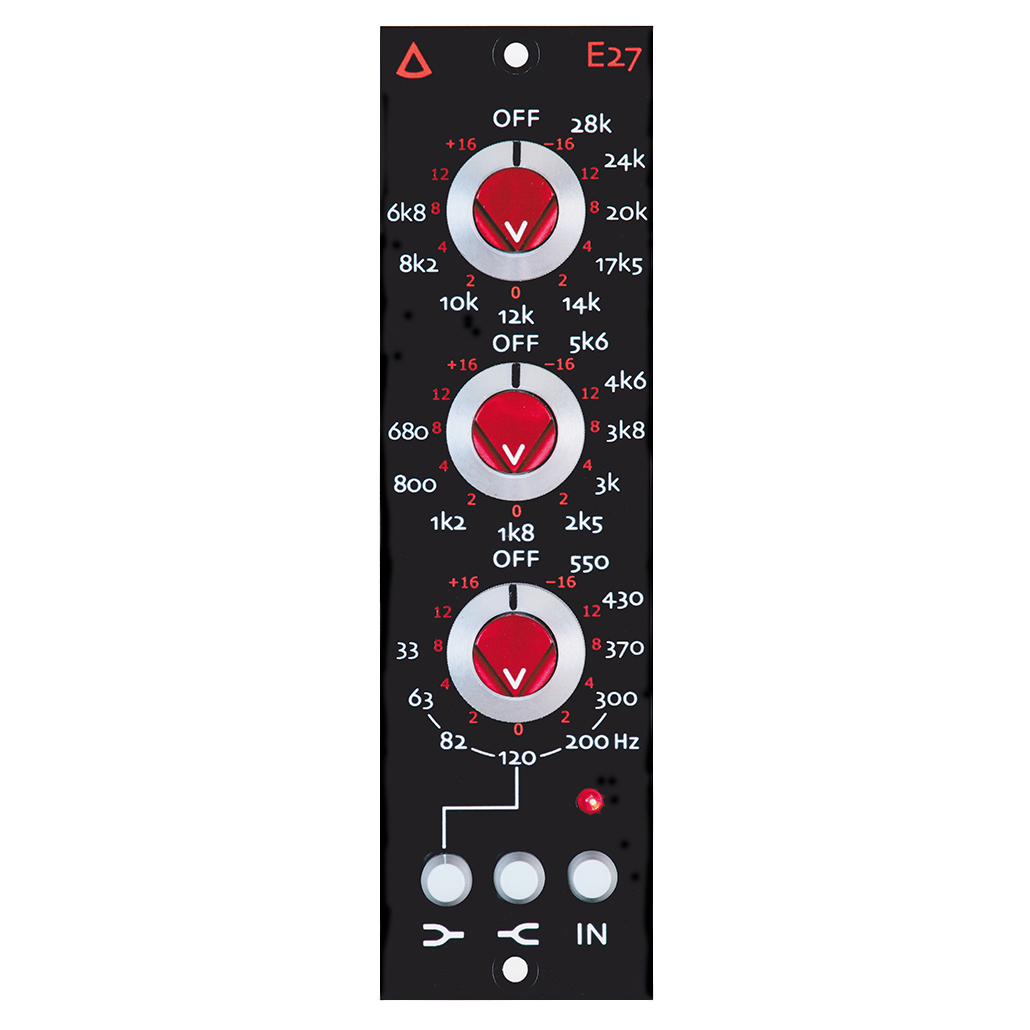

Avedis E27 (modular equalizer)
1.599,00 €*
The E27 was created for the need of a high quality modular equalizer. High performance, versatility, ease of use, and simplicity is the initial core of the E27’s design. Some of the best analog gear from the past was the inspiration for its character in sound. Outstanding quality and most suitable parts are used throughout – gold-plated switches, high performance capacitors, high-quality transformers, and custom machined aluminum knobs.
Today’s engineers deal with many different types of recording equipment from older high-end analog gear to the newest digitally controlled recording equipment. With this in mind, the E27 can interface easily with many types of gear including balanced or unbalanced sources, high or low impedance loads, even unbalanced loads.
The level knob controls up to 16 db’s of cut and boost but for those who only need a few db’s, the travel of the pot starts slow and speeds up at the extremes giving the user more fine control at levels of 6 db’s or less. Knob positions are not only easy to see from a distance but are also felt – the level pot knob has a small point so you know where you are without looking at the eq. The outer frequency control knob has a knurl texture for ease of grip.
FEATURES
Standard 500 series modular size 1.5″ x 5.25″
3-bands with 9 selectable frequencies per band
±16 dB of boost and cut using continuous variable potentiometer
Push button shelving option for low and high frequencies
All discrete design; NO IC chips
High headroom
Low noise
Jensen transformer input & output
Custom machined aluminum knobs
Gold plated rotary switches and 15-way connector for long life
Utilizes 1122 discrete opamps
Available as software plug-in by PSP Audioware

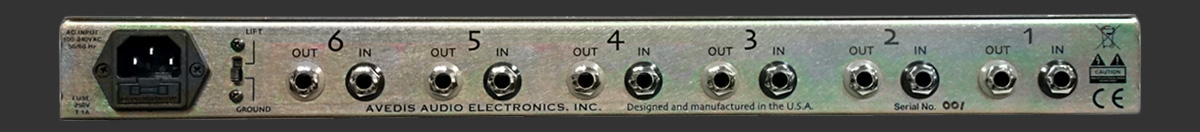

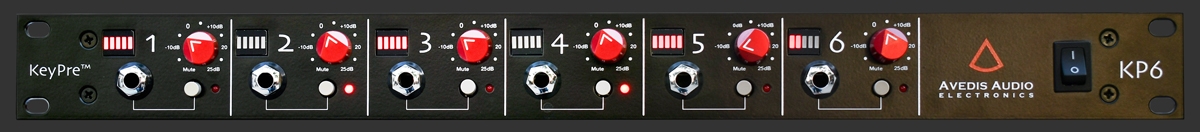

Avedis KeyPre KP6
2.080,00 €*
The KeyPre® was designed for professional keyboard, synthesizer, and drum machine users who want to use something better than a mixer input channel or a DI (direct injection).
Electronic instruments often have a wide range of different output levels and impedances, and with much wider bandwidth than traditional passive instruments such as electric guitars.
This presents a challenge for any outboard device following it. A high performance preamplifier, specifically designed for electronic instruments, is needed to ensure nothing is being compromised or bottlenecked as your sound is being processed.
Over two years have been dedicated to research, test, and develop the KeyPre® and we are confident it will preserve the integrity of your electronic instrument for both recording and live applications.
Features:
Six independent channels
TRS balanced inputs and output with additional inputs in the front for up to 12 inputs
Uses the high performance Ingenius® input stage
Direct coupled discrete preamplifier
Jensen transformer balanced output
Up to 32dB’s of Gain
Can be used with either balanced or unbalanced keyboards
Supports all variety of electronic keyboard or synthesizer output impedances
Very wide frequency response to capture the full bandwidth of your electronic instrument
5 bargraph LED meter which can be custom adjusted internally
Internal international power supply
Patented Xsolate® Ground Lift System to safely isolate output stage ground connection
Designed and manufactured in the U.S.
3 Year Warranty

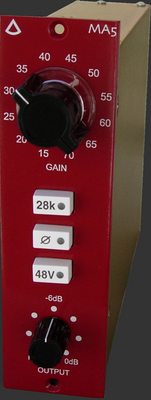

Avedis MA 5 - Single-ended Class A amplifier
1.025,00 €*
Avedis Audio tells: After some requests from audio engineers, the MA5 was created for the need of a high quality microphone preamplifier in the characteristic sound of early 70's British consoles. The re-engineering in the creation of the MA5 stemmed from years of experience restoring both American and British modules, deeply rooted in classic transformer-balanced, discrete electronics. Only the best and most suitable components are used throughout, regardless of cost, to attain the best sound. Much time was spent on the MA5, not only on the engineering side of the design, but also to extensive sound evaluations in observation of specific settings, gain structures, and key components, spanning a time frame of a little over a year. We have always believed that even with some of the best audio test analyzers we own and use, our ears' sensitivity, coupled with good judgement of sound through experience, is still unparalleled. In the end, it is our ears we are trying to satisfy. Standard 500 series modular size 1.5' x 5.25' Singleended Class A amplifier UK made input transformer Custom designed Jensen output transformer Stepped gain rotary switch in 5dB steps Output level pot for trim and mute LED lit pushbuttons 28kHz feature for more high frequency detail Custom made Marconi style knobs High headroom & CMR, Low noise design Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.

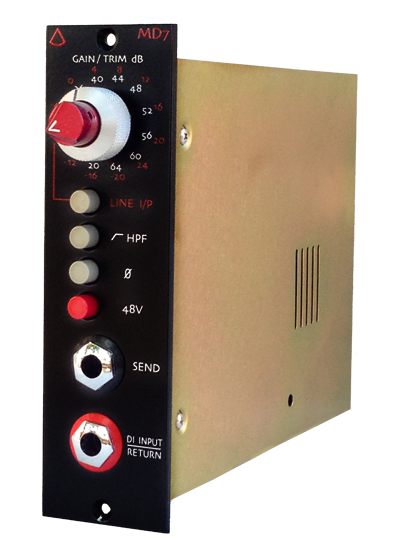

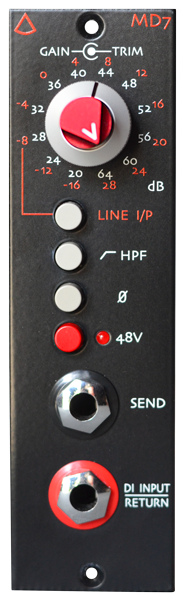

Avedis MD7
1.030,00 €*
Gain range from 0dB – 64dB in 4dB steps for recall-ability
Input Trim control for fine control of gain
No input PAD to drive transformer into saturation during peaks
Utilizes the discrete 1122 op-amp known for depth and resolution
All discrete design with Class A buffer amplifier
Line Input to interface with DAW’s
Custom Jensen input & output transformers
SEND feature to run signal through stomp boxes for variety of effects
Wide bandwidth, high headroom, very low noise
Phase reverse, and filtered 48V phantom power
High Pass Filter using a gentle slope for natural bass roll-off (-3dB @ 80Hz)
10 Meg-ohm high impedance DI input great for all instrument pickups
Perfect for using as a re-amplification device
Designed and manufactured in Los Angeles
