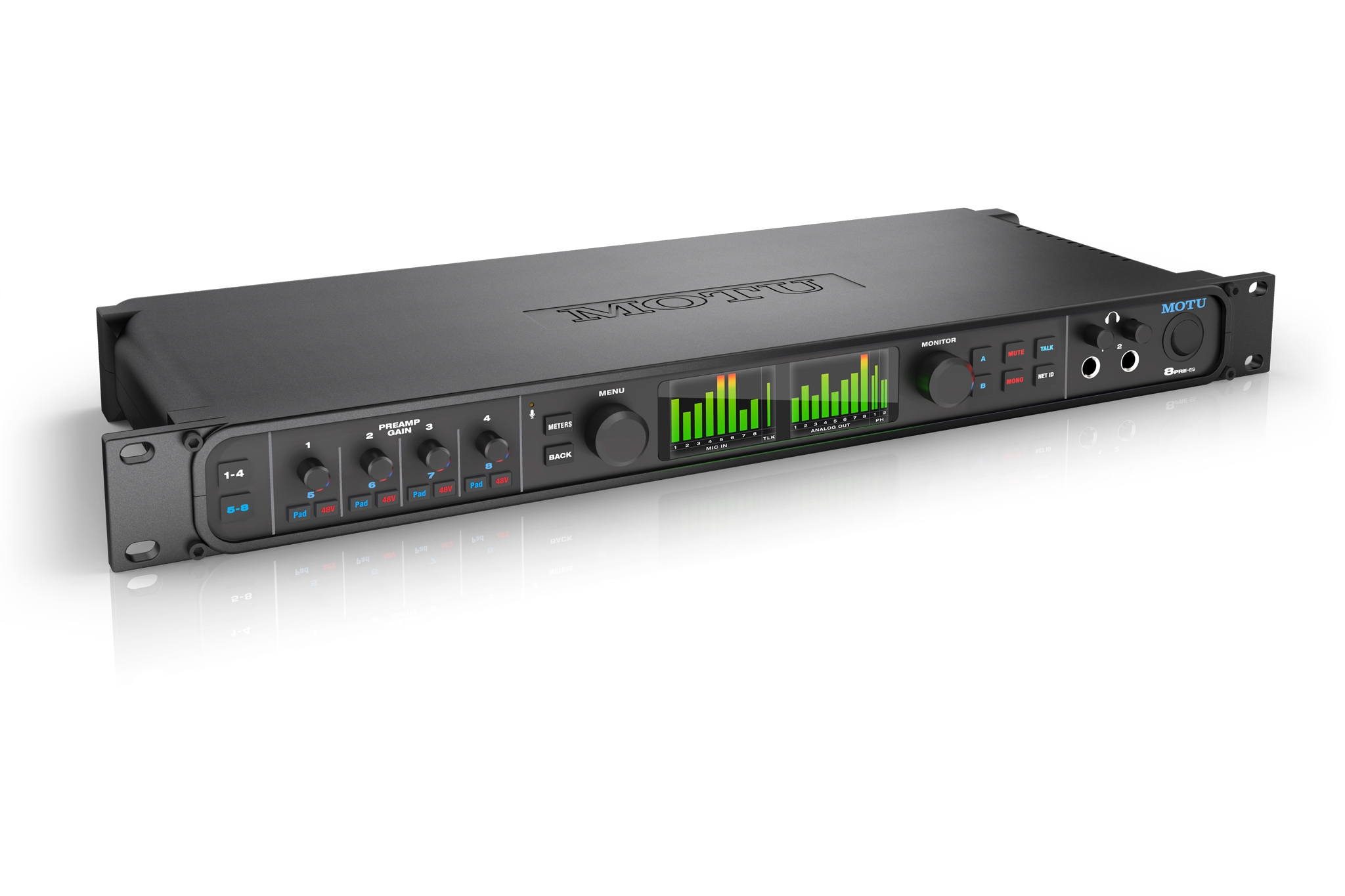

MOTU 8pre-es

52 simultaneous audio channels
24 inputs and 28 outputs, all independent
Connect all your studio gear, including microphones, guitars, synths, keyboards, drum machines, outboard processors and optical expanders. All I/O is available simultaneously.

Superb analog audio quality
Renowned ESS Sabre32 Ultra™ DAC technology
Renowned ESS Sabre32™ DAC technology delivers measured 123 dB dynamic range and the same proven, award-winning audio quality as MOTU's flagship 1248.

Redesigned mic channels
Cutting-edge components deliver ultra-transparent sound
Eight transparent mic preamps deliver superb -108 dB THD+N, 118 dB dynamic range and -129 dBu EIN performance. Each mic channel has individual preamp gain, pad, 48V phantom power and digital remote control.

High-performance Thunderbolt and USB drivers for Mac and PC
Ultra-low latency and renowned rock-solid performance
Round-trip latency (RTL) performance as low as 1.6 ms at 96kHz over Thunderbolt™ with high-performance DAW hosts.

Universal connectivity
USB and Thunderbolt for Mac, PC and iOS
Connect to your Mac or PC with Thunderbolt™ or Hi-speed USB 2.0, with up to 256 audio channels (128 in and 128 out) over Thunderbolt. Or stream dozens of audio channels to and from your Mac over AVB/TSN Ethernet using a standard, affordable CAT-5e cable up to 100 meters long. Class-compliant firmware and industry standard drivers work with any audio apps. Connect to your iPad™ with a standard camera connection kit (adapter).

Control room features
Take control of your recording sessions
Take control of your recording sessions with the built-in talkback mic and front-panel talk button. Connect two sets of speakers and check your mixes instantly with front-panel A/B speaker select buttons.

DSP mixing and effects
Console-style mixing with 48 channels and 12 busses
A full-fledged 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects including reverb, 4-band EQ, gate and compression. If you know your way around a large-format mixing console, you'll feel right at home. If you've ever wished to mix on a large console, the driver's seat is now yours.

Modeled vintage effects processing
Vintage processing with 32-bit float precision
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs. The 8pre-es DSP engine delivers virtually unlimited headroom and the utmost in sound quality.

Flexible matrix routing and splitting
Route your audio anywhere with one-click ease
Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the audio network.

Web app control from any device
Control everything from your laptop, tablet and smartphone
The software that you use to control the 8pre-es doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the 8pre-es on-board DSP, mixing, device settings, and network audio routing from your favorite web browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network. Use any web client on any platform - Mac, Windows, Linux, iOS, Android - as long as it shares the same network.

Touch Console
The art of the mix on your touchscreen
Designed specifically for touchscreen operation, Touch Console™ delivers a whole new mixing experience. Access Touch Console from your tablet or smartphone to effortlessly control the powerful 48-channel mixer and effects in the 8pre-es. With large targets for your fingers, multi-touch operation and intuitive design, you can tap, swipe and pinch your way to a perfect mix, every time.

Stand-alone operation with wireless control
No computer or laptop needed
Connect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.

Solid metal chassis
MOTU interfaces are built to last
Like all MOTU interfaces, the 8pre-es aluminum alloy chassis is lightweight, yet incredibly sturdy and durable, and designed to withstand the rigors of the studio, stage, and tour bus. In a world awash with cheap plastic, the solid feeling of the 8pre-es metal exterior in your hands is a reassuring reminder that you are holding quality engineering and construction.
