Sequential Prophet X

Features:

SAMPLE PLAYBACK

• 2 multi-sampled stereo instruments per voice with editable sample start, sample end, loop size, and loop center, loop on/off, sample reverse, sample stretch, bit-rate reduction, and sample rate reduction

• 150 GB of factory-installed 16-bit, 48 kHz sampled instruments created by 8Dio. An additional 50 GB of samples can be added by purchasing additional sound libraries. User-sample import is planned for December, 2018.

OSCILLATORS

• 2 digital oscillators per voice with selectable sine, sawtooth, pulse, and supersaw waves. You can vary the shape of any of the waveshapes.

• Glide (portamento): separate rates per oscillator; (samples can glide in Sample Stretch mode)

• Hard sync

FILTERS

• 2 x analog 4-pole resonant low-pass filter per voice

• Digital high-pass filter in Effects section

ENVELOPES

• 4 loopable, five-stage (ADSR plus delay) envelope generators: Filter, VCA, and two assignable

SEQUENCER

• Polyphonic step sequencer with up to 64 steps (6 notes per step), and ties and rests.

AMPLIFIER ENVELOPE

• Four-stage (ADSR) envelope generator

• Velocity modulation of envelope amount

LOW FREQUENCY OSCILLATORS

• 4 LFO’s with key sync, phase offset, and slewing per LFO

• Five wave shapes: triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)

MODULATION

• 16-slot modulation matrix

• 28 sources

• 88 destinations

• 11 additional dedicated sources: mod wheel, pressure, velocity, breath controller, footswitch, LFO 1, LFO 2, LFO 3, LFO 4, Env 3, Env 4

ARPEGGIATOR

• Fully-featured arpeggiator with up, down, up+down, random, assign modes

• Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note

• One, two, or three octave range

• Re-latching arpeggiation

• Note repeat

DIGITAL EFFECTS

• 2 digital effects on each layer

• Stereo delay, BBD delay, chorus, flanger, phaser, vintage rotating speaker, distortion, high-pass filter, spring reverb, plate reverb

CLOCK

• Master clock with tap tempo

• BPM control and display

• MIDI clock sync

PERFORMANCE CONTROLS

• Full-sized, semi-weighted, 5-octave keyboard with velocity and channel (mono) aftertouch

• Backlit pitch and mod wheels

• Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)

• Transpose controls for an 8-octave range

• Hold switch latches held notes on

• Polyphonic glide (portamento)

• Unison (monophonic) mode with configurable voice count

PATCH MEMORY

• 512 Factory Programs (4 banks of 128) and 512 fully editable User Programs with 2 layers (2 separate sounds) in each Program

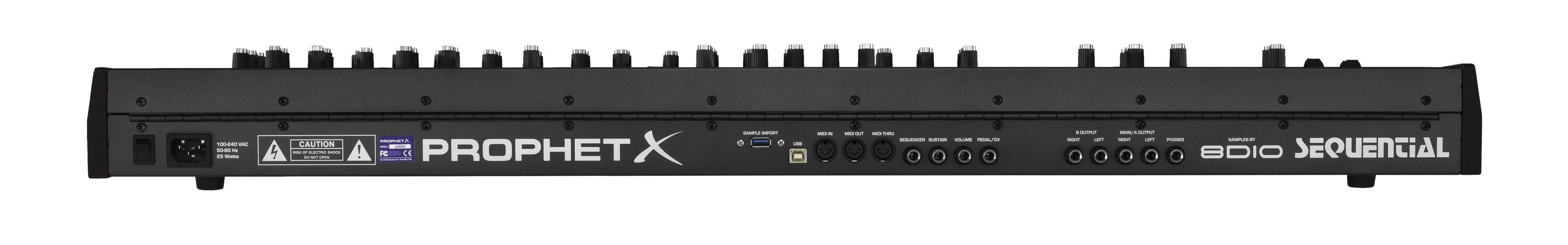

IN/OUT

• MIDI In, Out, Thru

• USB MIDI

• Sample import jack for USB Stick

• Main stereo audio output: 2 x 1/4″ phone (TS, unbalanced)

• Output B stereo audio output: 2 x 1/4″ phone (TS, unbalanced)

• Pedal/CV: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages.

• Volume: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages.

• Sustain pedal input: accepts normally on or normally off momentary footswitch.

• Sequencer: accepts normally on or normally off momentary footswitch to trigger sequencer playback.

• Headphone output: 1/4″ stereo phone jack.

POWER

• IEC AC power inlet for internal power supply

• Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz

• Power consumption: 25 watts maximum

PHYSICAL SPECS

• Dimensions: 38.44″ L x 13.53″ W x 4.13″ H (97.6 cm L x 34.3 cm W x 10.9 cm H)

• Weight: 24 lbs
