WesAudio CALYPSO
799,00 €*
% 859,00 €* (6.98% gespart)Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Hersteller:
WesAudio
Produktinformationen "WesAudio CALYPSO"

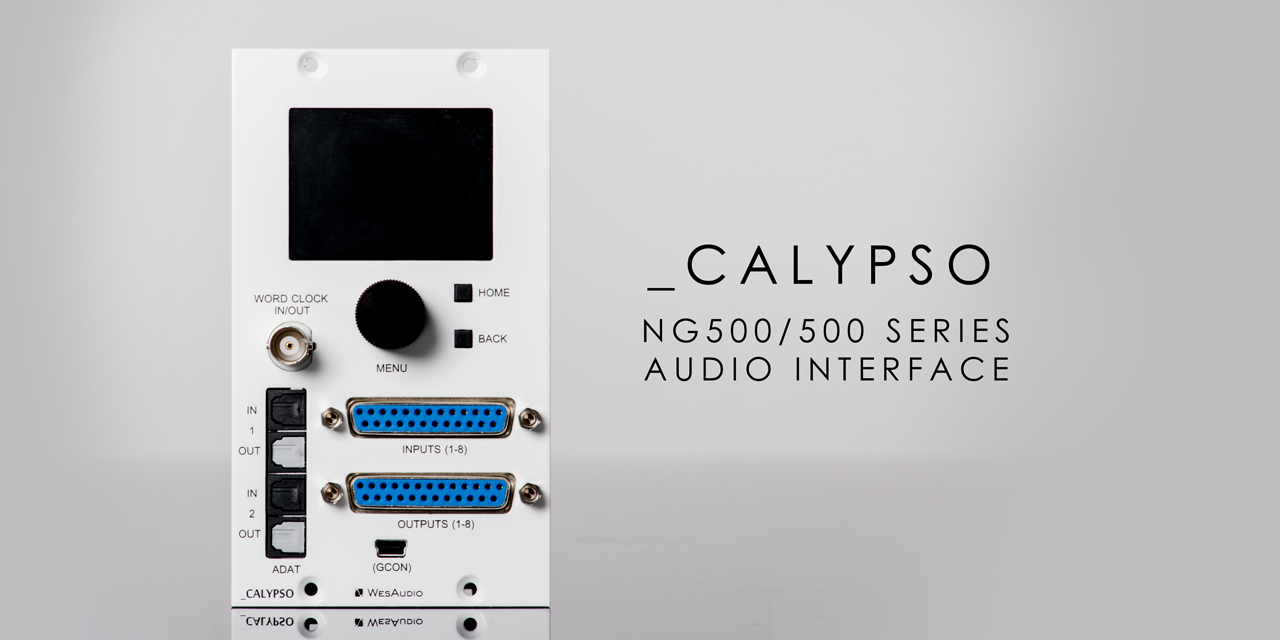

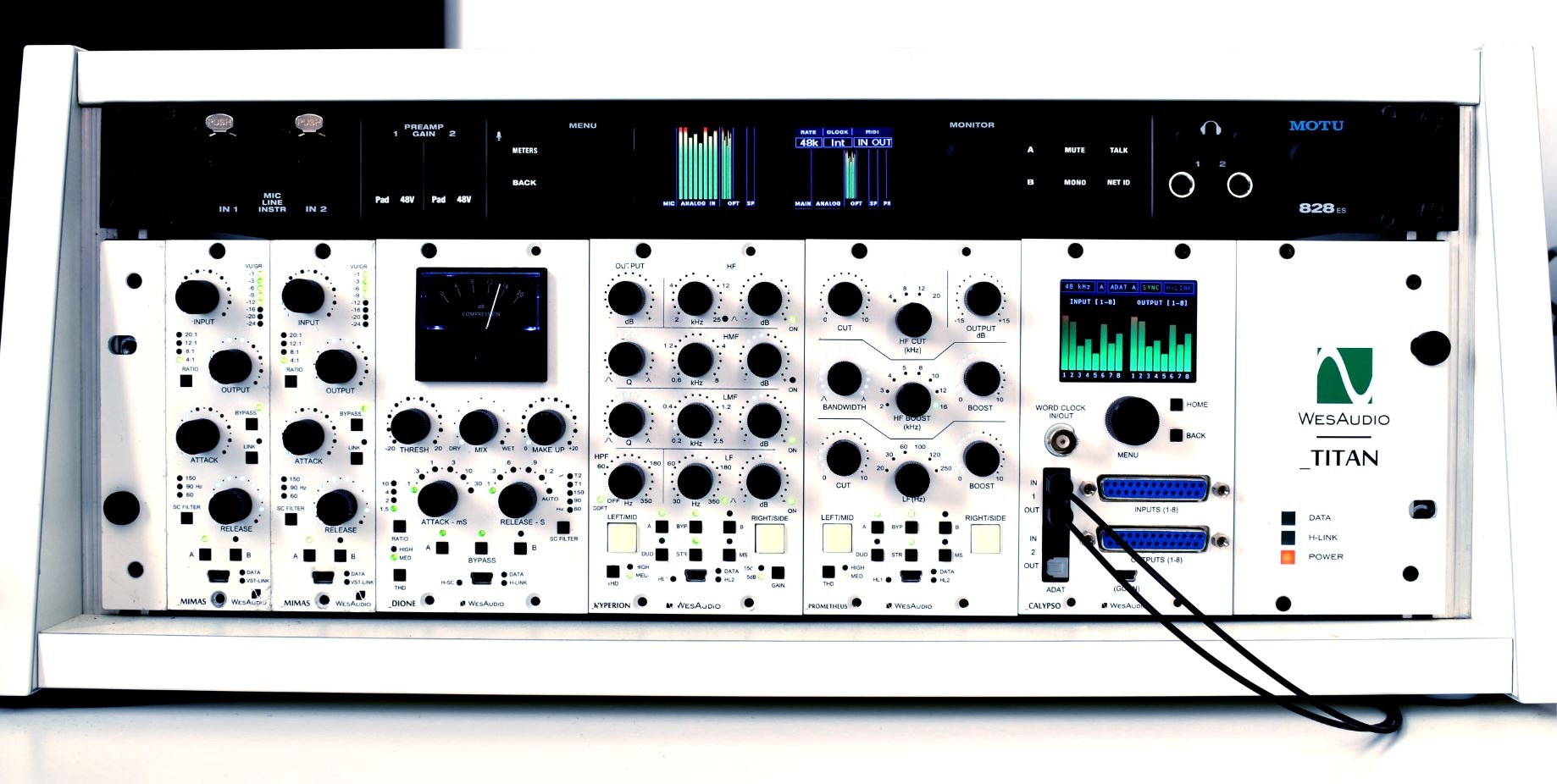

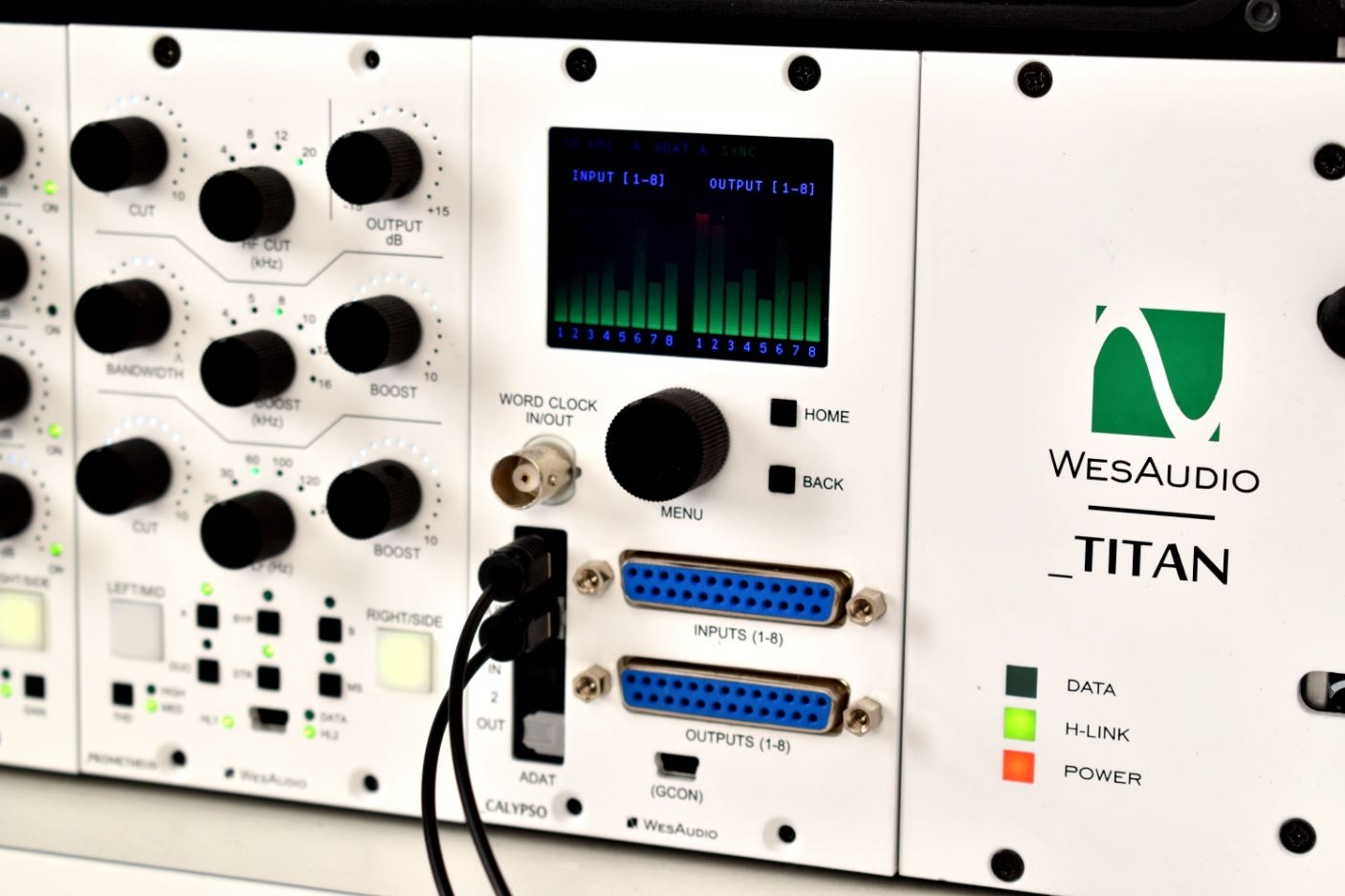

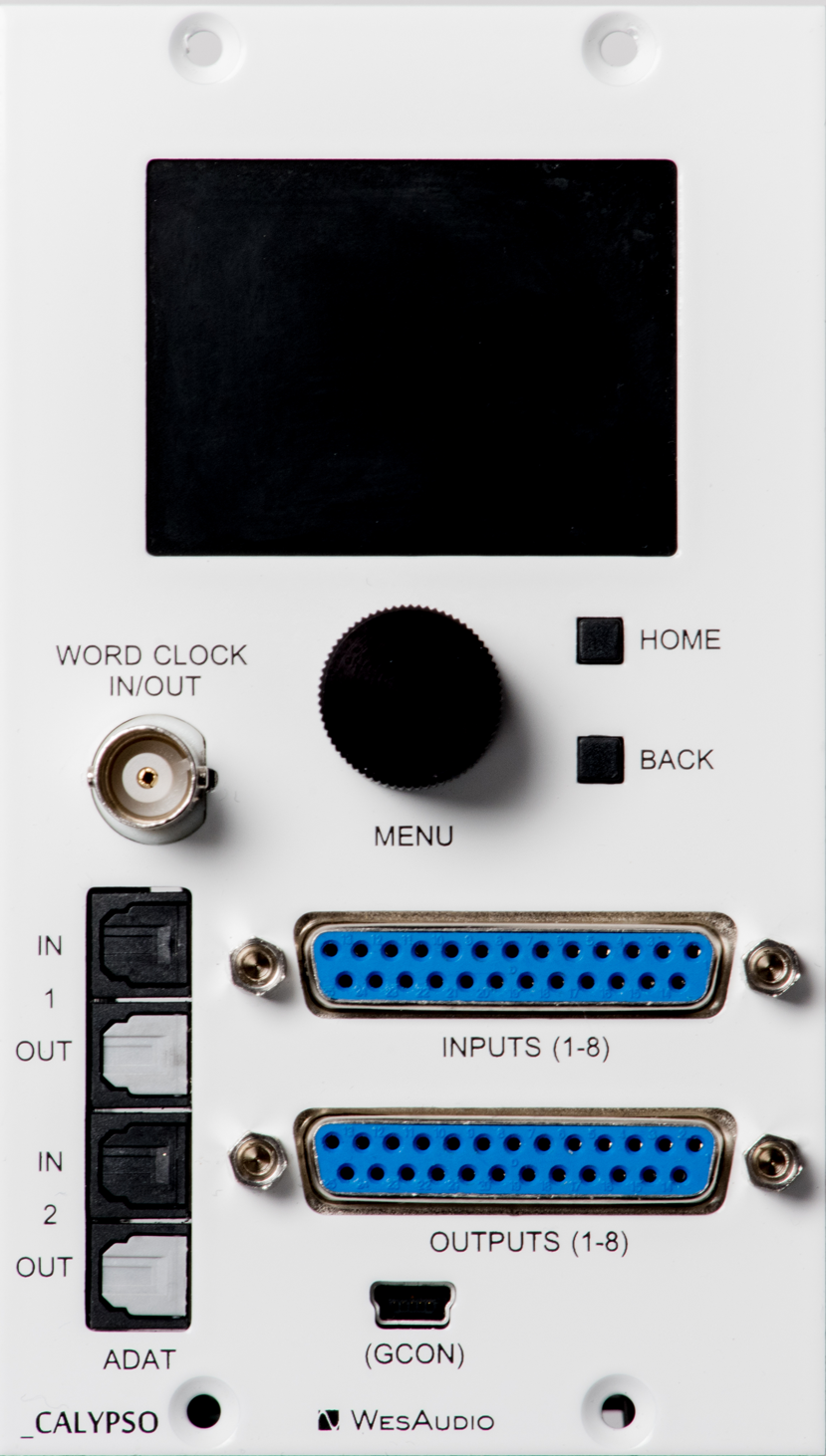

_CALYPSO is an audio interface designed to work in 500 series enclosure. It features state of art 8 channels of AD/DA conversion and perfectly integrates with ng500 chassis - _TITAN, through I.A.C. connector. Besides its very convenient integration with ng500 chassis, it still can be used in standard 500 series enclosure using two DB25 connectors.
Features summary:
- 24bit conversion
- Supported sample rates: 44.1kHz, 48kHz, 88.2kHz(SMUX), 96kHz(SMUX)
- Ultra low jitter clock
- Word clock IN/OUT

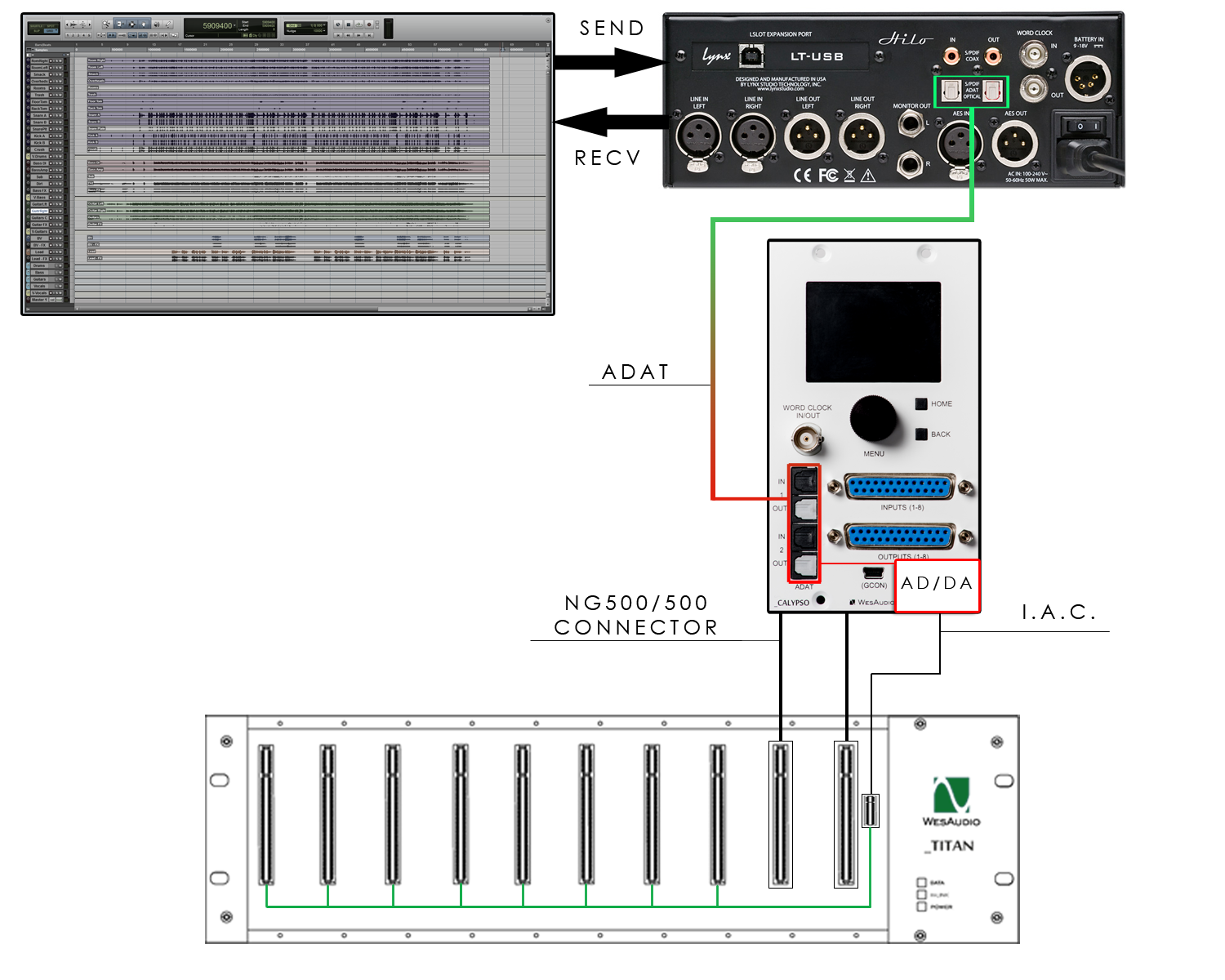

- Full integration with _TITAN via IAC connector (Just ADAT cables are need to route signal to, and from chassis)
- Two DB25 connectors allows integration with any 500 series chassis
- Two converter reference levels +4dBu/-10dBV
- LCD screen with channels metering
Specification:
Inputs:
- Impedance - 10K
- THD+N - 105dBFS
- Maximum level - +24dBu
- Freq. response - 20Hz-20kHzm +/- 0.1dB
- Connector type - DB25/IAC
Outputs:
- Impedance 100ohm
- THD+N - 103 dBFS
- Maximum level - +24dBu
- Freq. response - 20Hz-20kHzm +/- 0.1dB
- Connector type - DB25/IAC
