Neumann KU 100
€8,999.00

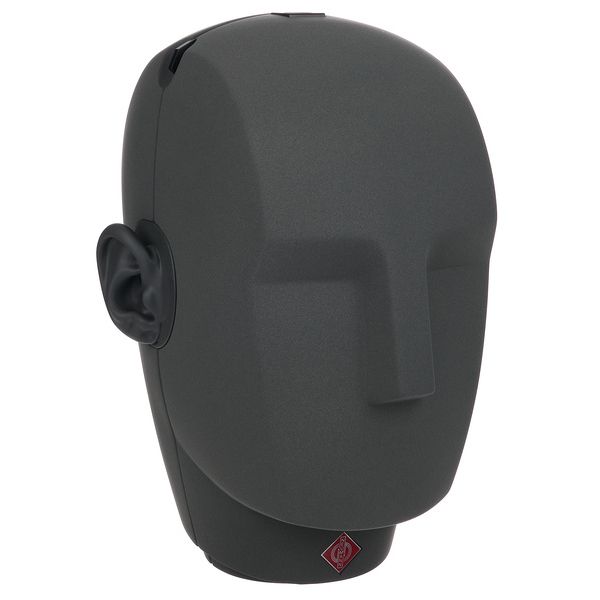

- Professional dummy head binaural stereo microphone

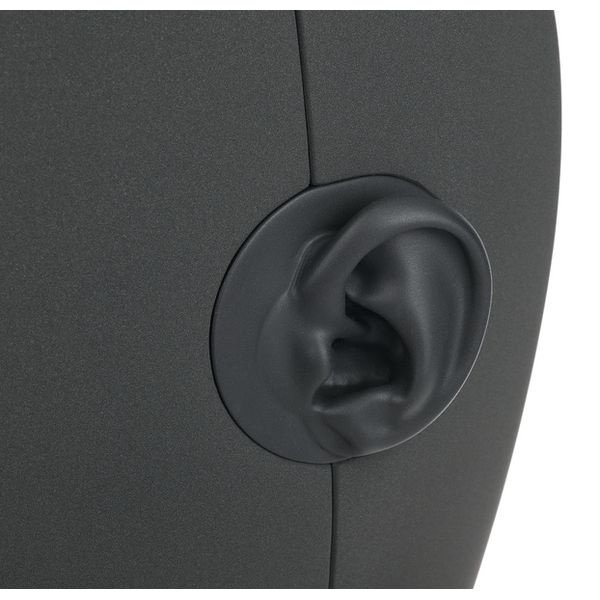

- Two omnidirectional condenser capsules positioned in artificial ears
- Immersive three-dimensional headphone reproduction
- Loudspeaker-compatible stereo recordings
- Natural sound with flat diffuse-field response
- Transformerless circuitry for low noise and distortion
- Maximum SPL up to 145 dB with preattenuation
- Switchable -10 dB pad

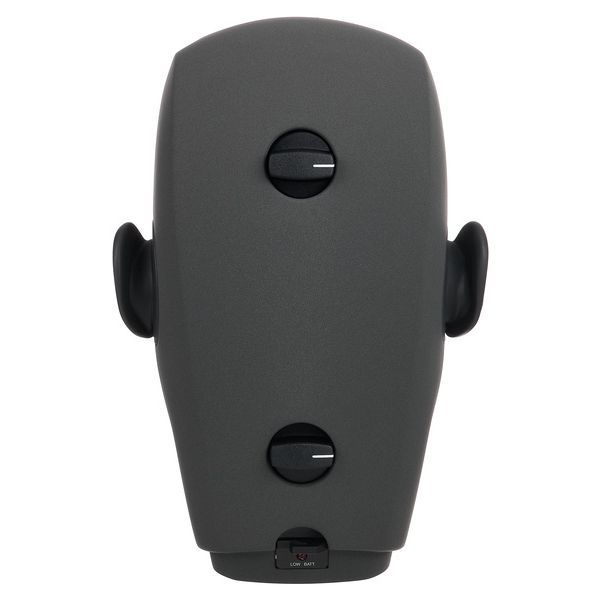

- Three low-cut settings: linear, 40 Hz and 150 Hz
- Balanced XLR 5 stereo output
- Unbalanced BNC outputs
- Phantom, battery or external PSU operation
- Suitable for music, audio drama, ambient and acoustic measurement applications
Product information "Neumann KU 100"

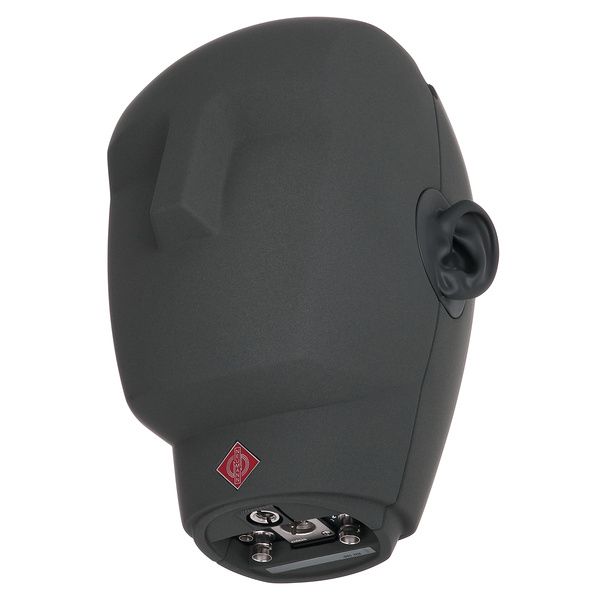

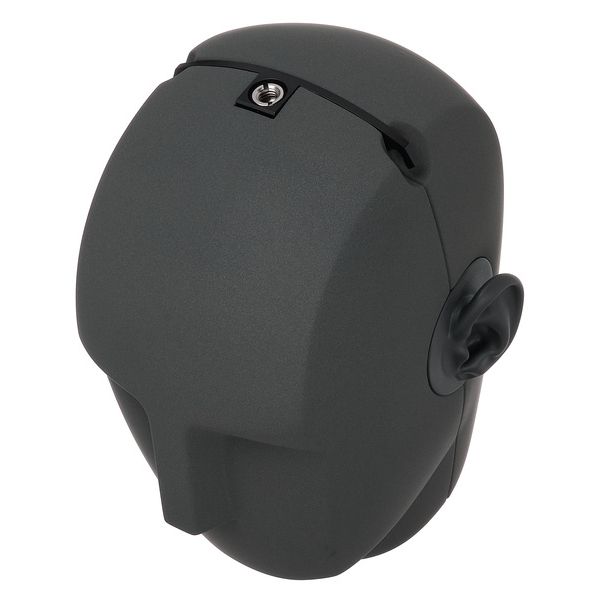

The Neumann KU 100 is a professional dummy head binaural stereo microphone designed to create highly realistic three-dimensional recordings for headphone playback. Two omnidirectional condenser capsules are positioned inside artificial ears, allowing recordings to capture spatial cues in a way that closely resembles natural human hearing. Despite using only two audio channels, the resulting sound image can provide convincing horizontal, vertical and depth localization.

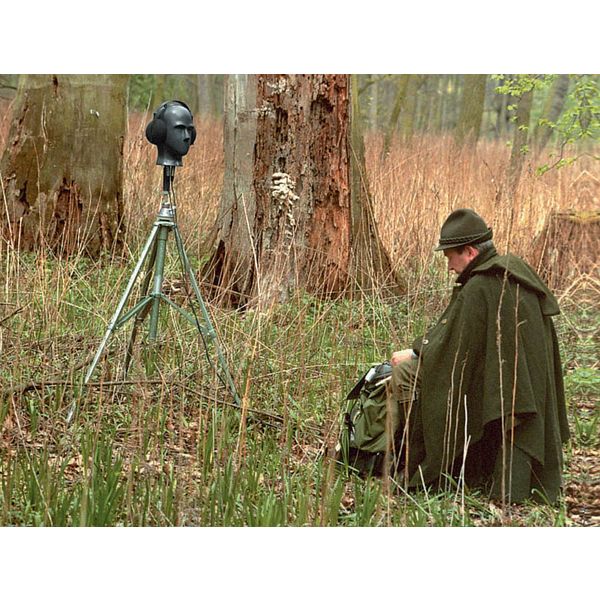

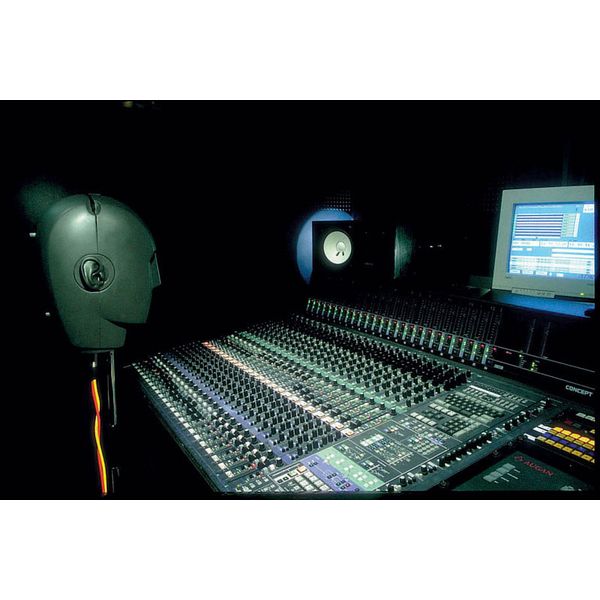

The KU 100 is suitable for immersive music recording, audio drama, classical productions, ambient recording and acoustic documentation. Its recordings are also compatible with loudspeaker playback, producing a conventional stereo image with enhanced spaciousness and depth.
Its transformerless electronics provide low noise and distortion while supporting sound pressure levels of up to 135 dB SPL, or 145 dB SPL with the -10 dB preattenuation activated. A three-position low-cut control offers linear, 40 Hz and 150 Hz settings, and both the pad and filter operate simultaneously on both channels.

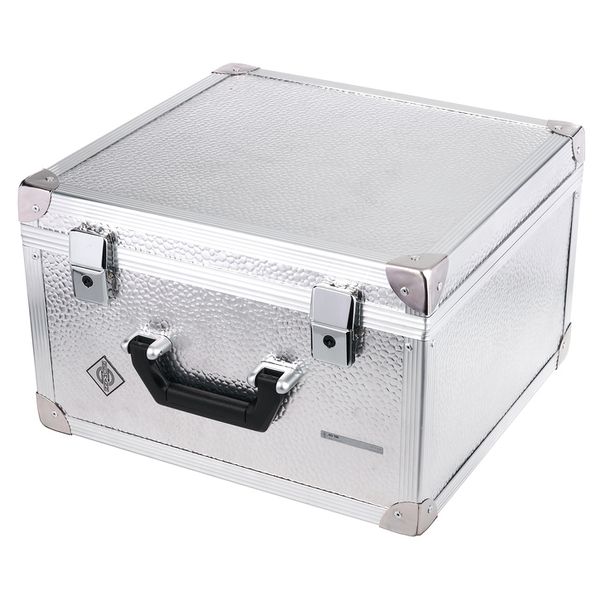

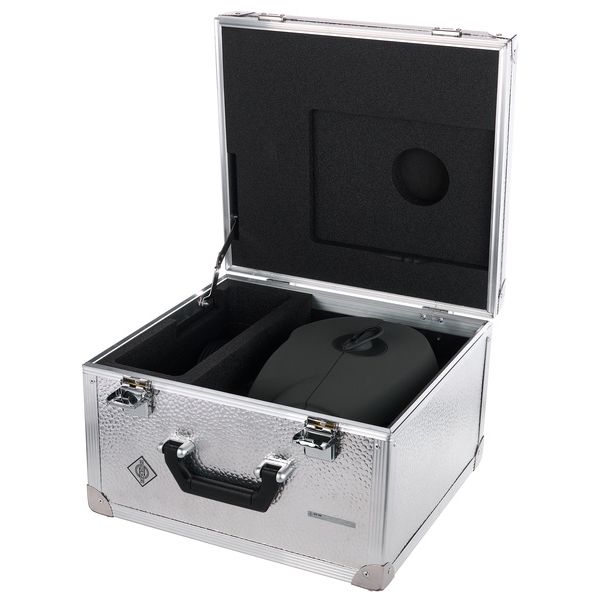

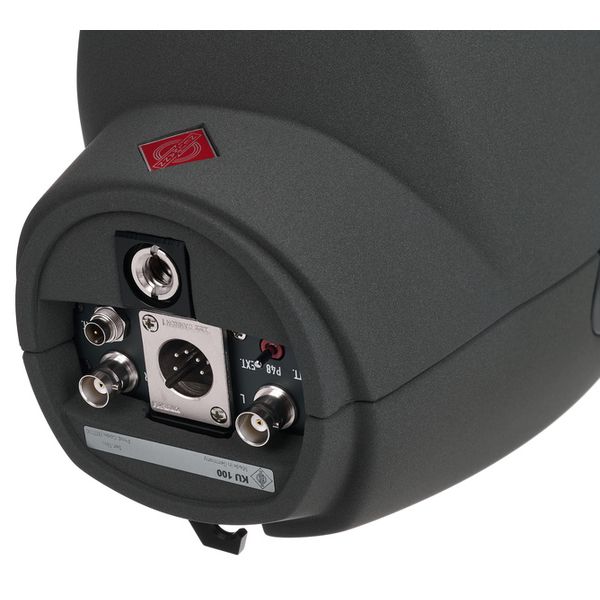

The KU 100 offers several powering options, including 48 V phantom power, internal AA batteries and the supplied external power supply. Audio output is available through a balanced XLR 5 stereo connection and unbalanced BNC outputs. The system is supplied with essential connection accessories and a protective aluminium case.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Neumann
Georg Neumann GmbH
Leipziger Str. 112 10117 Berlin
https://www.neumann.com
Sennheiser electronic SE & Co. KG
Am Labor 1 DE - 30900 Wedemark Deutschland
contact@sennheiser.com
- Product Type: Dummy Head Binaural Stereo Microphone
- Model: KU 100
- Colour: Black
- Article Number: 007130
- Acoustical Operating Principle: Pressure Transducer
- Directional Pattern: Ear / Binaural
- Capsules: 2 × Omnidirectional Condenser Capsules
- Frequency Range: 20 Hz – 20 kHz
- Sensitivity: 20 mV/Pa at 1 kHz into 1 kΩ
- Rated Impedance: 50 Ω Balanced / 200 Ω Unbalanced
- Rated Load Impedance: 1 kΩ
- Equivalent Noise Level (CCIR): 29 dB
- Equivalent Noise Level (A-Weighted): 16 dB-A
- Signal-to-Noise Ratio (CCIR): 65 dB
- Signal-to-Noise Ratio (A-Weighted): 78 dB
- Maximum SPL: 135 dB at 0.5% THD
- Maximum SPL with Preattenuation: 145 dB at 0.5% THD
- Preattenuation: -10 dB
- Low-Cut Settings: Linear, 40 Hz, 150 Hz
- Maximum Output Voltage: 8 dBu

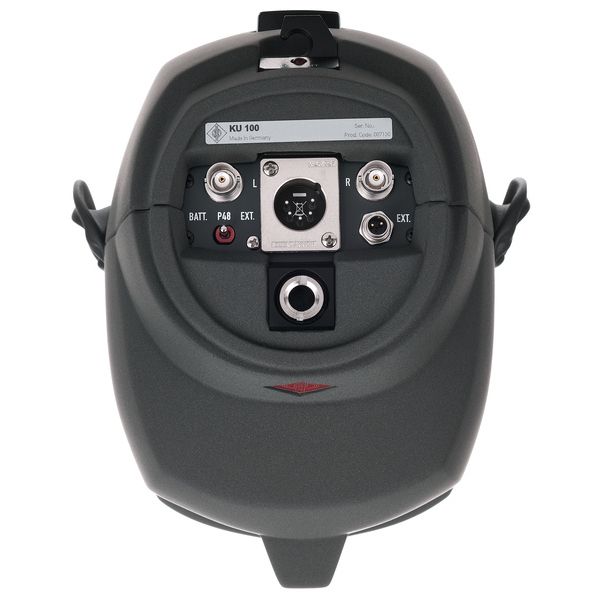

- Balanced Output: XLR 5 Stereo
- Unbalanced Outputs: BNC
- Phantom Power: 48 V ±4 V P48
- Current Consumption: 2 × 3.5 mA

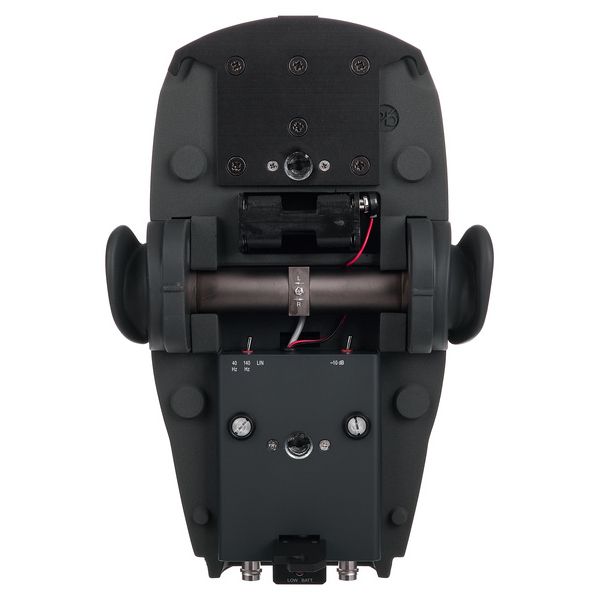

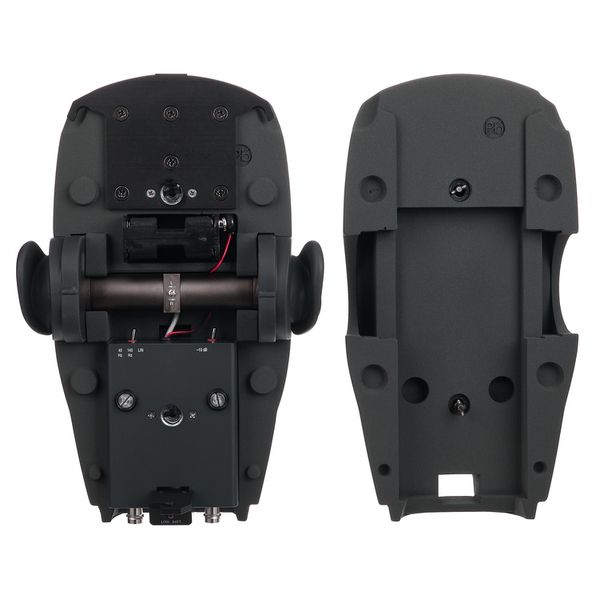

- Battery Supply: 6 × 1.5 V AA Batteries
- External Power Supply: 9 V, Included
- Weight without Batteries: Approx. 3.5 kg
- Weight with Carrying Case: Approx. 9.5 kg
- Dimensions (H × W × D): 280 × 180 × 220 mm
- Case Dimensions (H × W × D): 360 × 390 × 260 mm

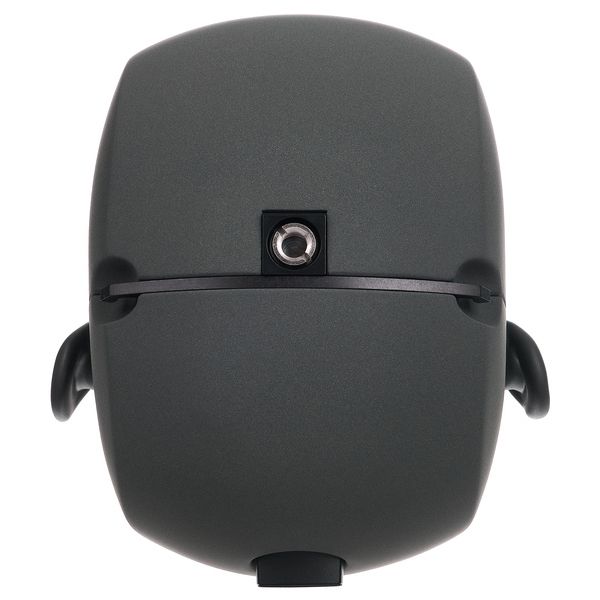

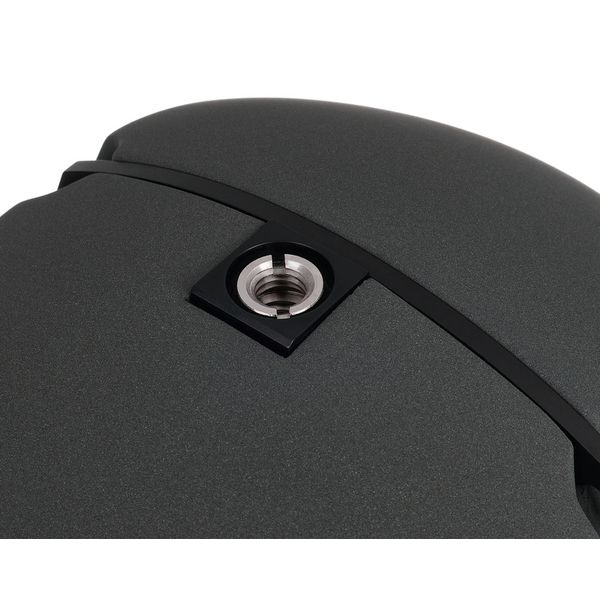

- Stand Mount: 5/8"-27 Female Thread with Adapters

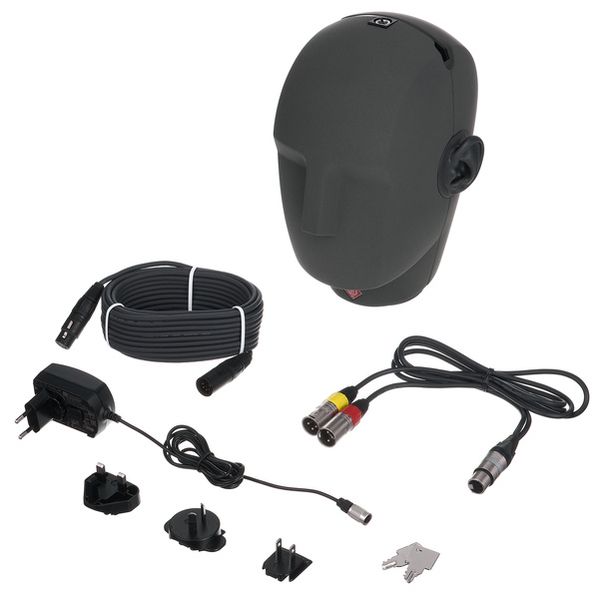

- Included: KU 100 Dummy Head, IC 5 Microphone Cable, AC 20 Adapter Cable, Plug-In Mains Unit, Aluminium Case
