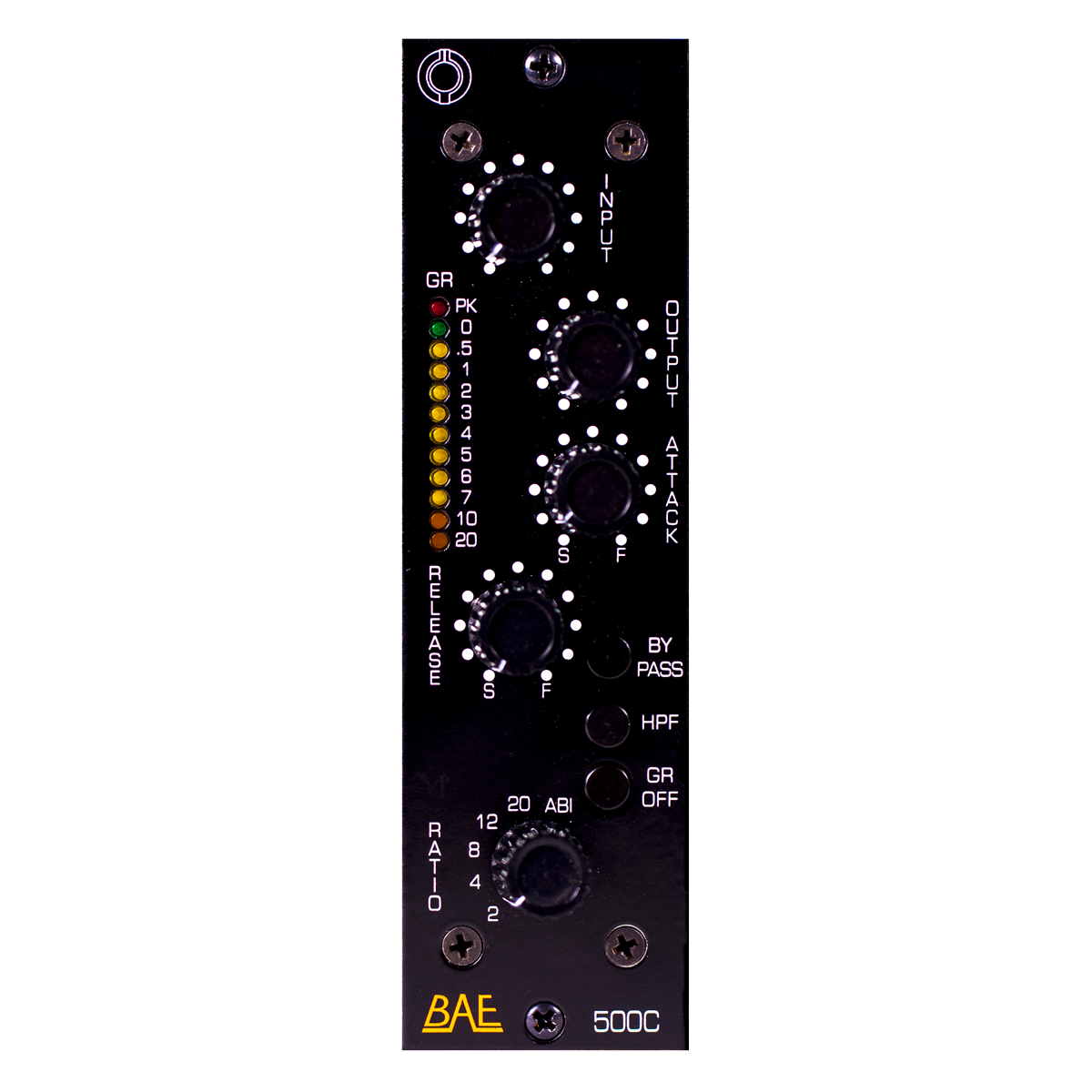

BAE Audio 500C
€1,509.00
Availability: Please contact us in urgent cases.
Product information "BAE Audio 500C"
Based on the design of studio staple FET compressors of the ’60s and ’70s heard on countless hit records, the 500C features controls for input and output gain, plus the four selectable, time-honored compression rations of 4:1, 8:1, 12:1, and 20:1.
In addition to taming peaks, its premium components and classic circuit design add highly desireable analog warmth to your signal, making it an all-star for everything from drums to bass to vocals. Like all BAE Audio gear, the 500C is hand-wired in California to ensure the highest possible quality control.
- FET gain reduction
- Three 2520 style opamps
- Transformer coupled output
- Feedback style peak limiter
- SC HPF
- Hard bypass
- Gain Reduction on/off
- Comp ratios: 2:1, 4:1, 8:1, 12:1, 20:1, ABI
- ABI All Buttons In
- Fully enclosed
- High quality components throughout
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
BAE
BAE Audio
7421 Laurel Canyon Blvd, North Hollywood, CA 91605
https://www.baeaudio.com/
Max Input Before Clip:
+27dBu
Noise:
-82dB (+4dBu input, 1KHz, A-weighted, GR off)
THD+N:
0.15% (+4dBu input, 1KHz, A-weighted, GR off)
Frequency Response:
+0.3dB / -0dB (10-22KHz)
SC HPF:
6dB/octave @ 125Hz
Current Draw:
Approx 120mA/Rail
