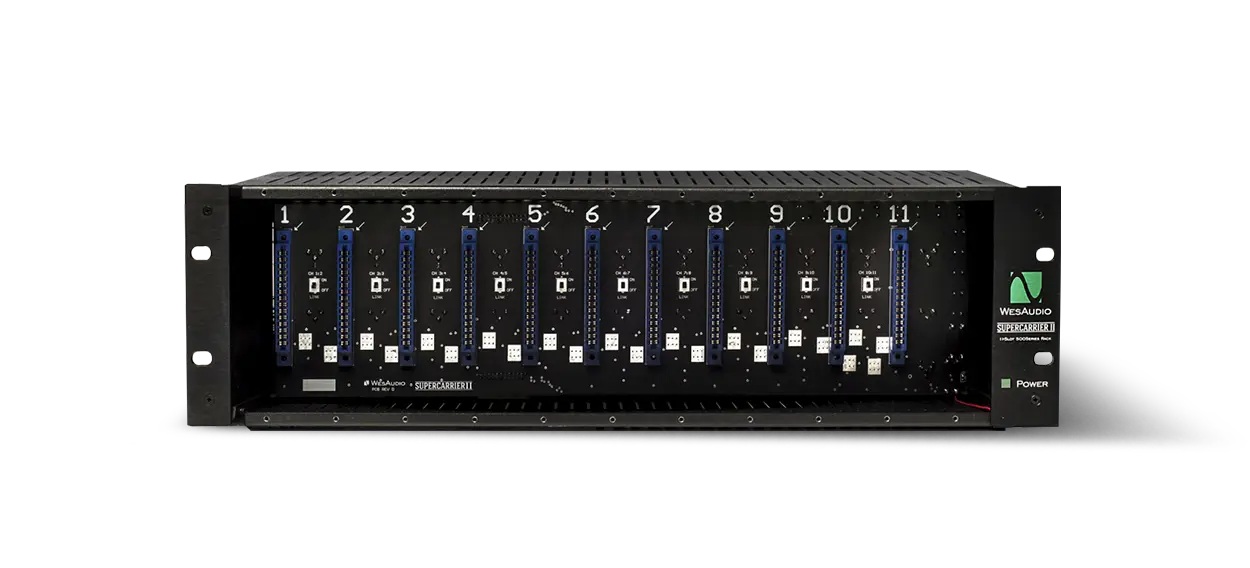

WesAudio Supercarrier II (B-Ware)
€799.00
Availability: Please contact us in urgent cases.
- High-capacity 11-slot chassis fully compatible with the API 500-series standard for maximum flexibility.
- Each slot has its own dedicated linear power supply, ensuring complete isolation and interference-free operation.
- Tantalum capacitors per slot clean the entire frequency spectrum and minimize noise, pops, and clicks.
- Robust 100W toroidal external PSU delivering up to 5A—ideal for power-hungry and double-width modules.
- XLR I/O per slot, DB25 for the first 8 channels, plus internal stereo link switches for easy routing.
Product information "WesAudio Supercarrier II (B-Ware)"
Supercarrier II is a second generation of our very popular Supercarrier I – 500 series standardized chassis. It features 11 slots with innovative ISP technology.
ISP – Independent Slot Power – is a solution which makes a huge breakthrough in 500 series powering system, it allows best accommodation for even most demanding 500 series modules. So what it is all about ? The answer is very simple – based on the ISP technology, each slot is individually supplied with linear power, causing each module to work in totally isolated, and independent way. To say it simple, it is like each of 11 modules would work in separate 500 series frames, what makes it ideal environment for your beloved hardware – without any interference, noise, pops or clicks. To separate each slot even more, we introduced a tantalum caps for each slot to clean the whole frequency spectrum from any other unwanted noise. The chassis itself, is powered by big 100W toroid external supply.
Features:
- 11 slots
- ISP (Independent Slot Power) technology
- Tantalum caps on each slot
- XLR sockets in/out for each slot
- DB-25 socket for first 8 slots
- Internal stereo link switches
- Linear power supply capable to deliver 5A of power
- Power mode switch – 115V/230V
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
WesAudio
Wes Audio Sp. z o.o.
Zegadlowicza 54 PL-71-370 Szczecin Poland
info@wesaudio.com
General
- Type: 500-series rackmount chassis (2nd generation)
- Slots: 11 × 500-series module slots
- Format: 3U rackmount
- Compatibility: Fully compatible with API 500-series standard
Power System
- Technology: ISP (Independent Slot Power) – each slot has its own linear power supply
- Power Supply: External toroidal PSU
- Max Current: Up to 5A
- Power Rating: 100W
- Voltage: Switchable 115V / 230V

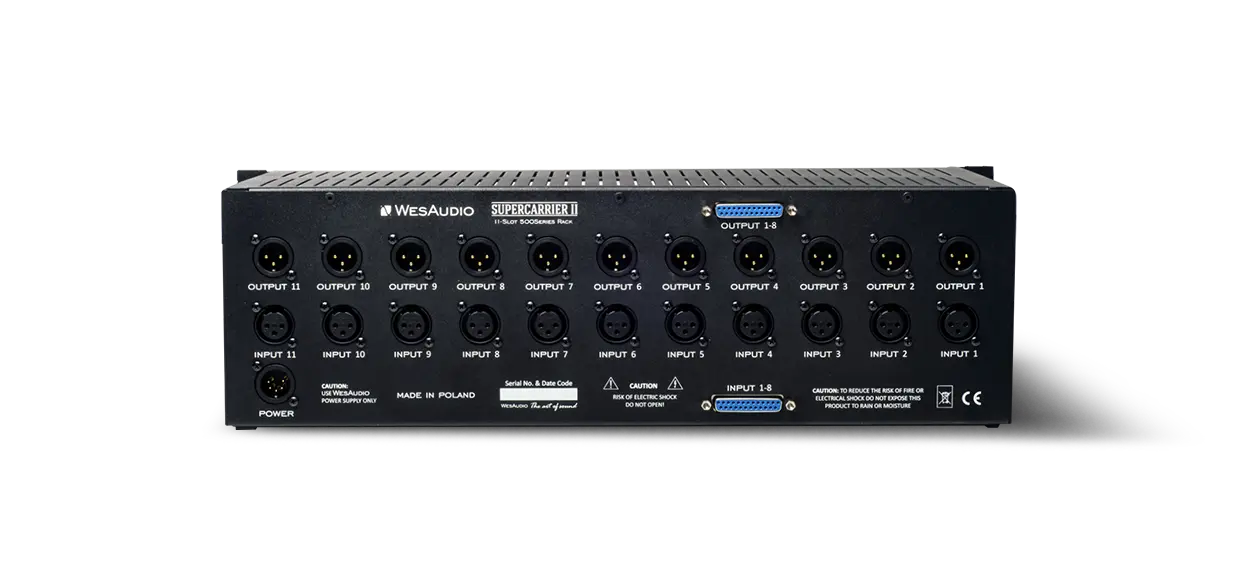

Connectivity
- Inputs: 11 × XLR
- Outputs: 11 × XLR
- Multipin: DB-25 connectors (first 8 slots)
- Stereo Link: Internal linking between slots
Signal Design
- Capacitors: High-quality tantalum capacitors per slot
- Isolation: Independent slot design reduces noise, crosstalk, and interference
Physical Specs
- Dimensions: approx. 135 × 483 × 182 mm
- Weight (Unit): approx. 3.7 kg
- Weight (PSU): approx. 1.7 kg
- Idle Power Consumption: approx. 5W
