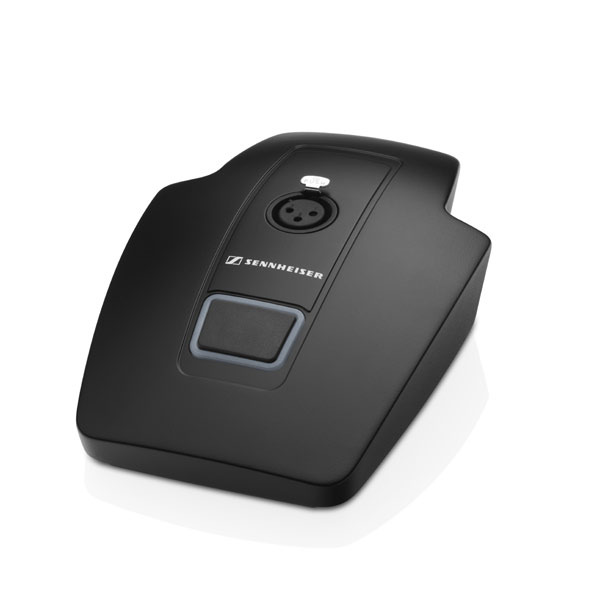

Sennheiser MAT 133-S B
€249.00
Availability: Please contact us in urgent cases.
Product information "Sennheiser MAT 133-S B"
Overview
The rugged housing of the functionally and unobtrusively designed MAT 133-S provides a solid ground for XLR-3 gooseneck microphones. A convenient microphone button is featured with a bi color light ring for clear visual feedback. The TTL-logic output serves for various control purposes such as camera control. The MAT 133-S is as versatile as it is to operate.
Features
-
Microphone modes:
Toggle on/off
Push to mute
Push to talk
permanent on (external LED control)
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Sennheiser
Am Sennheiser Haus 1
30900 Wedemark
Germany
info@sennheiser.com
www.sennheiser.com
Technical Data
| Dimensions | 120 x 170 x 43 mm (BTH / WDH) | |
|---|---|---|
| Connector | Mic in: XLR-3F | |
| Mic out: XLR-3M | ||
| Logic: clip contact for logic, Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal) | ||
| Weight | 1210 g | |
| Phantom powering | P 24 - P 48 | |
| Operating temperature | -10° - +50°C | |
| Current consumption | 3.7 mA | |
| Output voltage | Logic out: high level output voltage > 2.4 V, low level output voltage < 0.4 V | |
| Logic in: high level input voltage > 2.0 V, low level input voltage < 0.8 V | ||
| Colour | LED light ring: red / green | |
What's in the box?
- 1 table stand
- Quickguide
